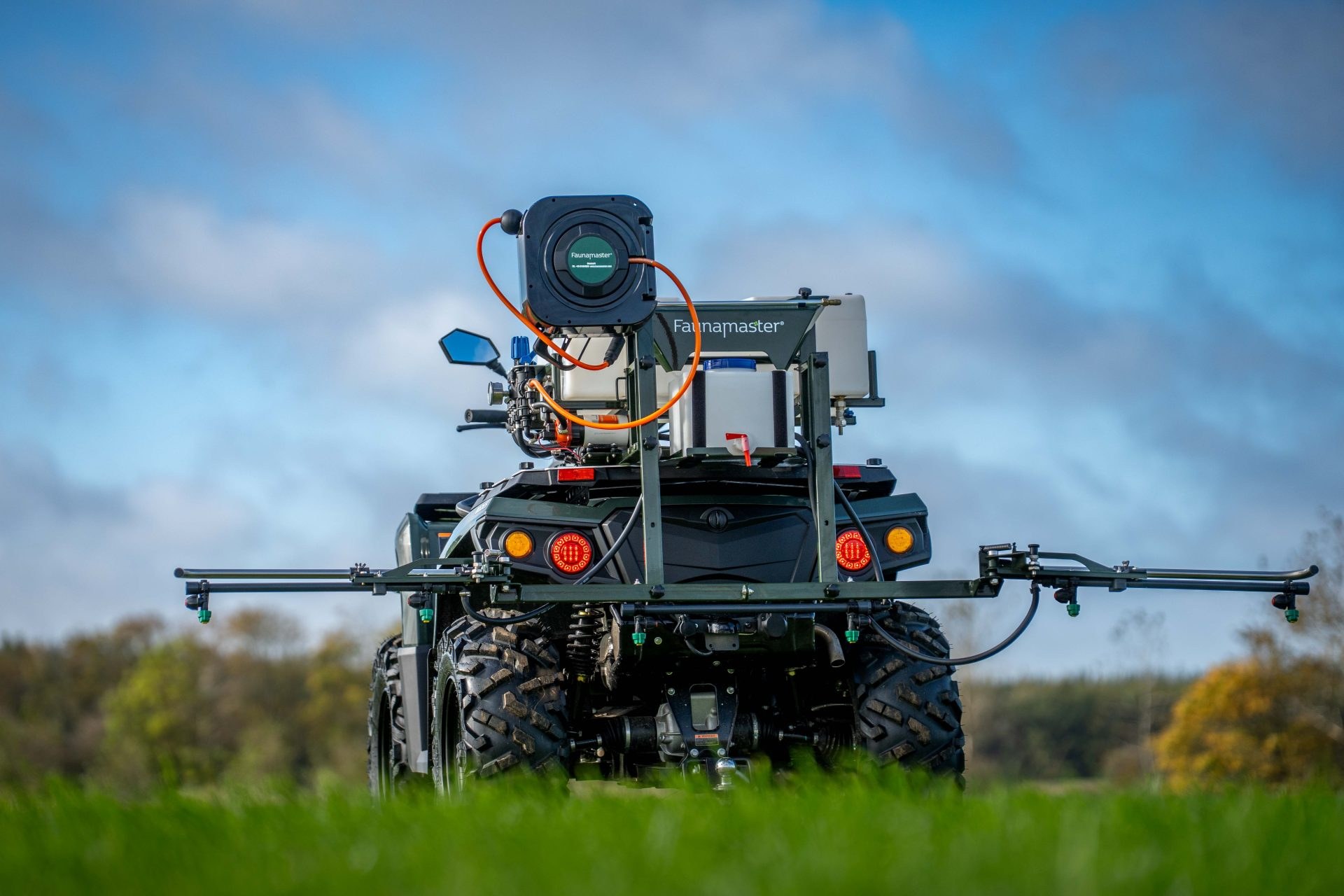

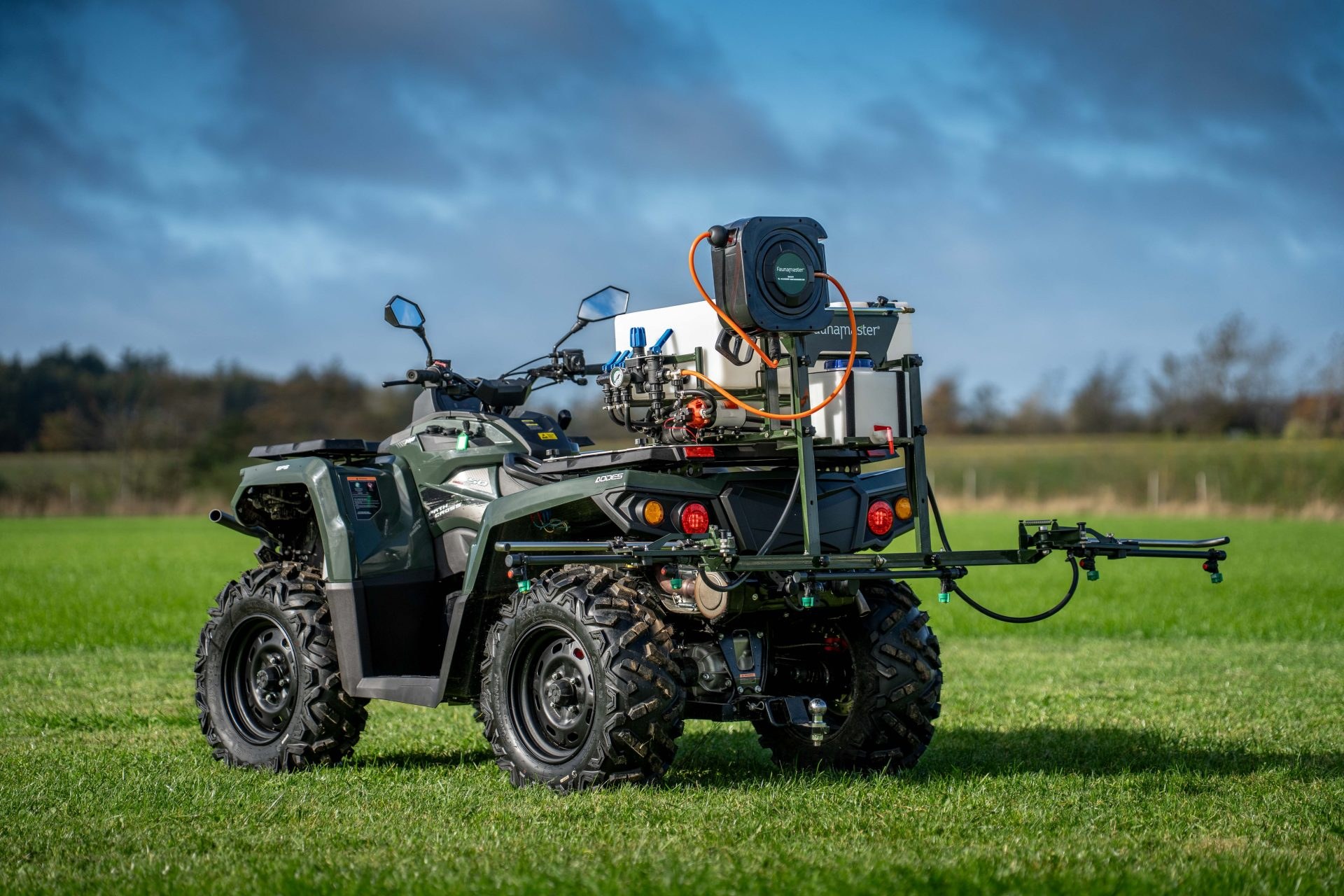

The Faunamaster Sprayer 70 is carefully designed for professional use on quad and UTVs. With an innovative and durable design, the sprayer ensures efficiency and longevity, even in demanding conditions. The spray boom is specially designed to resist damage by sliding off obstacles through a spring-loaded system, reducing the risk of damage to both the sprayer and its surroundings.

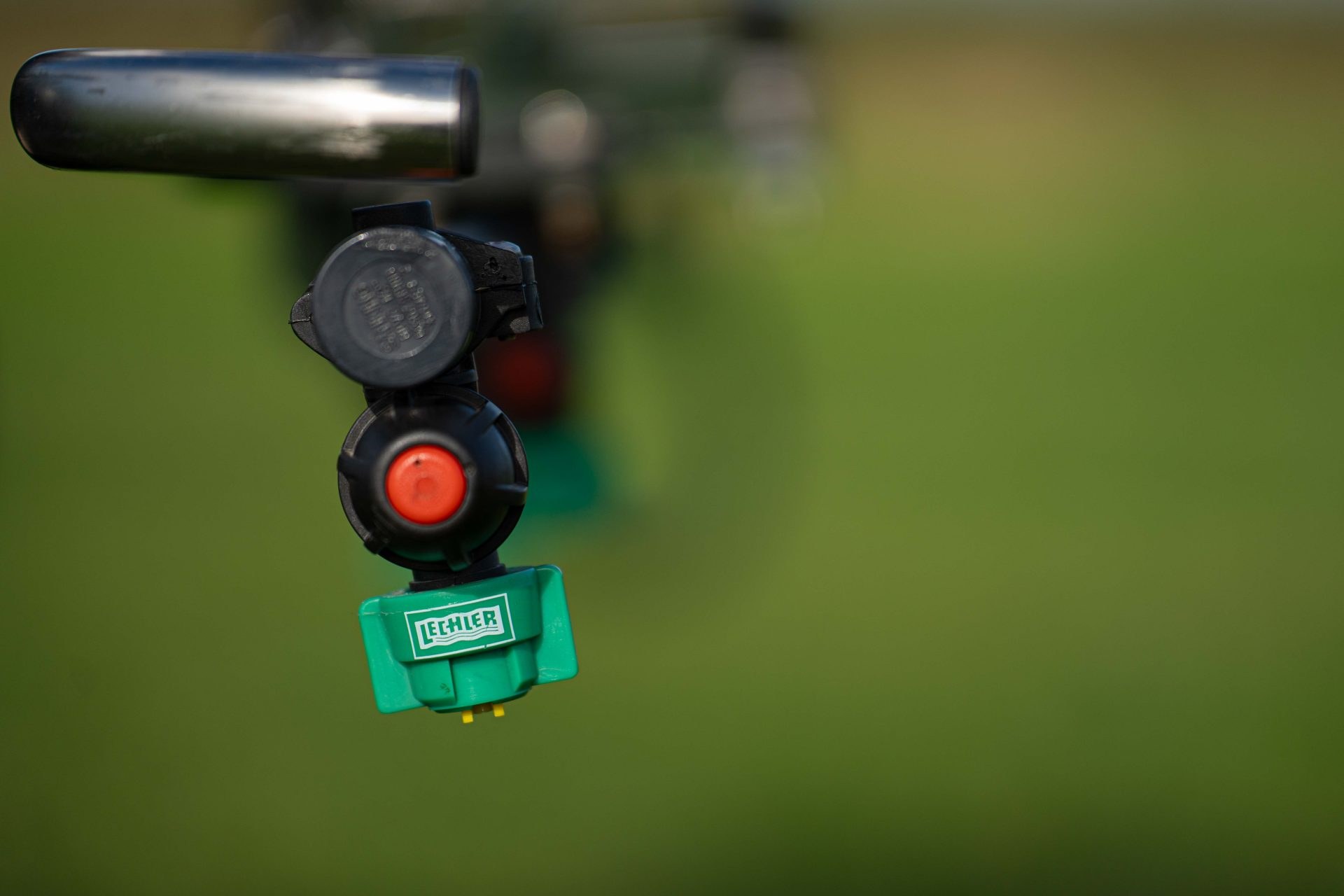

High quality components: Equipped with precision spray nozzles from Lechler, Germany, this sprayer delivers optimal performance. The boom can be adjusted in height as needed and folds for easy transportation.
Efficient mixing function: A built-in mixing function in the tank ensures constant and uniform mixing of the spray liquid during use.
The Faunamaster Sprayer 70 comes complete, with no need for additional purchases or hidden costs. Delivered in a box, as a customer you only need to assemble the main elements before you are ready to use the sprayer; typically the assembly time will be 30 minutes.
- Spring-loaded boom slides off obstacles to reduce damage to the sprayer and its surroundings
- Lechler (Germany) precision nozzles; height-adjustable boom that folds for transport
- Built-in tank mixing keeps the spray liquid uniform

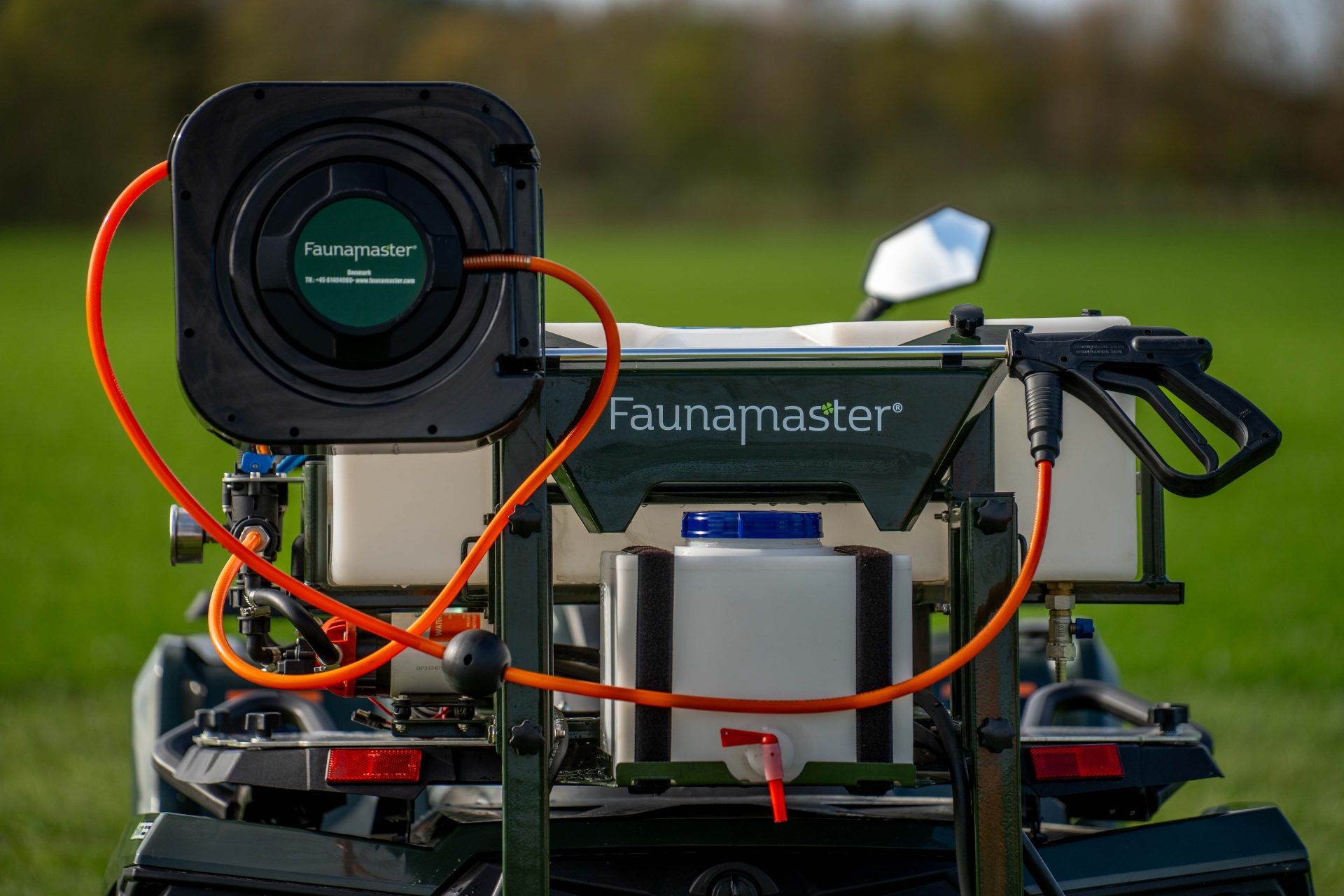

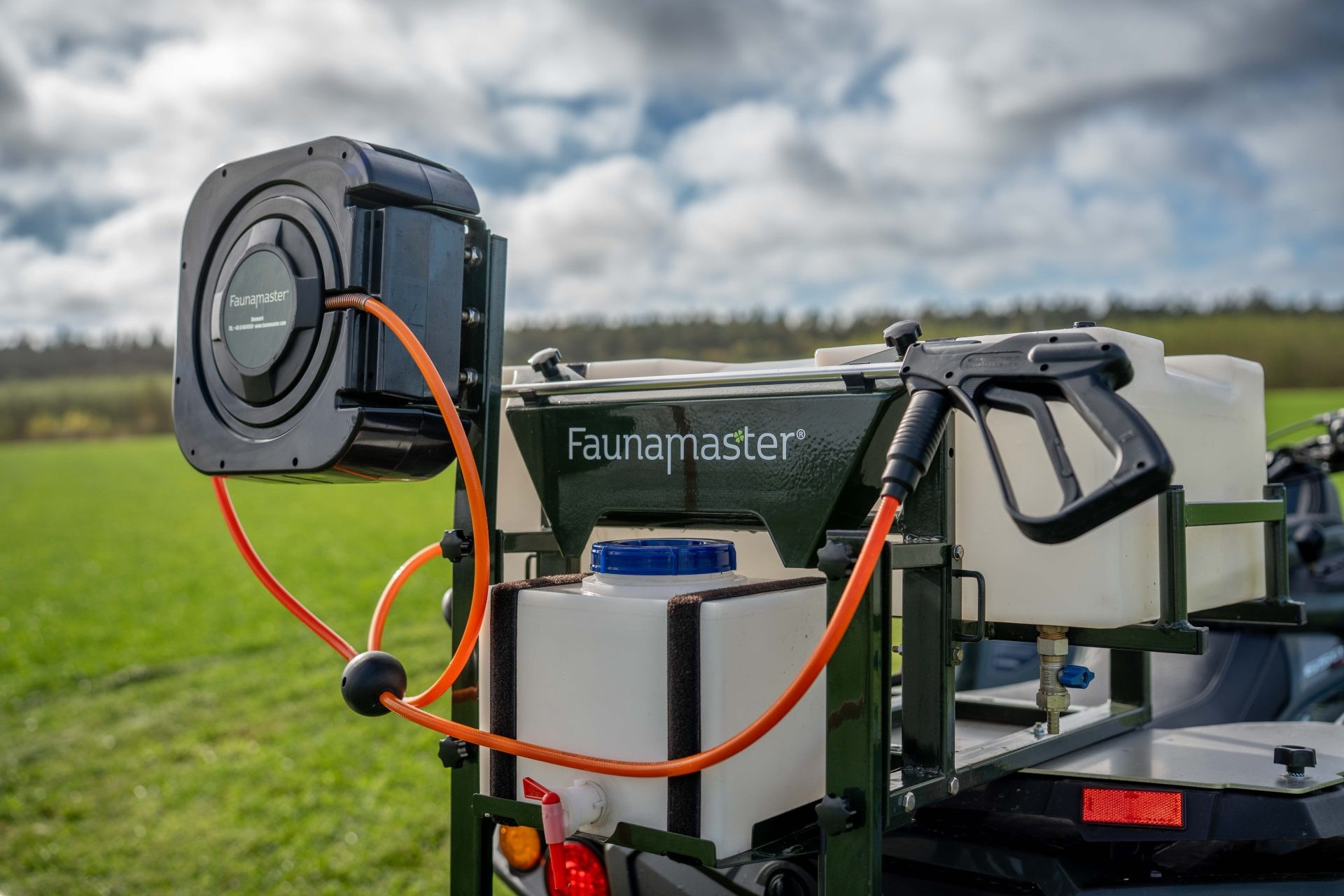

- 10 m (33 ft) hose reel with spray lance, plus a 10 L (2.6 gal) clean-water tank for hand washing
- Comes complete; assembly typically takes about 30 minutes
| Product Family | Faunamaster Sprayer |
| Model | Faunamaster Sprayer 70 – ATV/UTV Boom Sprayer, 70 L / 18.5 gal (FM70) |
| Part Number | FM70 |
| Spray tank capacity | 70 L (18.5 US gal), polyethylene |
| Clean water tank | 10 L (2.6 gal), for hand washing |
| Spray boom / working width | 3 m (9.8 ft), 6 nozzles, 3 boom sections with separate section valves. Height is adjustable, and the boom folds and has a spring-loaded breakaway. |
| Nozzles | Lechler (Germany) precision nozzles, No. 2 flat-fan |
| Pump | 12 V on-demand pump, 6.0 A (12 A max); rated 120 PSI (8.3 bar), 17-160 PSI range; 1.8 GPM (7.0 L/min) |
| Hose reel | 10 m (33 ft) with spray lance/gun |
| Net weight | Around 42 kg (about 93 lb) |
| Package dimensions | 920 x 750 x 720 mm (36.2 x 29.5 x 28.3 in) |
| Mounting | Bolts onto the ATV/UTV |
| Vehicle requirement | ATV/UTV above 110cc; 12 V power supply |
| Filtration | Two-stage: pump inlet filter and nozzle filters |
| Max travel speed with sprayer (safety) | 5 mph |
