Our Grapple Buckets are very versatile attachments.They’re all great choices for anyone who owns a skidsteer. Available in a wide range of sizes, they easilypick up logs, rocks, left over building supplies or anyother type of debris. They can be used to smooth dirt while clearing and grabbing.

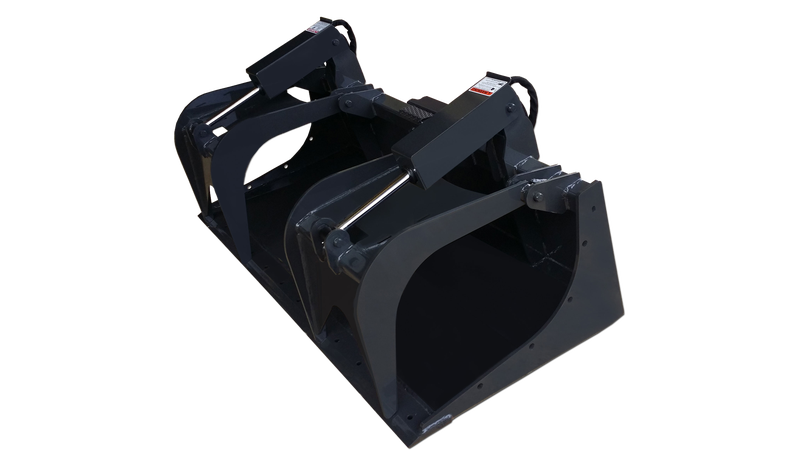

Our Grapple Buckets are very versatile attachments. They’re all great choices for anyone who owns a skid steer. Available in a wide range of sizes, they easily pick up logs, rocks, left over building supplies or any other type of debris. They can be used to smooth dirt while clearing and grabbing. All of our grapple buckets have 2" x 10" cylinders, with all hydraulic lines routed inside the tubing to prevent tears. They are also built with top quality steel, oversized points and bushings, with grease fittings at every pivot point. Every unit exceeds the lifting capacity of the skid steer machine it is attached to. Grapple Buckets Compact Tractor Grapple Bucket Specs Standard / Heavy Duty Grapple Bucket Specs
- 2" x 10" cylinder, rated at 4,000 PSI
- Grease fittings at every pivot point
- Optional weld on teeth and bolt on cylinder rod
- Optional bolt on edge (not pictured)
- Bolt on sides included on HD
- Compact Rated for up to 35 HP
- Standard Rated for up to 45 HP
- Heavy Duty Rated for up to 65 HP
The X-treme Grapple Bucket is ideal for picking up logs, rocks, left over building supplies or any other type of debris. It can handle more material and is intended for larger machines than our Heavy Duty Grapple Bucket. One feature that separates our X-treme Grapple Bucket from our competitor 's co mparable attachment is the enclosed hydraulic cylinder shaft. Most grapple buckets only have the actual cylinder enclosed and not the shaft. We protect both! Anyone that has had debris fall on the cylinder shaft knows what damage this can cause. It features two cylinders that operate independently to adjust for uneven loads. The hydraulic lines are routed inside the tubing to prevent tears. It is also built with top quality steel, oversized points and bushings, with grease fittings at every pivot point. The X-treme Grapple Bucket has a 1" x 8" cutting edge. Every unit exceeds the lifting capacity of the skid steer machine it is attached to. X-treme Grapple Bucket X-treme Grapple Bucket Specs * standard bolt on sides
- Cylinders: 2" x 10", independant operation, rated at
- Rated for 65+ HP
- 5/8" top tines
- Grease fittings at every pivot point
- Bucket has a 1" x 8" cutting edge
- Optional: Weld on T eeth, Bolt on Edge, Bolt on Sides
