Resources: Official Product Page | Faunamaster Catalog | Spec Sheet | FM130 Operator’s Manual
Advanced Adjustability: With the FM130, the cutting height can be easily adjusted directly from the ATV using the included remote control. This provides great flexibility in different terrains. The tailgate can also be opened, which is ideal for working on dense surfaces where quick removal of grass clippings is required.
Choice of Impactor: The FM130 is offered with either a hammer impactor or Y impactor. Hammer flails are versatile for all-round use, where the grass being mowed may contain small branches, willow, or reeds, or corn stalks that need to be mowed down. Y flails are particularly effective for grassy areas, where the speed of mowing can be increased with Y flails; however, they are not as hardy as hammer flails, so it is important to clarify which tasks you need to solve.
- Cutting height, tailgate opening and engine stop are all controlled from the ATV with the included remote
- Heavy 120 mm (4.7") hammer shaft
- Two-layer body construction to protect against stone damage
- Hammer flails come standard, with Y-flails as an option
- Its own Honda GX690 22.1 hp V-twin engine and a 21 L (5.5 gal) fuel tank (about 6 hours of work)
| Product Family | Faunamaster Flail Mower |

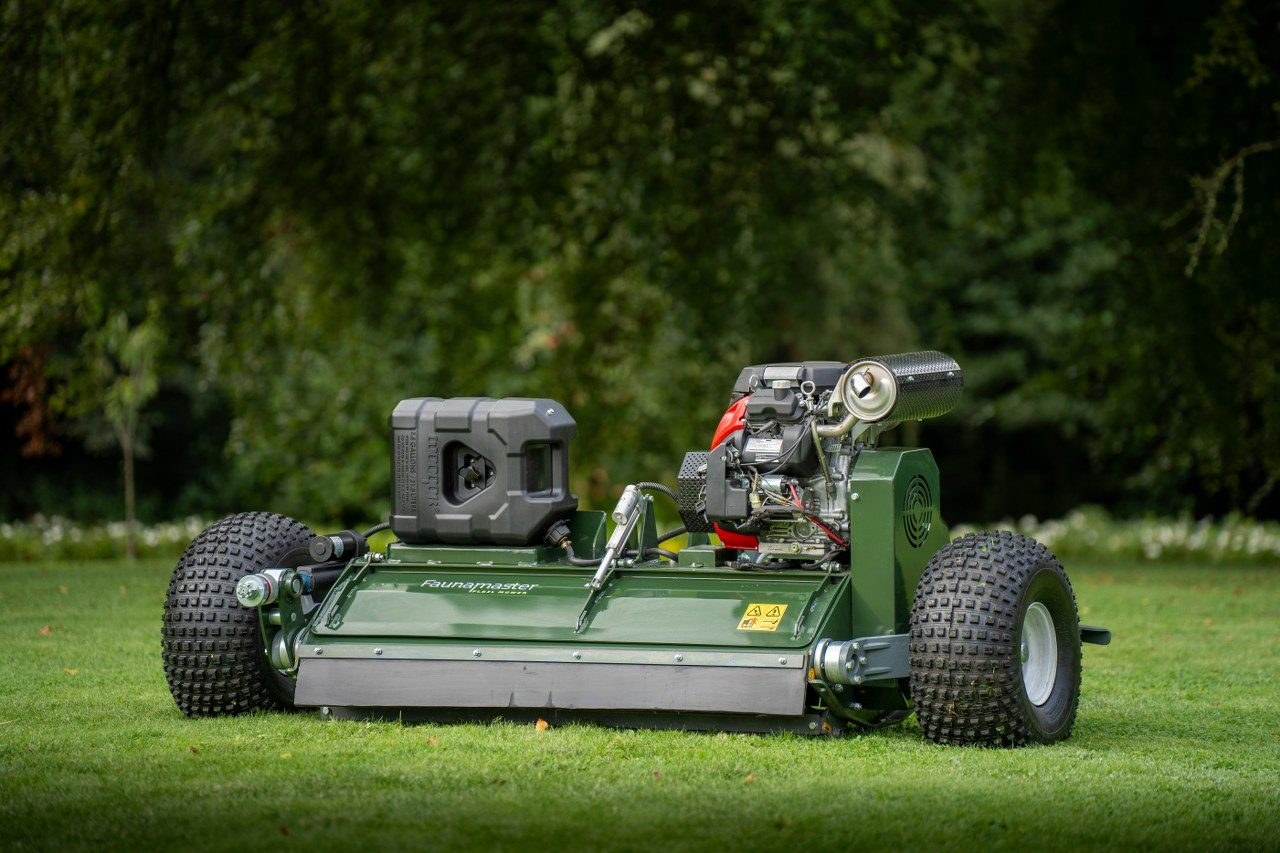

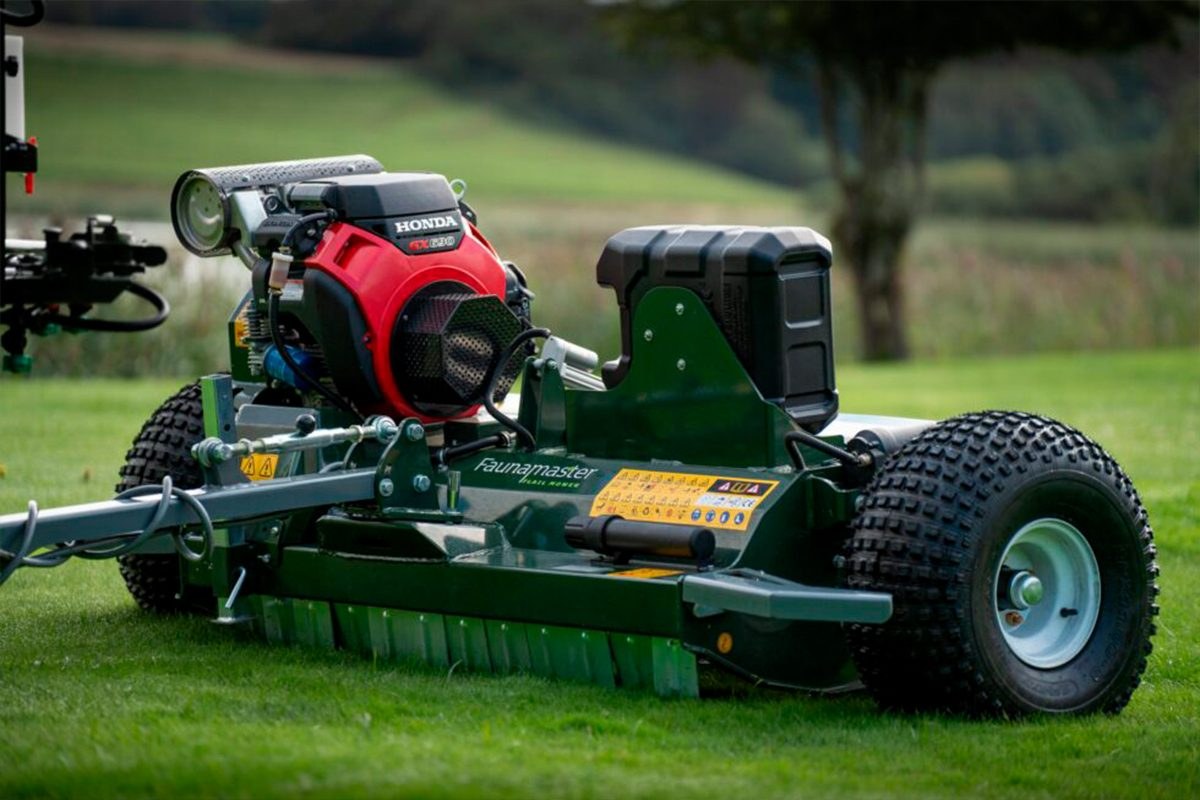

| Model | Faunamaster FM130 ATV/UTV Flail Mower – Honda GX690 Engine |
| Part Number | FM130 |

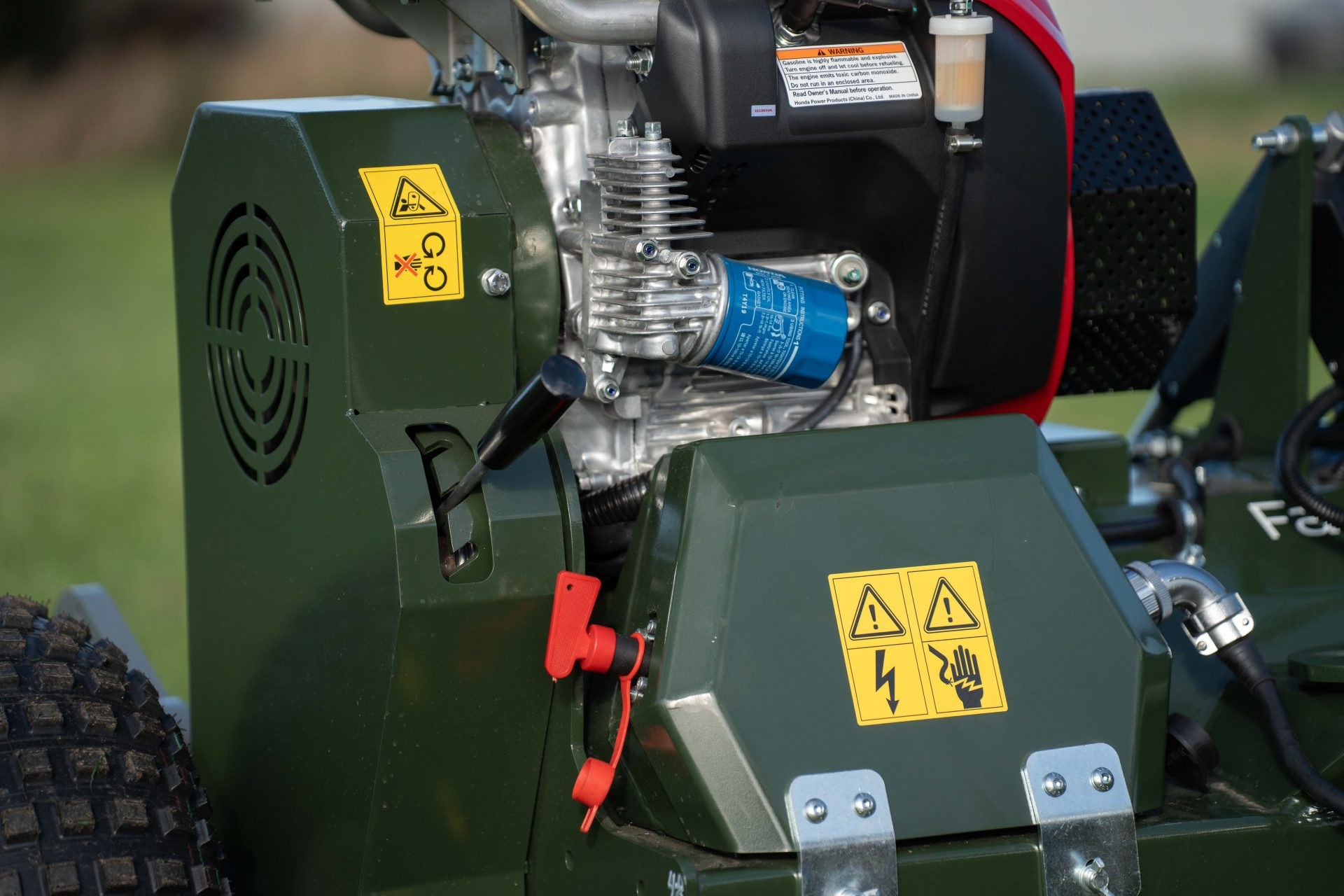

| Engine | Honda GX690 V-twin, 22.1 HP, gasoline |
| Cutting width | 130 cm (51.2 in) |
| Weight | 815 lbs (370 kg) |
| Dimensions (L x W x H) | 86 in x 83 in x 43 in (220 x 210 x 110 cm) |
| Clearance height | 200 mm (7.9 in) |
| Rotor | 120 mm hammer shaft; rotor speed 2300 rpm; blade tip speed 40 m/s |
| Flails | Hammer flails standard (approx. 350 g each); Y-flails optional (approx. 150 g each) |

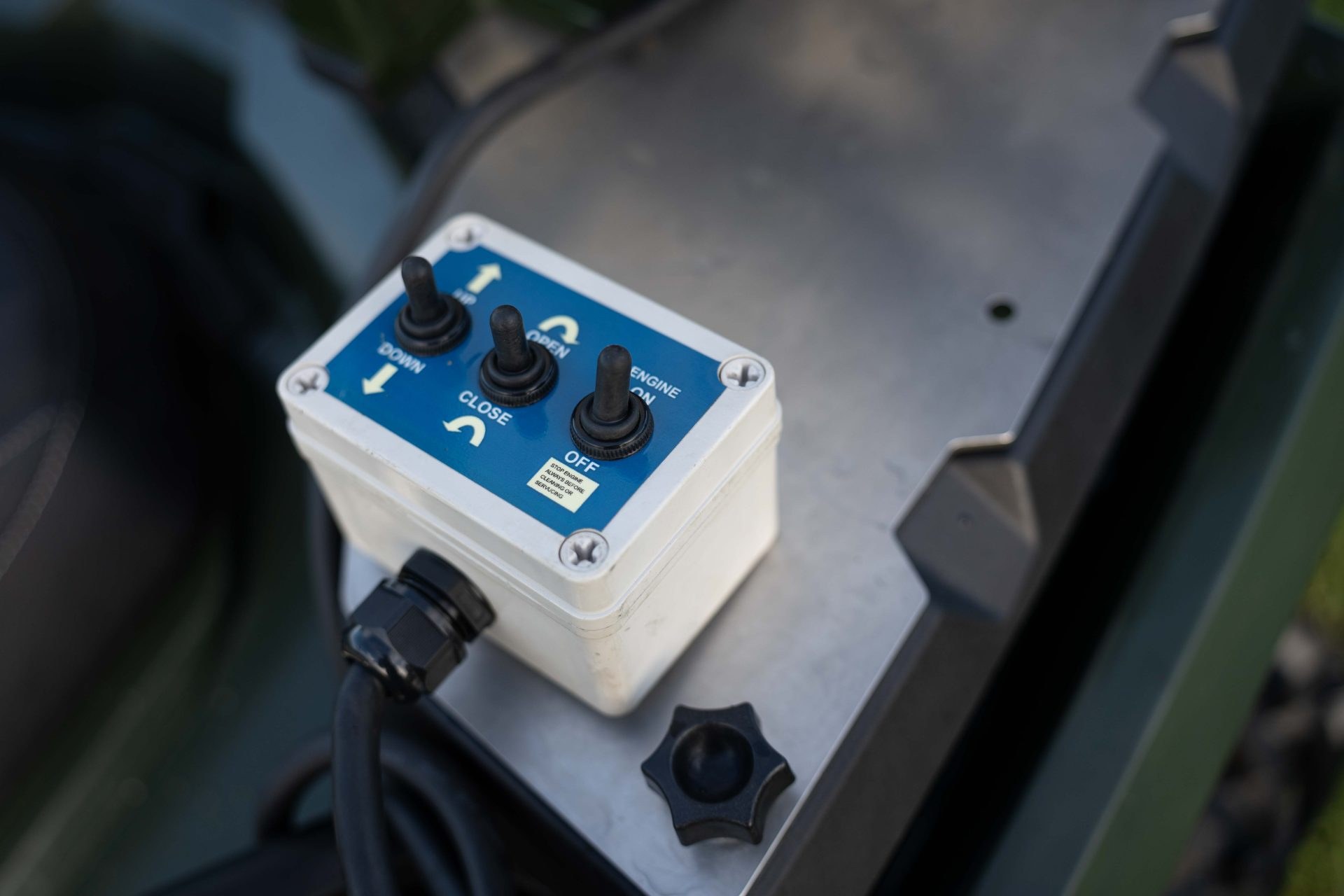

| Remote control | Remote with 3 switches: cutting height (wheel height) up/down, tailgate open/close, and engine stop, all from the towing vehicle |
| Drive | Centrifugal clutch with 3 drive belts and a spring-tensioned idler |
| Fuel tank | 21 L (5.5 gal) gasoline, enough for about 6 hours of work |
| Battery | 12 V, 22 Ah |
| Tires | 22×11-8 (P323 tread) on 8×8 rims |

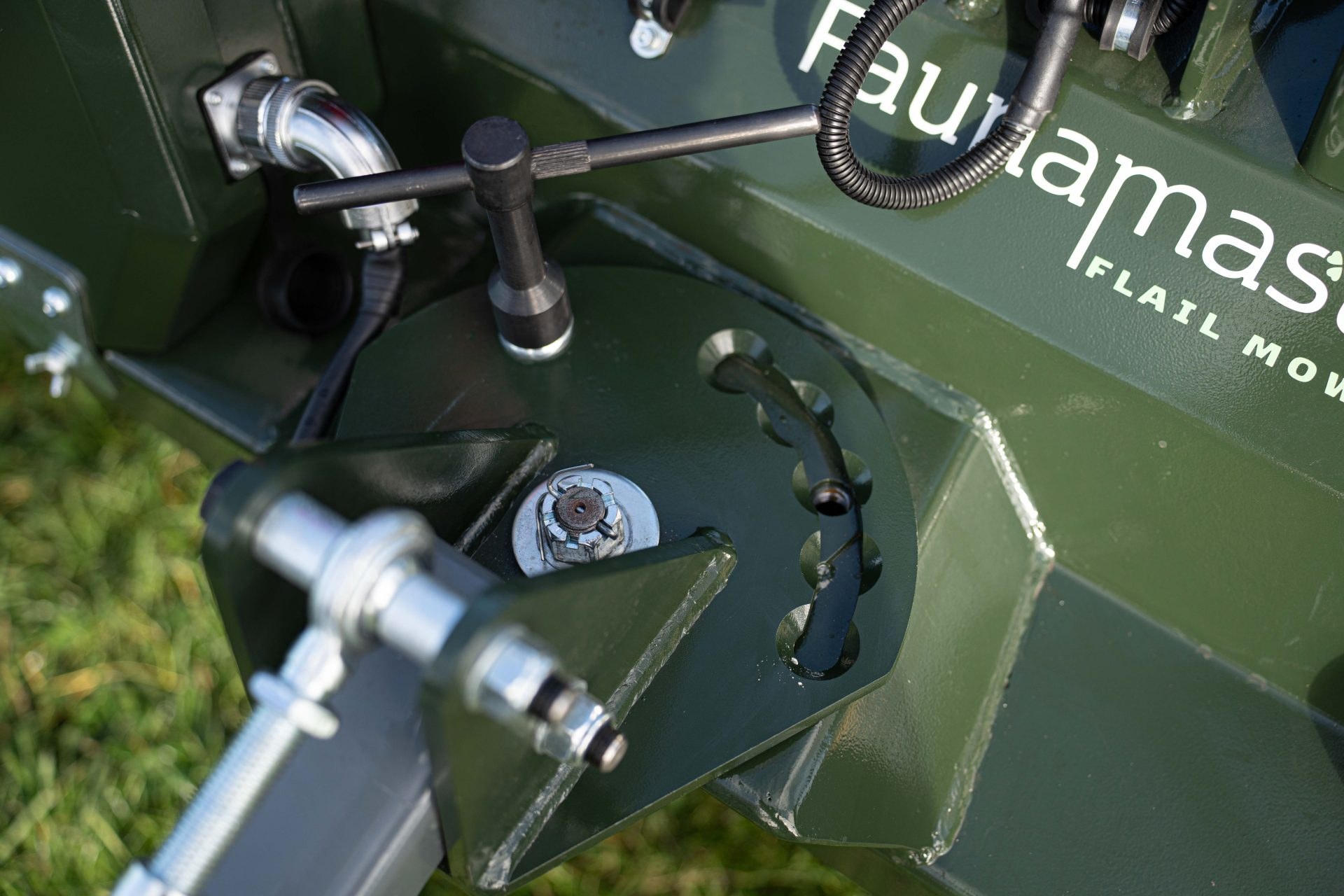

| Hitch / drawbar | Swivel hitch with auto-lock coupling. The drawbar can be offset left/right and tilted. The wheels can be set in front of or behind the deck. |
| Construction | Two-layer (double) body construction to protect against stone damage |
| Recommended towing vehicle | Minimum 25 hp, 4×4, at least 400 kg (882 lb) vehicle weight |
| Recommended working speed | 4-6 km/h (2.5-3.7 mph) |
| Road use | Not road legal; do not use on public roadways |
