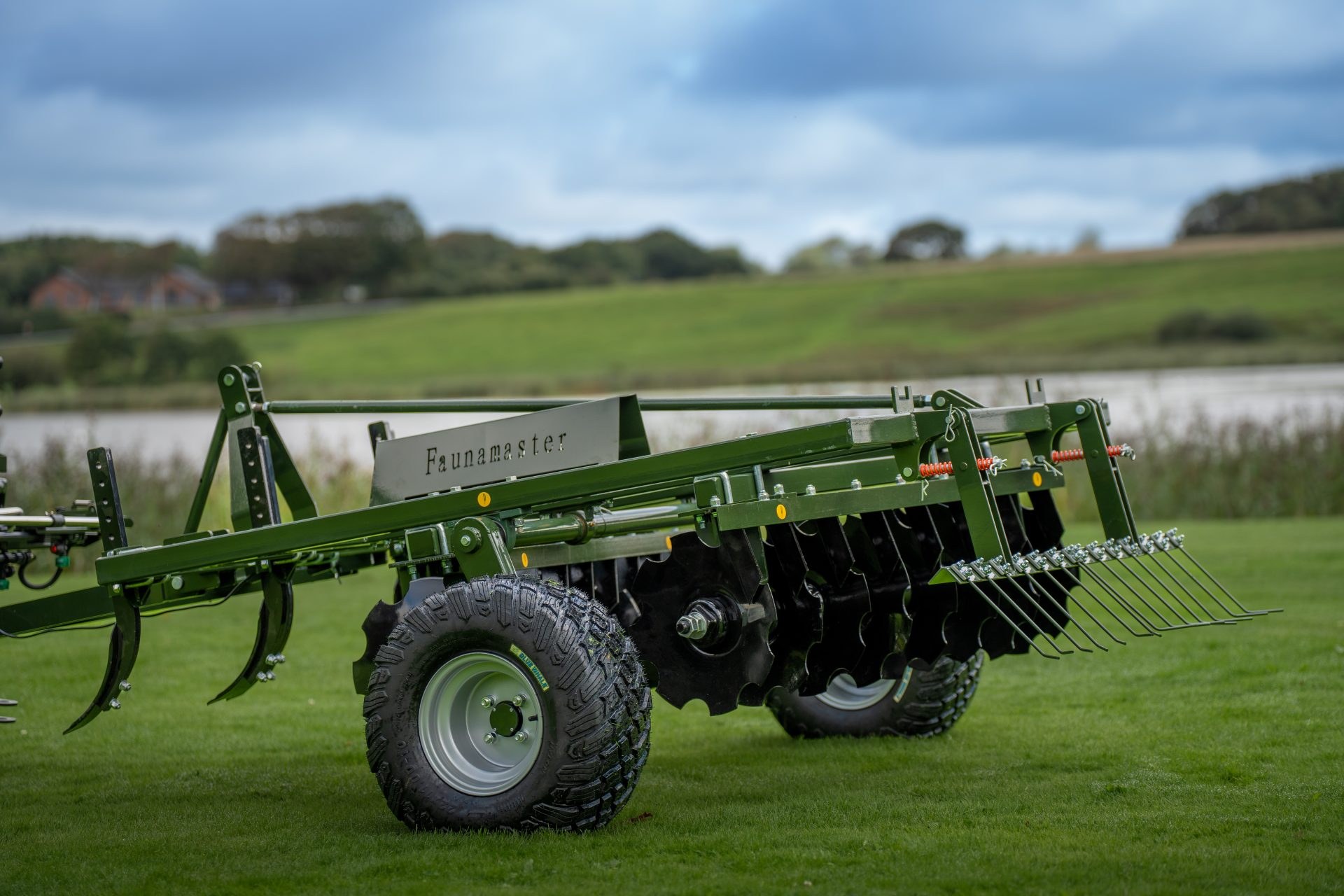

The harrow is equipped with 5 harrow tines, as well as 5 goose feet which can be changed according to need and work task. The DH140 also has 2 axles with disc harrows. At the back, there is a spring rake that ensures a nice and clean result, in the newly created seed bed. The working depth can be set individually, so that the harrow can work separately with goose feet, harrow tines and or disc plates.

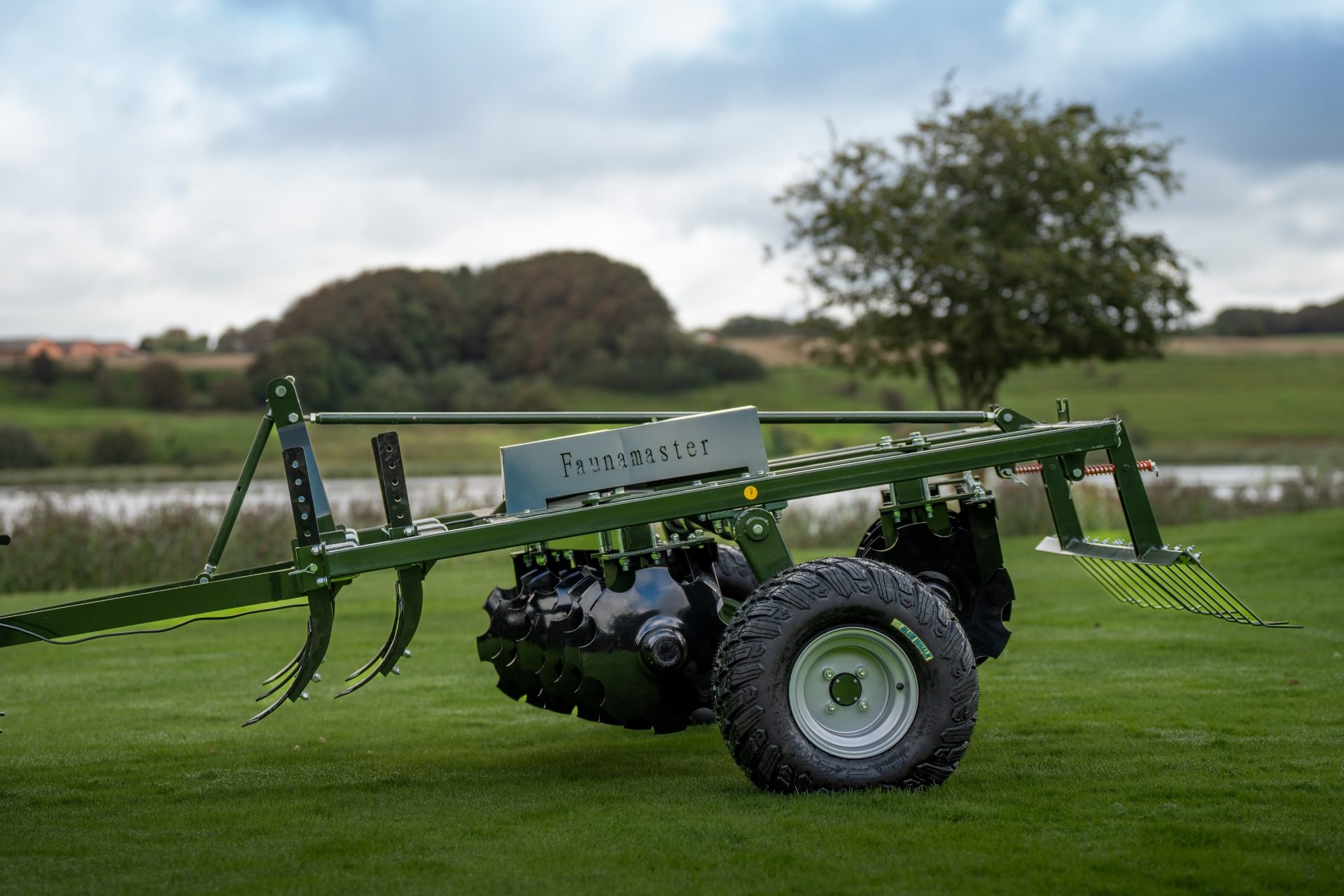

Faunamaster Harrow DH140 is the ultimate harrow for ATV/UTV and fits as well Cat. 1 tractors. It can be used for weed cleaning in existing seedbeds or in newly planted forest cultures, for the establishment of new seedbeds, for biodiversity areas, cover crops, wild flowers or areas that need to be ready for seeding.
- 5 harrow tines and 5 goose feet that can be swapped to suit the job
- 2 axles of disc harrows plus a rear spring rake for a clean, finished seedbed
- Working depth can be set individually, so the harrow can run with goose feet, harrow tines and/or the disc gangs
- Heavy-duty build for ATV/UTV and Cat. 1 tractors
| Product Family | Faunamaster Harrow |
| Model | Faunamaster Harrow DH140 – ATV/UTV Disc Harrow / Cultivator |
| Part Number | DH140 |
| Working width | 1400 mm (55.1 in) |
| Weight | 875 lbs (398 kg) |
| Dimensions (L x W x H) | 140 in x 84 in x 47 in (3570 x 2135 x 1200 mm) |
| Working depth | Up to 100 mm (3.9 in), adjusted steplessly with the actuator |
| Working elements | 5 harrow tines and 5 goose feet (duckfoot shares), interchangeable; 2 axles (gangs) of disc harrows; rear spring rake |
| Discs | 16 notched discs, 380 mm (15 in) diameter, 164 mm (6.5 in) spacing; offset type |
| Disc gang angle | 7-20 degrees |
| Gang axle | 28 x 28 mm square |
| Transport wheels | Pneumatic rubber, 560 mm (22 in) diameter, 22×11-10 |
| Transport clearance | 240 mm (9.4 in) |
| Recommended working speed | 10-14 km/h (6-9 mph) |
| Hitch | ATV/UTV drawbar or Cat. 1 3-point hitch |
| Power supply / lift | 12 V electric actuator lifts the ground wheels, so working depth can be set from the driver’s seat. Raising and lowering from the seat needs a switch: the vehicle’s built-in switch if it has one, otherwise the Faunamaster FM-Wirekit wiring kit (ask Dickson County Equipment). |
| Towing power | 20 kW / 27 HP |
