The ATV Dry Material Spreader easily disperses seed, dry granular fertilizer, pesticides, ice melt and other dry materials.
The 12 volt motor with variable speed control allows you to vary the spread width from 5 feet to 45 feet. Versatile and easy to use, the ATV Dry Material Spreader features a 2.2 cubic foot capacity poly hopper that holds up to 145 lbs of material and a stainless steel radial 6 blade fan. The material spreader applies product evenly over the entire yard or surface, resulting in less product waste, less time and less effort. It is an easy-to-use ATV spreader for medium-size to large jobs in parks, parking lots, lawns, pastures, ball fields, acreages and small farms.
Features
- Adjustable slide gate allows you to control the rate of material used
- Compact molded polymer hopper holds 145 lbs of material
- Stainless steel radial fan is spot welded and designed for precise material distribution
- Variable speed controller allows you to monitor width of material spread
- Water resistant rain cover protects material from moisture and clumping
- 2.2 cu. ft. poly hopper holds up to 145 lbs. of potash or 99 lbs. of urea
- 12 volt motor with Variable Speed Control (VSC-10) and On/Off switch. Spread width is adjustable from 5 ft to 45 ft
- 20 feet of wire harness with alligator clips that connect directly to the vehicle battery
- Stainless steel 6-blade radial fan
- Easy-to-reach slide gate handle
- Pattern adjusting ring re-centers the spread pattern for different material densities (factory set for urea)
- Approved for fertilizer, seed, bait, pellets, ice melting pellets, and granular insecticides, fungicides and herbicides. Not recommended for rock salt or sand
Model Specs

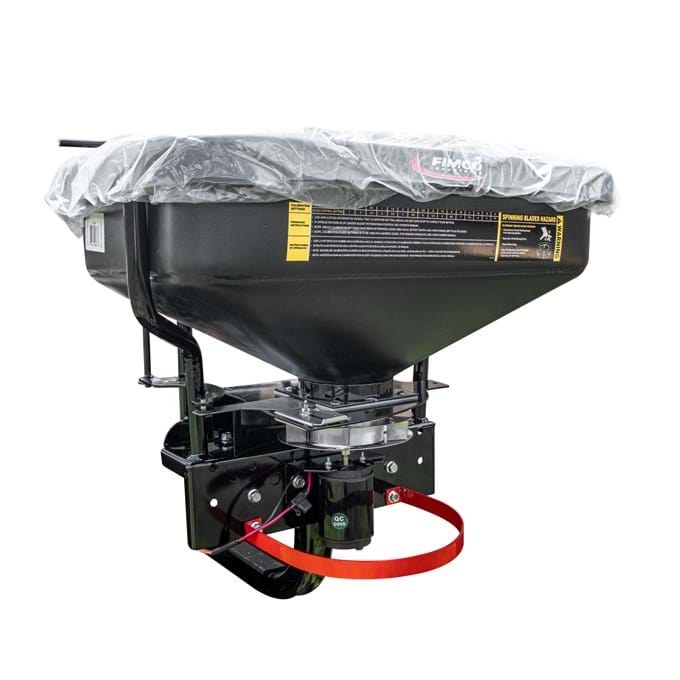

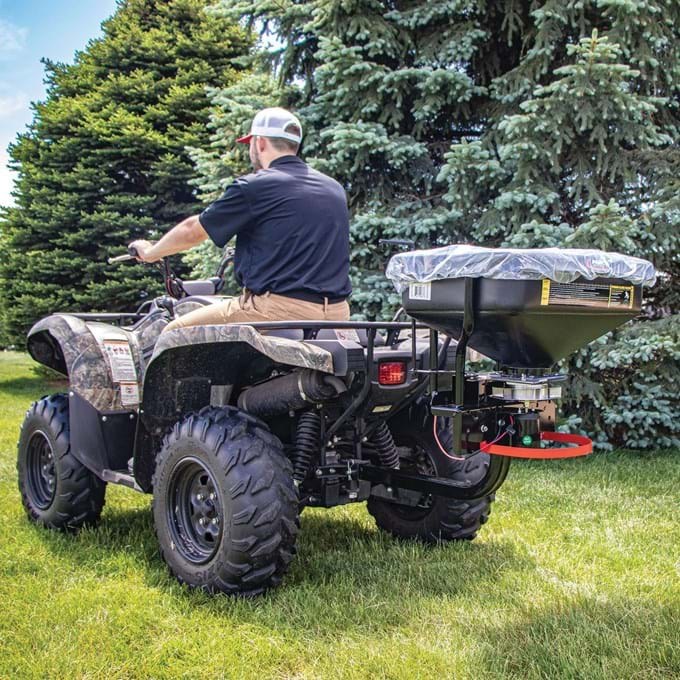

ATV/UTV Dry Material Spreader with 2" Receiver Hitch Mount (WLF ATV-DMS-12V-2RC)
| Product Family | ATV Dry Material Spreader |
| Model | ATV/UTV Dry Material Spreader with 2" Receiver Hitch Mount (WLF ATV-DMS-12V-2RC) |
| Part Number | WLF ATV-DMS-12V-2RC |
| Mounting | Integral 2" receiver hitch mount, pre-attached to the spreader. The receiver mount is secured to the spreader with two 1/2" dia. bent clevis pins and attaches to the vehicle receiver with one 5/8" dia. bent clevis pin and hitch pin (included) |
| Vehicle fit | Fits 2" receiver on most ATVs and UTVs and pickup trucks |
| Hopper capacity | 2.2 cu. ft. |
| Material capacity | Up to 145 lbs. potash or 99 lbs. urea |
| Hopper material | Compact poly hopper |
| Spread width | 5 ft to 45 ft (variable) |
| Motor | 12 volt motor, 5/16" dia. shaft (part 5275840) |
| Speed control | Variable Speed Control with On/Off switch, dial settings 1-10 (12V Motor Controller Set 5275918) |
| Motor controller rating | 12 volt, 10 amp (part 5157208) |
| Power hookup | 20 ft of wire harness with alligator clips, connected directly to the vehicle battery |
| Spinner | Stainless steel radial 6-blade fan |
| Rate control | Adjustable slide gate with gate scale plate and easy-to-reach spring-loaded On/Off gate handle |
| Pattern adjustment | Pattern adjusting ring, factory set for urea |
| In the Box | Pre-assembled spreader with 2" receiver mount attached; parts box #5281461 (12V motor controller set 5275918, dust cover 30" x 39" 6-mil plastic w/elastic 5058193, two 1/2" bent clevis pins, one 5/8" bent clevis pin, 1" rubber washer); owner’s manual |
| Rain/dust cover | Included |
| Approved materials | Fertilizer, seed, bait, pellets, ice melting pellets, granular insecticides, fungicides and herbicides |
| Not recommended for | Rock salt or sand |
| Approx. dimensions (in) | 28.50 hopper width x 21.06 height. Frame width 17.75. Overall depth 40 including receiver mount |
| Carton size (in) | 29 x 21 x 22 |

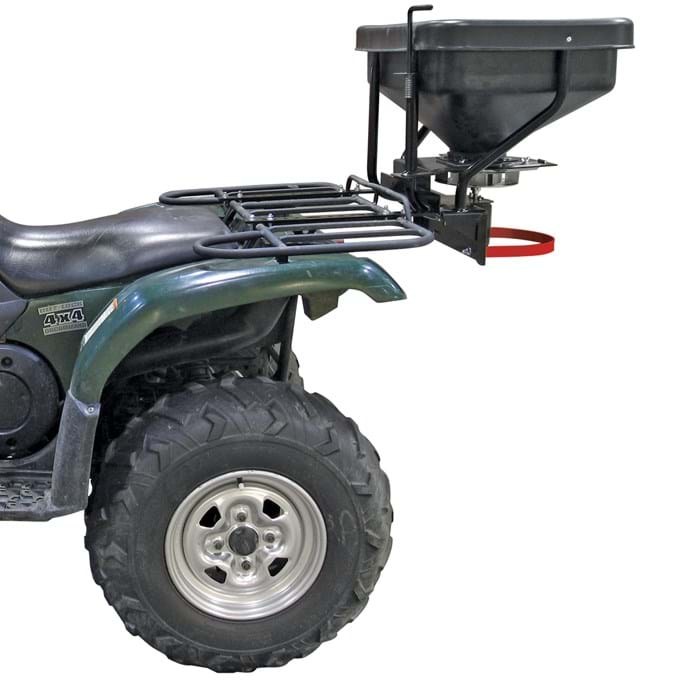

ATV Dry Material Spreader with Bolt-Together ATV Rack Brackets (WLF ATV-DMS-12V)
| Product Family | ATV Dry Material Spreader |
| Model | ATV Dry Material Spreader with Bolt-Together ATV Rack Brackets (WLF ATV-DMS-12V) |
| Part Number | WLF ATV-DMS-12V |
| Mounting | Bolt-together LH and RH mounting bracket weldments that attach to the vehicle’s rear rack with 4 round U-bolts (5/16"-18 x 1-5/16" x 1-3/4") and flange locknuts |
| Vehicle fit | Mounts to ATV rear cargo rack; mounting brackets fit most standard ATV cargo racks. Heavy-duty steel mounting hardware |
| Hopper capacity | 2.2 cu. ft. |
| Material capacity | Up to 145 lbs. potash or 99 lbs. urea |
| Hopper material | Molded poly (polymer) hopper |
| Spread width | 5 ft to 45 ft (variable) |
| Motor | 12 volt motor, 5/16" dia. shaft (part 5275840) |
| Speed control | Variable Speed Control VSC-10 (5275918) with On/Off switch, dial settings 1-10 |
| Motor controller rating | 12 volt, 10 amp (part 5157208) |
| Power hookup | 20 ft of wire harness with alligator clips, connected directly to the vehicle battery |
| Spinner | Stainless steel radial 6-blade fan |
| Rate control | Adjustable slide gate with gate scale plate and spring-loaded On/Off gate handle |
| Pattern adjustment | Pattern adjusting ring, factory set for urea |
| In the Box | Pre-assembled spreader; LH and RH rack mounting brackets; VSC-10 variable speed control (5275918) with battery and motor cables; parts bag #5275992 (4 round U-bolts 5/16"-18 x 1-5/16" x 1-3/4", 8 flange locknuts 5/16"-18, 4 flanged bolts 3/8"-16 x 3/4", 4 flanged nuts 3/8"-16, 1 garden-hose friction washer); owner’s manual; rain/dust cover |
| Rain/dust cover | Included |
| Approved materials | Fertilizer, seed, bait, pellets, ice melting pellets, granular insecticides, fungicides and herbicides |
| Not recommended for | Rock salt or sand |
| Approx. dimensions (in) | 28.50 hopper width x 21.06 height. Frame width 17.75. Depth 33.05 including rack brackets. Rack brackets 16.50 apart |
