Attention hunters and wildlife managers! The PH Outdoors G-SERIES no-till drill is here to make your job easier. The G-SERIES is a true no-till drill that can plant a variety of seeds and blends into even the toughest soil conditions. Featuring tempered cutting discs spaced at 7.5 inches apart, the G-SERIES slices into the soil, allowing the seeding mechanism to plant the seeds into the created slits. The solid, rubber packing wheels trail behind the discs to close up the soil, providing outstanding seed to soil contact even when cutting through standing vegetation. Plus, the infinitely-variable gearbox and seed calibration system make the G-SERIES easy to use and extremely accurate. Get ready for a successful hunting season with the PH Outdoors G-SERIES no-till drill!
The calibration process for the PH Outdoors G-Series No Till Drills has been designed to be quick and easy without the need for any tools. Although a comprehensive Seed Setting Chart is available, the calibration process is a vital step to ensure the most accurate seeding rate for your application.
Features
- True no-till drill – plants a variety of seeds and blends into even the toughest soil conditions
- Tempered cutting discs spaced 7.5 inches apart slice into the soil so the seeding mechanism can plant seed into the created slits
- Solid rubber packing wheels trail behind the discs to close up the soil for outstanding seed-to-soil contact, even when cutting through standing vegetation
- Infinitely Variable Gearbox – with the turn of a knob, you can precisely adjust the seeding rate for any seed. No gears, chains, or sprockets to mess with.
- White Seed Metering Element – easier to see when cleaning the machine after use
- Steel Drive Wheel – ensures the drive wheel does not slip no matter the ground condition
- Individual Bolt-on Element Strips – designed for ease of maintenance
- Digital Acreage Counter – keep better track of how many acres you plant on an individual plot, your entire acreage, and even the lifetime acreage planted
- Depth Adjustment Pins – easily change your depth in the field in only a minute without the need for tools (0.5" to 2" working depth)
- Weight Bar (G5, G8, G10) – suitcase weights can be added if more weight is needed based on your soil conditions
- Quick, tool-free seed calibration with a flip-over calibration tray and published Seed Setting Chart / online Calibration Calculator
- 3-point Cat 1/2 hitch on every size; optional wheel (tow) kit converts to pull-type

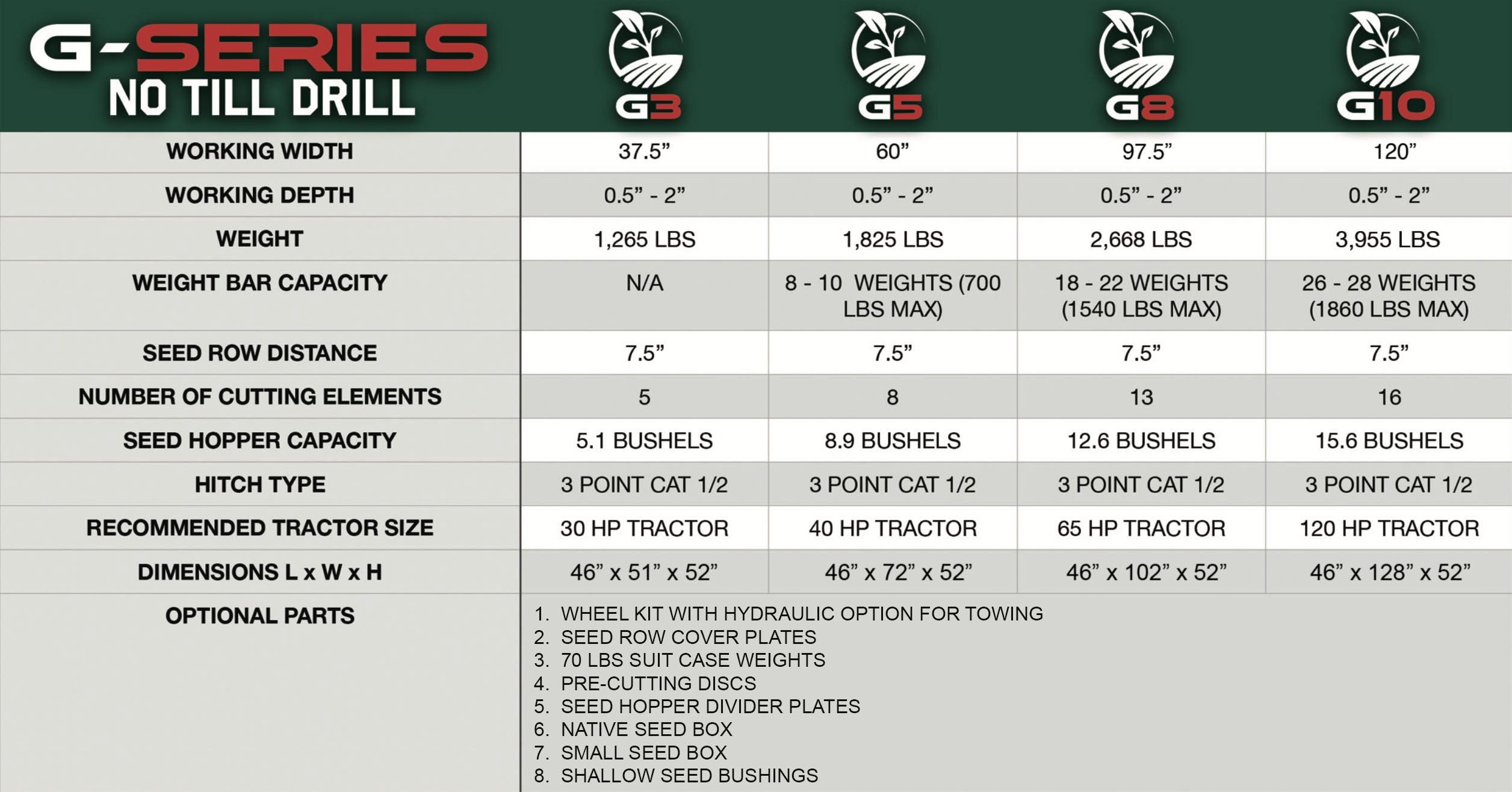

Model Specs

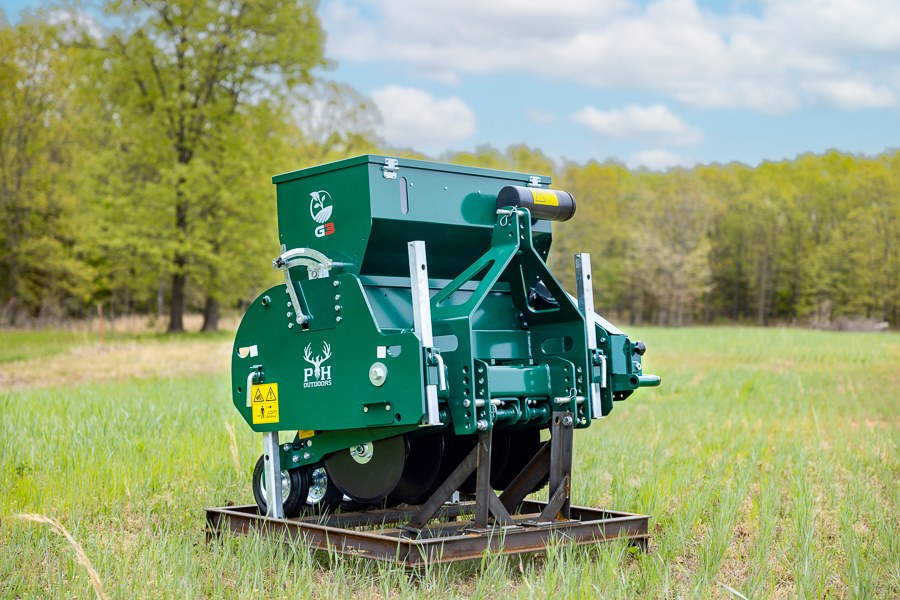

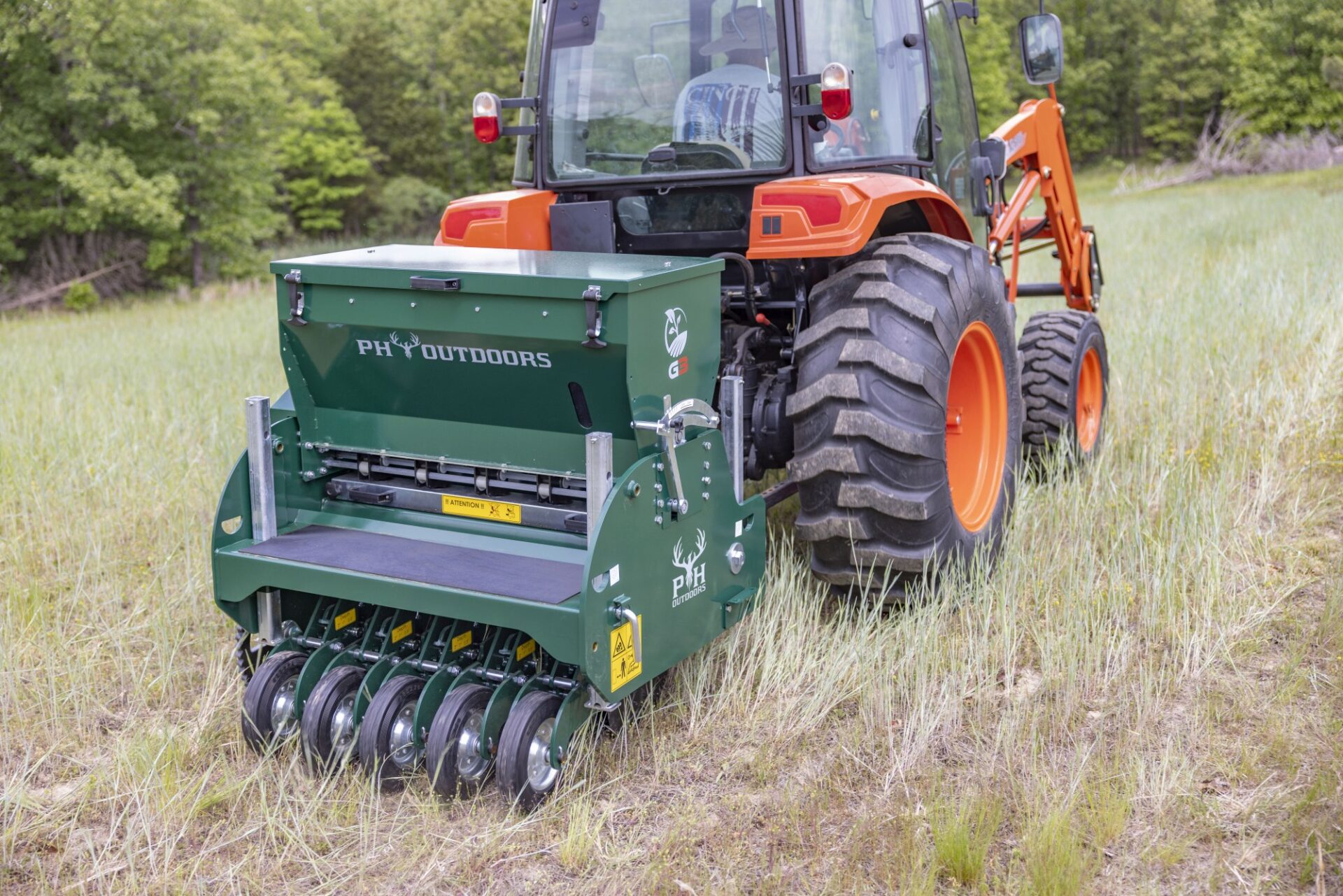

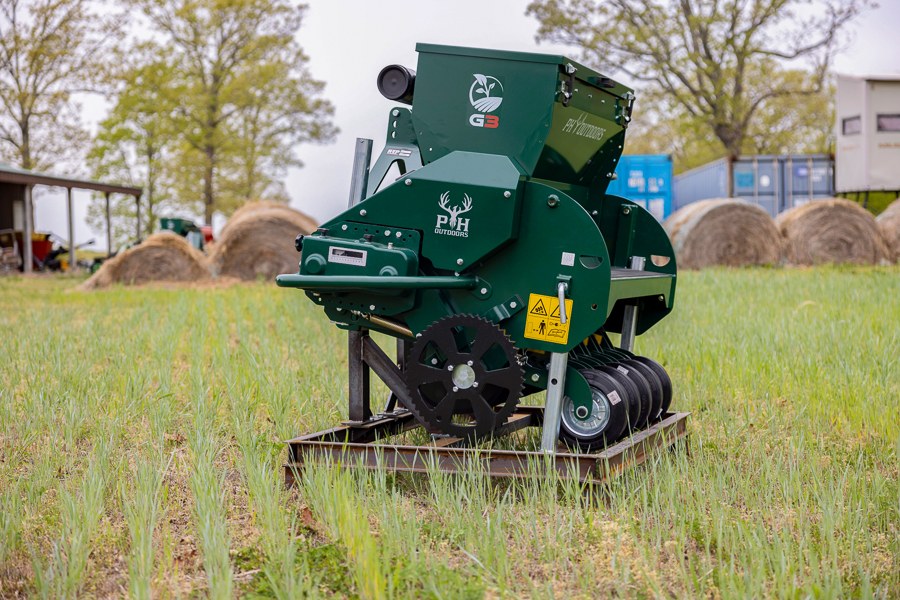

PH Outdoors G3 No-Till Drill
| Product Family | G-Series |
| Model | PH Outdoors G3 No-Till Drill |
| Part Number | GD1030 |
| Working Width | 37.5" |
| Working Depth | 0.5" – 2" |
| Weight | 1,265 lbs |
| Weight Bar Capacity | N/A (no weight bar on G3) |
| Seed Row Spacing | 7.5" |
| Number of Cutting / Seeding Elements | 5 |
| Optional Row Spacings | 15", 22.5" or 30" using seed cover plates (2 / 3 / 3 plates) or hopper dividers (4 / 3 / 2 dividers) |
| Seed Hopper Capacity | 5.1 bushels |
| Hitch Type | 3-Point Cat 1/2 |
| Recommended Tractor Size | 30 HP |
| Minimum Tractor Lift Capacity | 1,870 lbs, 24" behind the lift eyes |
| Tow Vehicle (with Wheel Kit + Hydraulic Kit) | Smaller tractors or 800cc+ UTVs |
| Dimensions (L x W x H) | 46" x 51" x 52" |
| Overall Width | 51" |
| Cutting Discs | Tempered; 406 mm diameter, 2 per seeding element |
| Packing Wheels | Solid rubber |
| Seed Metering | Infinitely variable gearbox + seed element gate (valve) opening |
| Calibration Multiplier | 129 (26 drive-wheel turns; seed lbs x 129 = lbs/acre) |
| Seed Box Options | Main box handles all seed sizes; optional Small Seed Box (0.55 bu, 72 lbs) or Native Seed Box (2.75 bu, 165 lbs) |
| Wheel Kit | Optional bogy wheel kit converts 3-point to pull type; approx. 300 lbs; includes hydraulic cylinders, hoses and 2 x 18×9.5-8 tires |
| Hydraulic Kit (G3 only) | Optional electric-hydraulic pump kit (approx. 101 lbs): pump + oil tank, electric control unit and battery-pack tray (battery not included). Used with the wheel kit behind a UTV/ATV that has no hydraulics. |
| Max Transport Speed (drill raised) | 10 mph |
| Maximum Working Slope | 20 degrees |
| Warranty | 1 year from date of purchase (defective materials) |

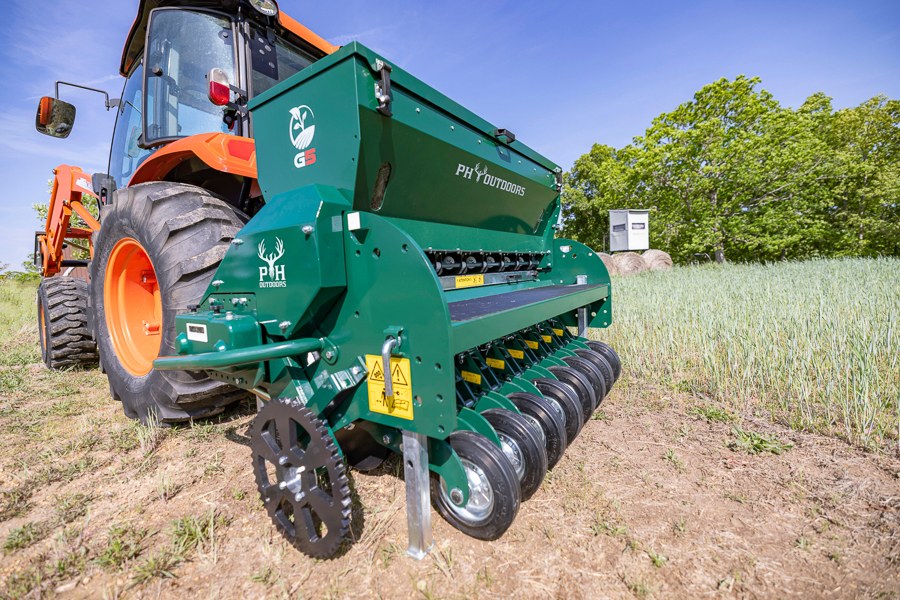

PH Outdoors G5 No-Till Drill
| Product Family | G-Series |
| Model | PH Outdoors G5 No-Till Drill |
| Part Number | GD1050 |
| Working Width | 60" |
| Working Depth | 0.5" – 2" |
| Weight | 1,825 lbs |
| Weight Bar Capacity | 8 – 10 weights (700 lbs max) |
| Seed Row Spacing | 7.5" |
| Number of Cutting / Seeding Elements | 8 |
| Optional Row Spacings | 15", 22.5" or 30" using seed cover plates (4 / 5 / 6 plates) or hopper dividers (7 / 5 / 3 dividers) |
| Seed Hopper Capacity | 8.9 bushels |
| Hitch Type | 3-Point Cat 1/2 |
| Recommended Tractor Size | 40 HP |
| Minimum Tractor Lift Capacity | 2,400 lbs, 24" behind the lift eyes |
| Dimensions (L x W x H) | 46" x 72" x 52" |
| Overall Width | 72" |
| Cutting Discs | Tempered; 406 mm diameter, 2 per seeding element |
| Packing Wheels | Solid rubber |
| Seed Metering | Infinitely variable gearbox + seed element gate (valve) opening |
| Calibration Multiplier | 81 (26 drive-wheel turns; seed lbs x 81 = lbs/acre) |
| Seed Box Options | Main box handles all seed sizes; optional Small Seed Box (0.88 bu, 97 lbs) or Native Seed Box (4.48 bu, 216 lbs) |
| Wheel Kit | Optional bogy wheel kit converts 3-point to pull type (for tractors without enough lift capacity) |
| Transport | Easy to transport on a trailer while still attached to the tractor |
| Max Transport Speed (drill raised) | 10 mph |
| Maximum Working Slope | 20 degrees |
| Warranty | 1 year from date of purchase (defective materials) |

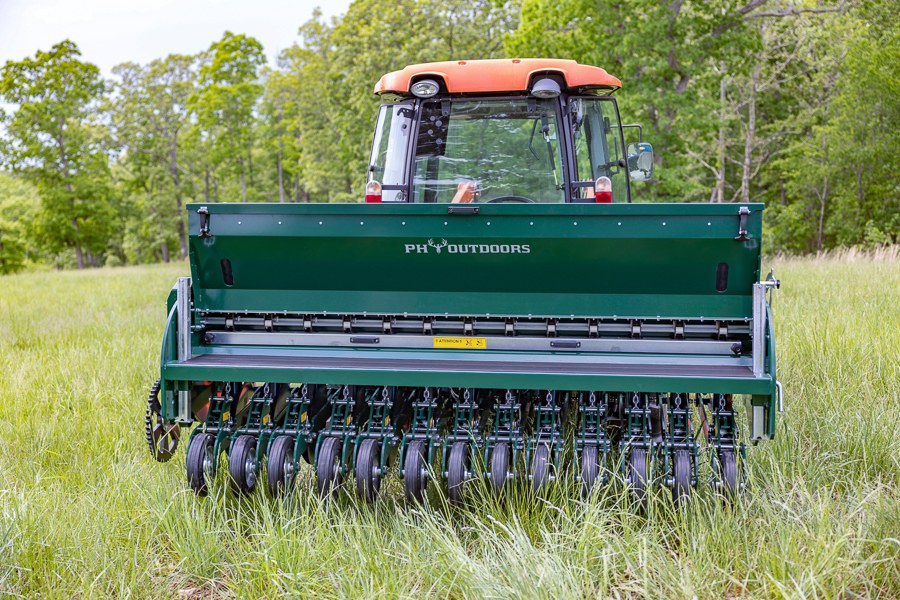

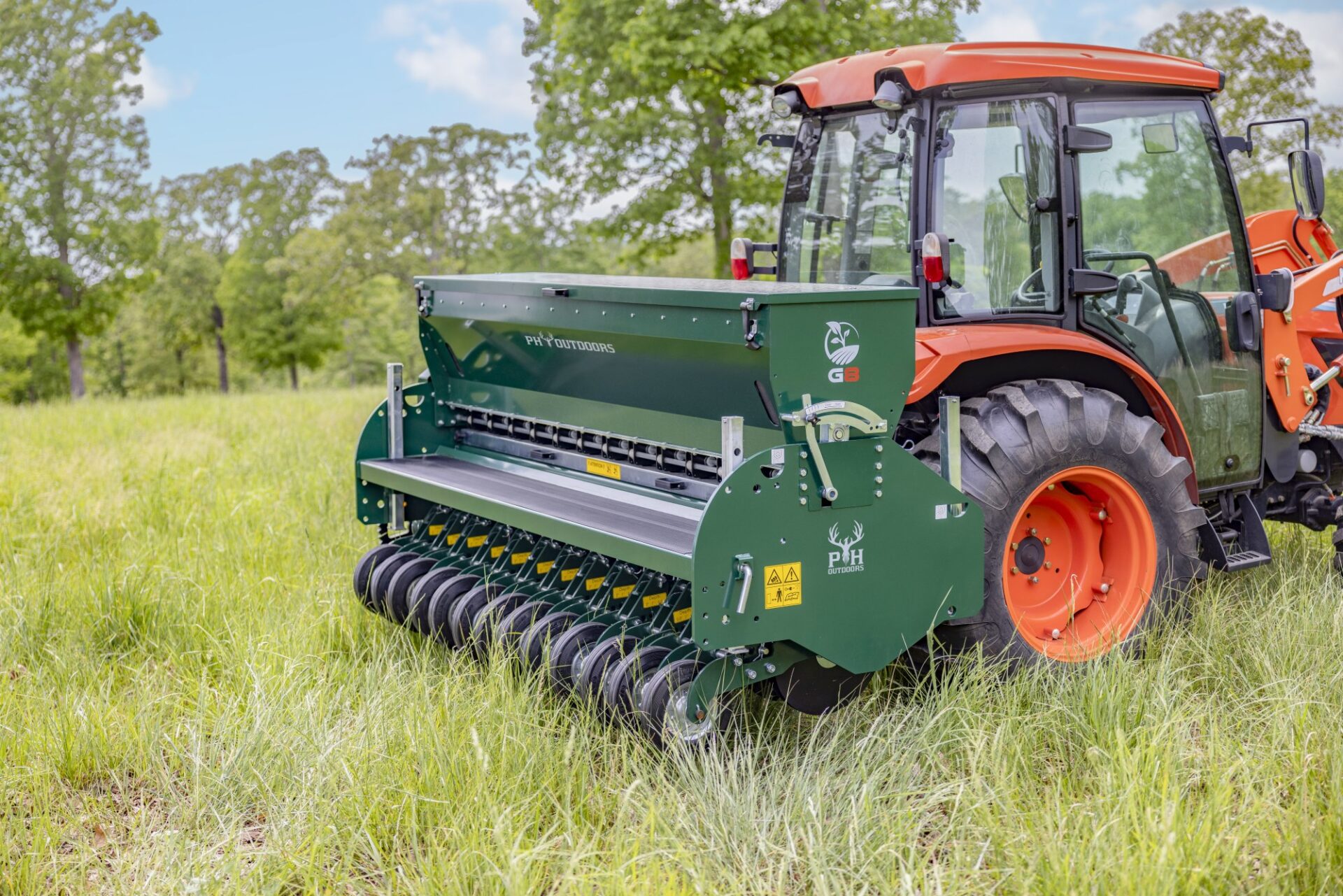

PH Outdoors G8 No-Till Drill
| Product Family | G-Series |
| Model | PH Outdoors G8 No-Till Drill |
| Part Number | GD1080 |
| Working Width | 97.5" |
| Working Depth | 0.5" – 2" |
| Weight | 2,668 lbs |
| Weight Bar Capacity | 18 – 22 weights (1,540 lbs max) |
| Seed Row Spacing | 7.5" |
| Number of Cutting / Seeding Elements | 13 |
| Optional Row Spacings | 15", 22.5" or 30" using seed cover plates (6 / 8 / 9 plates) or hopper dividers (12 / 8 / 6 dividers) |
| Seed Hopper Capacity | 12.6 bushels |
| Hitch Type | 3-Point Cat 1/2 |
| Recommended Tractor Size | 65 HP |
| Minimum Tractor Lift Capacity | 3,200 lbs |
| Dimensions (L x W x H) | 46" x 102" x 52" |
| Overall Width | 102" |
| Cutting Discs | Tempered; 406 mm diameter, 2 per seeding element |
| Packing Wheels | Solid rubber |
| Seed Metering | Infinitely variable gearbox + seed element gate (valve) opening |
| Calibration Multiplier | 50 (26 drive-wheel turns; seed lbs x 50 = lbs/acre) |
| Seed Box Options | Main box handles all seed sizes; optional Small Seed Box (1.4 bu, 140 lbs) or Native Seed Box (7.38 bu, 320 lbs) |
| Wheel Kit | Optional bogy wheel kit converts 3-point to pull type (for tractors without enough lift capacity) |
| Max Transport Speed (drill raised) | 10 mph |
| Maximum Working Slope | 20 degrees |
| Warranty | 1 year from date of purchase (defective materials) |

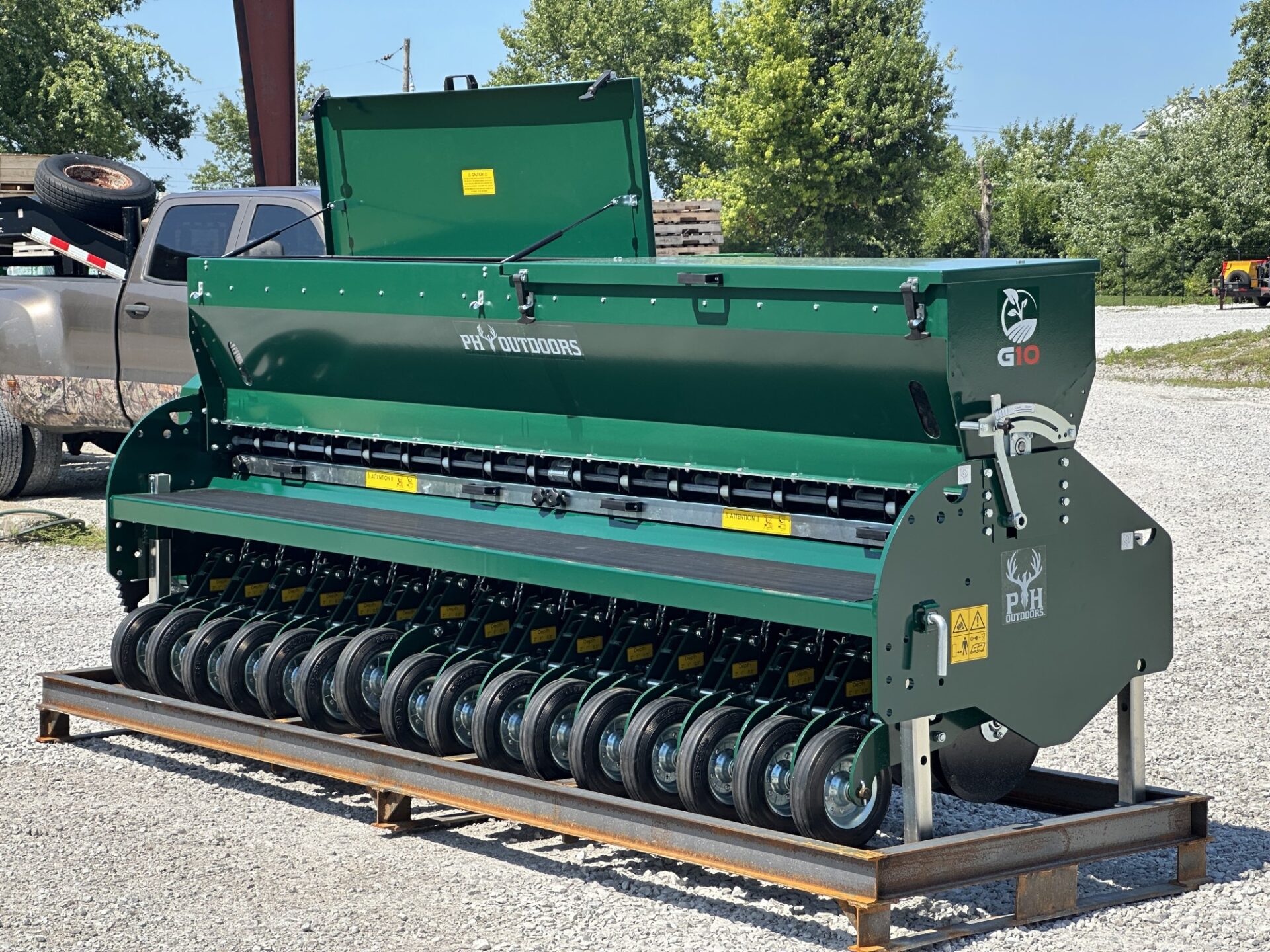

PH Outdoors G10 No-Till Drill
| Product Family | G-Series |
| Model | PH Outdoors G10 No-Till Drill |
| Part Number | GD1010 |
| Working Width | 120" |
| Working Depth | 0.5" – 2" |
| Weight | 3,955 lbs |
| Weight Bar Capacity | 26 – 28 weights (70 lbs each) |
| Seed Row Spacing | 7.5" |
| Number of Cutting / Seeding Elements | 16 |
| Optional Row Spacings | 15", 22.5" or 30" using seed cover plates (8 / 10 / 12 plates) or hopper dividers (15 / 10 / 7 dividers) |
| Seed Hopper Capacity | 15.6 bushels |
| Hitch Type | 3-Point Cat 1/2 |
| Recommended Tractor Size | 120 HP |
| Minimum Tractor Lift Capacity | 5,500 lbs (24" behind the lift eyes) to operate once loaded |
| Dimensions (L x W x H) | 46" x 128" x 52" |
| Overall Width | 128" |
| Cutting Discs | Tempered; 406 mm diameter, 2 per seeding element |
| Packing Wheels | Solid rubber |
| Seed Metering | Infinitely variable gearbox + seed element gate (valve) opening |
| Calibration Multiplier | 41 (26 drive-wheel turns; seed lbs x 41 = lbs/acre) |
| Seed Box Options | Main box handles all seed sizes; optional Small Seed Box (1.75 bu, 169 lbs) or Native Seed Box (9.11 bu, 388 lbs) |
| Wheel Kit | Optional bogy wheel kit converts 3-point to pull type; G10 kit uses 4 x 26×12" wheels; often paired with the tow kit |
| Max Transport Speed (drill raised) | 10 mph |
| Maximum Working Slope | 20 degrees |
| Warranty | 1 year from date of purchase (defective materials) |
Available Options
| Part # | Option | Fits | List Price |
| G10301 | G3 Bogy Wheel Kit – Converts 3pt to Pull Type | G3 | $3,466.00 |
| G10501 | G5 Bogy Wheel Kit – Converts 3pt to Pull Type | G5 | $3,547.00 |
| G10801 | G8 Bogy Wheel Kit – Converts 3pt to Pull Type | G8 | $4,280.00 |
| G10101 | G10 Bogy Wheel Kit – Converts 3pt to Pull Type | G10 | $10,507.00 |
| G10303 | G3 Hydraulic Kit (UTV/ATV) | G3 | $2,896.00 |
| GDO-04-5 | GDO-04-5 Front Coulter Set (5) for G3 | G3 | $2,149.00 |
| GDO-04-8 | GDO-04-8 Front Coulter Set (8) for G5 | G5 | $3,439.00 |
| GDO-04-13 | GDO-04-13 Front Coulter Set (13) for G8 | G8 | $5,588.00 |
| GDO-04-16 | GDO-04-16 Front Coulter Set (16) for G10 | G10 | $6,878.00 |
| GDO-04 | GDO-04 Front Coulter – Each | G3, G5, G8, G10 | $579.20 |
| GDO-02-4 | GDO-02-4 Hopper Divider Plate Kit for G3 | G3 | $252.00 |
| GDO-02-7 | GDO-02-7 Hopper Divider Plate Kit for G5 | G5 | $404.00 |
| GDO-02-12 | GDO-02-12 Hopper Divider Plate Kit for G8 | G8 | $656.00 |
| GDO-02-15 | GDO-02-15 Hopper Divider Plate Kit for G10 | G10 | $807.00 |
| GDO-02 | GDO-02 Hopper Divider Plate – Each | G3, G5, G8, G10 | $50.00 |
| GDO-01-3 | GDO-01-3 G3 Seed Cover Plates – Set of 3 | G3 | $39.00 |
| GDO-01-5 | GDO-01-5 G5 Seed Cover Plates – Set of 5 | G5 | $65.00 |
| GDO-01-8 | GDO-01-8 G8 Seed Cover Plates – Set of 8 | G8 | $104.00 |
| GDO-01-10 | GDO-01-10 G10 Seed Cover Plates – Set of 10 | G10 | $130.00 |
| GDO-01 | GDO-01 G-Series Seed Cover Plate – Each | G3, G5, G8, G10 | $13.00 |
| GD10302-O | Small Seed Box for G3 | G3 | $2,468.00 |
| GD10502-O | Small Seed Box for G5 | G5 | $2,962.00 |
| G10802-O | Small Seed Box for G8 | G8 | $5,049.00 |
| G10102-O | Small Seed Box for G10 | G10 | $5,575.00 |
| GD10304-O | Native Seed Box for G3 | G3 | $5,752.00 |
| GD10503-O | Native Seed Box for G5 | G5 | $6,992.00 |
| G10803-O | Native Seed Box for G8 | G8 | $12,097.00 |
| G10103-O | Native Seed Box for G10 | G10 | $12,236.00 |
| GD-70W | GD-70W G-Series Weight Kit – 70 lbs | G5, G8 | $187.00 |
| GD-70W-2 | GD-70W-2 G-Series Weight Kit – 140 lbs | G5, G8 | $375.00 |
| GD-70W-4 | GD-70W-4 G-Series Weight Kit – 280 lbs | G5, G8 | $749.00 |
| GD-70W-6 | GD-70W-6 G-Series Weight Kit – 420 lbs | G5, G8 | $1,124.00 |
| GD-70W-8 | GD-70W-8 G-Series Weight Kit – 560 lbs | G5, G8 | $1,499.00 |
| GD-70W-10 | GD-70W-10 G-Series Weight Kit – 700 lbs | G5, G8, G10 | $1,875.00 |
| GD-70W-12 | GD-70W-12 G-Series Weight Kit – 840 lbs | G8, G10 | $2,249.00 |
| GD-70W-14 | GD-70W-14 G-Series Weight Kit – 980 lbs | G8, G10 | Call |
| GD-70W-16 | GD-70W-16 G-Series Weight Kit – 1,120 lbs | G10 | $2,999.00 |
| GD-70W-18 | GD-70W-18 G-Series Weight Kit – 1,260 lbs | G10 | $3,374.00 |
| GD-70W-20 | GD-70W-20 G-Series Weight Kit – 1,400 lbs | G10 | $3,748.00 |
| GD-70W-22 | GD-70W-22 G-Series Weight Kit – 1,540 lbs | G10 | $4,123.00 |
Options are sold separately. Call Dickson County Equipment for availability and installation.
