Faunamaster Seeder is developed as a multifunctional planter, it handles seeds in many sizes from small, clover, alfalfa seeds, to corn and beans. Faunamaster Seeder has the ability to lay out fertilizer while planting. The Seeder 105 has 7 adjustable seeding rows and is the perfect size to be towed by a 650cc/20hp and larger 4×4 ATV/UTV weighing at least 750 lbs. The Seeder 180 has 12 adjustable seeding rows and is the perfect size to be towed by an 800cc/25hp and larger 4×4 ATV/UTV that weighs at least 900 lbs.
Faunamaster seeder can be used by ATV/UTV, or by a 3-point hitch on cat. 1 tractor. Faunamaster seeder is easy to connect to ATV/UTV through the ball hitch. The built-in 12v actuator makes it easy for the driver to operate the planter, without getting off the ATV; when fully raised, ground clearance is 200 mm.
PH Outdoors and Faunamaster have partnered to elevate Wildlife and Land Management Solutions. This collaboration brings enhanced equipment solutions to those managing small farms, wildlife food plots, and conservation areas, supporting balanced and sustainable land management.
- Plants seed of many sizes, from small clover and alfalfa seed to corn and beans
- Separate seed and fertilizer hoppers, so you can apply fertilizer while planting
- Adjustable row count and spacing (7 rows on the 105, 12 rows on the 180, 150 mm / 5.9" base spacing) with double-disc openers and press wheels
- Seeding depth 0-80 mm (0-3.1"). For no-till planting, keep depth to 10 mm (0.4") or less.

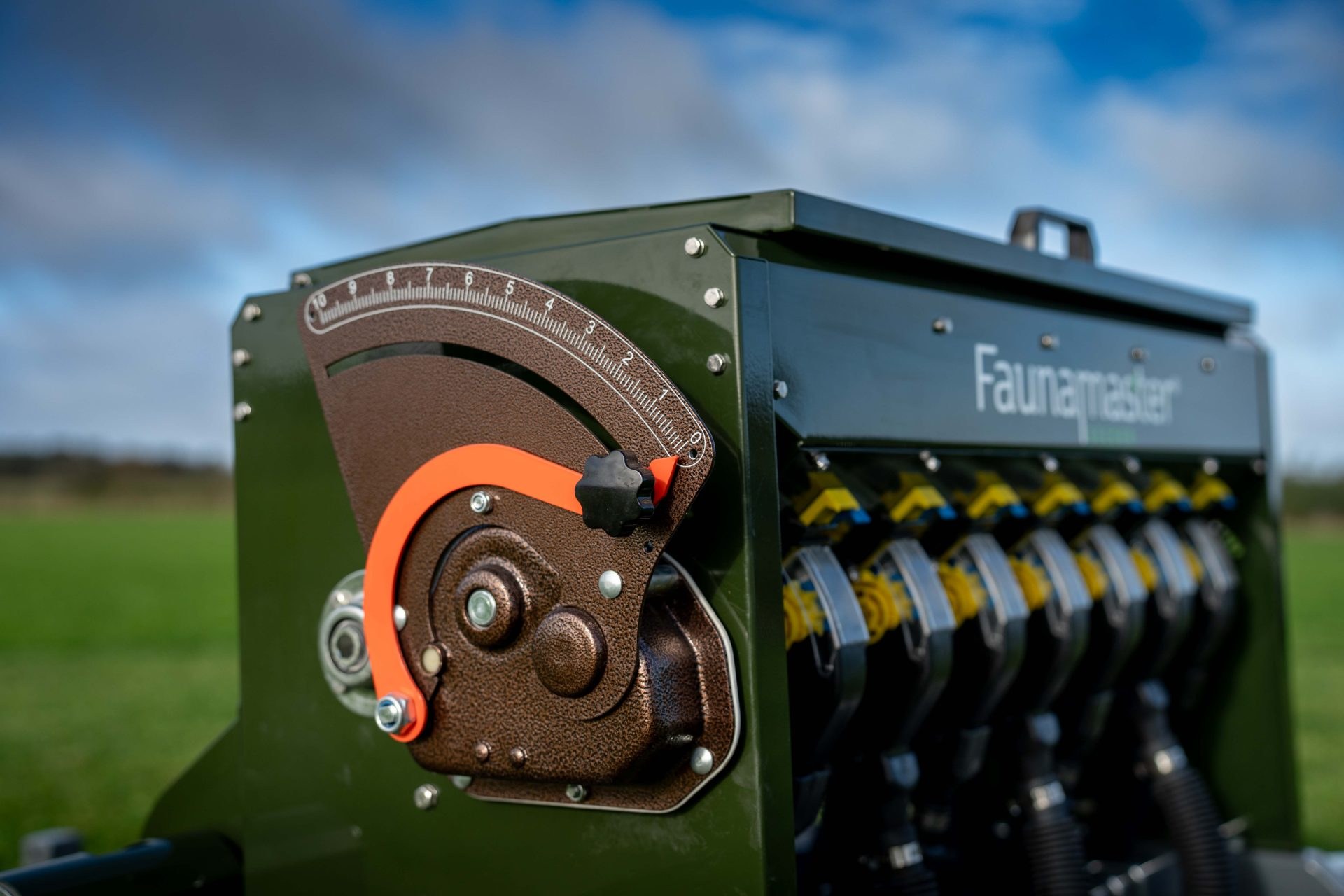

- Seed rate is set with a handle on a dial, and a seed table with settings for clover, alfalfa, beans, kale and corn is included
- Hitches to an ATV/UTV ball hitch or a Cat. 1 tractor 3-point hitch
- Built-in 12 V actuator raises and lowers the seeder from the driver’s seat (with a seat switch or the FM-Wirekit wiring kit); 200 mm (7.9") ground clearance when fully raised
| Product Family | Faunamaster Seeder |
| Model | Faunamaster Seeder 105 – 7-Row ATV/UTV Seeder (FM105) |
| Part Number | FM105 |
| Number of rows | 7 (adjustable) |
| Row spacing | 150 mm (5.9 in) with 7 rows; 350 mm (13.8 in) with 3 rows; 525 mm (20.7 in) with 2 rows |
| Working width | 3.5 ft (105 cm / 41.3 in) |
| Weight | 575 lbs (260 kg) |
| Dimensions (L x W x H) | 86 in x 57 in x 42 in (2190 x 1450 x 1060 mm) |
| Hopper capacity | 1.28 bushel seed / 1.14 bushel fertilizer (45 L / 40 L) |
| Recommended towing vehicle | Minimum 750 lbs, 4×4, 650cc/20 hp ATV/UTV |
| Hitch | ATV/UTV ball hitch (trailed) or Cat. 1 3-point hitch |
| Power supply / lift | 12 V; built-in 12 V electric actuator (max 25 A) raises and lowers the seeder from the driver’s seat. The ATV/UTV supply must be fitted with a 25 A fuse. Raising and lowering from the seat needs a switch: the vehicle’s built-in switch if it has one, otherwise the Faunamaster FM-Wirekit wiring kit (ask Dickson County Equipment). |
| Ground clearance, fully raised | 200 mm (7.9 in) |
| Transport ground clearance | At least 150 mm (5.9 in) when trailed; at least 300 mm (11.8 in) on a 3-point hitch |
| Sowing depth | 0-80 mm (0-3.1 in); for no-till planting, no deeper than 10 mm is recommended |
| Recommended working speed | 4-6 km/h (2.5-3.7 mph) |
| Seed / fertilizer metering | Cog-type seed meter, fluted fertilizer meter; ground-wheel drive with chain transmission; stepless seed-rate adjustment |
| Disc openers | Double-bearing double-disc type |
| Ground wheels | 410 mm (16.1 in) diameter, pneumatic rubber tires (4.00-8) |
| Product Family | Faunamaster Seeder |
| Model | Faunamaster Seeder 180 – 12-Row ATV/UTV Seeder (FM180) |
| Part Number | FM180 |
| Number of rows | 12 (adjustable) |
| Row spacing | 150 mm (5.9 in) with 12 rows; 300 mm (11.8 in) with 6 rows; 600 mm (23.6 in) with 3 rows |
| Working width | 5.9 ft (180 cm / 70.9 in) |
| Weight | 905 lbs (410 kg) |
| Dimensions (L x W x H) | 91 in x 86 in x 45 in (2300 x 2190 x 1130 mm) |
| Hopper capacity | 2.27 bushel seed / 2.01 bushel fertilizer (80 L / 71 L) |
| Recommended towing vehicle | Minimum 900 lbs, 4×4, 800cc/25 hp ATV/UTV |
| Hitch | ATV/UTV ball hitch (trailed) or Cat. 1 3-point hitch |
| Power supply / lift | 12 V; built-in 12 V electric actuator (max 25 A) raises and lowers the seeder from the driver’s seat. The ATV/UTV supply must be fitted with a 25 A fuse. Raising and lowering from the seat needs a switch: the vehicle’s built-in switch if it has one, otherwise the Faunamaster FM-Wirekit wiring kit (ask Dickson County Equipment). |
| Ground clearance, fully raised | 200 mm (7.9 in) |
| Transport ground clearance | At least 150 mm (5.9 in) when trailed; at least 300 mm (11.8 in) on a 3-point hitch |
| Sowing depth | 0-80 mm (0-3.1 in); for no-till planting, no deeper than 10 mm is recommended |
| Recommended working speed | 4-6 km/h (2.5-3.7 mph) |
| Seed / fertilizer metering | Cog-type seed meter, fluted fertilizer meter; ground-wheel drive with chain transmission; stepless seed-rate adjustment |
| Disc openers | Double-bearing double-disc type |
| Ground wheels | 410 mm (16.1 in) diameter, pneumatic rubber tires (4.00-8) |
