Resources: Official Product Page | Gravely ZT X Sell Sheet | Gravely Product Catalog

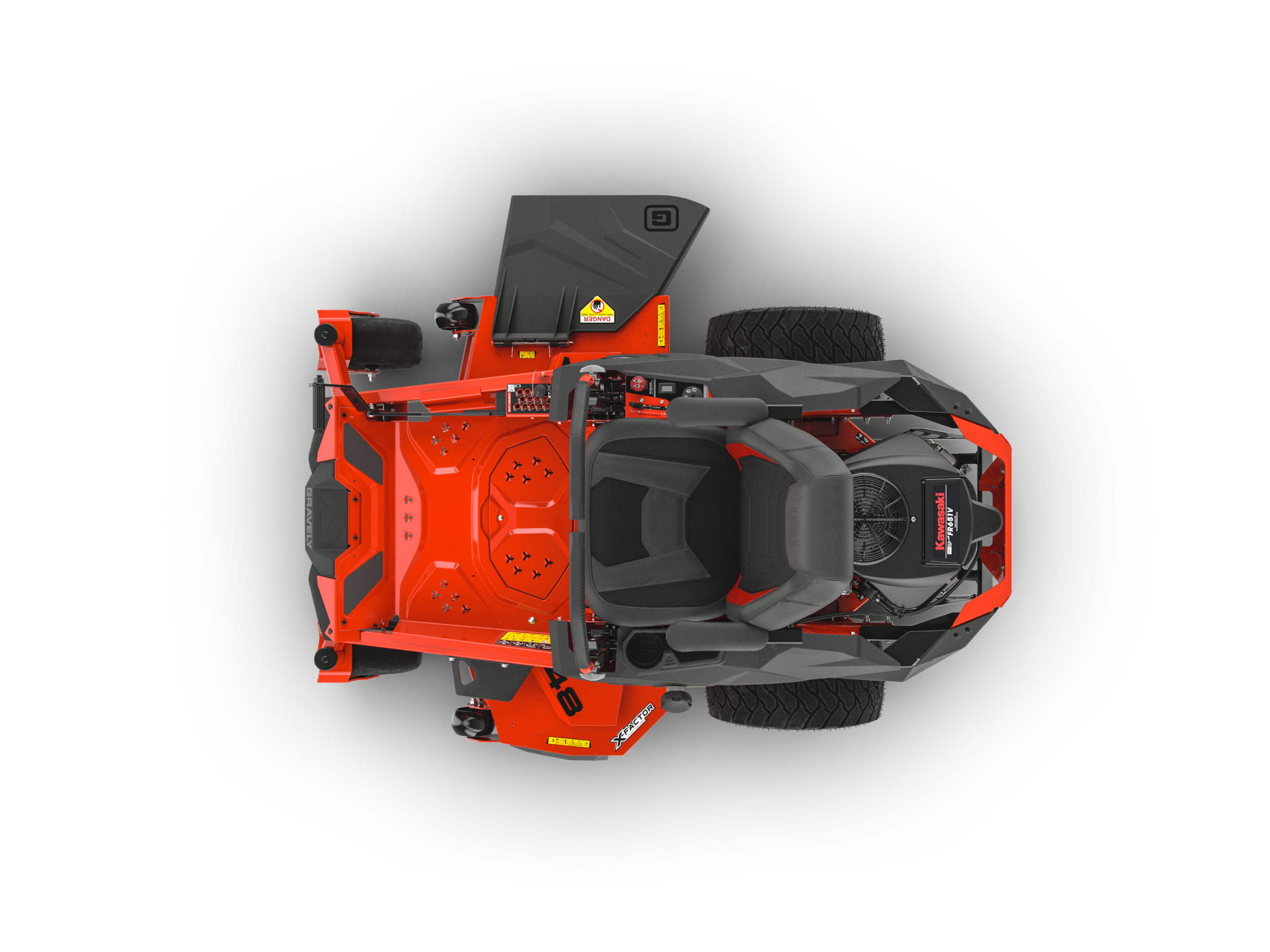

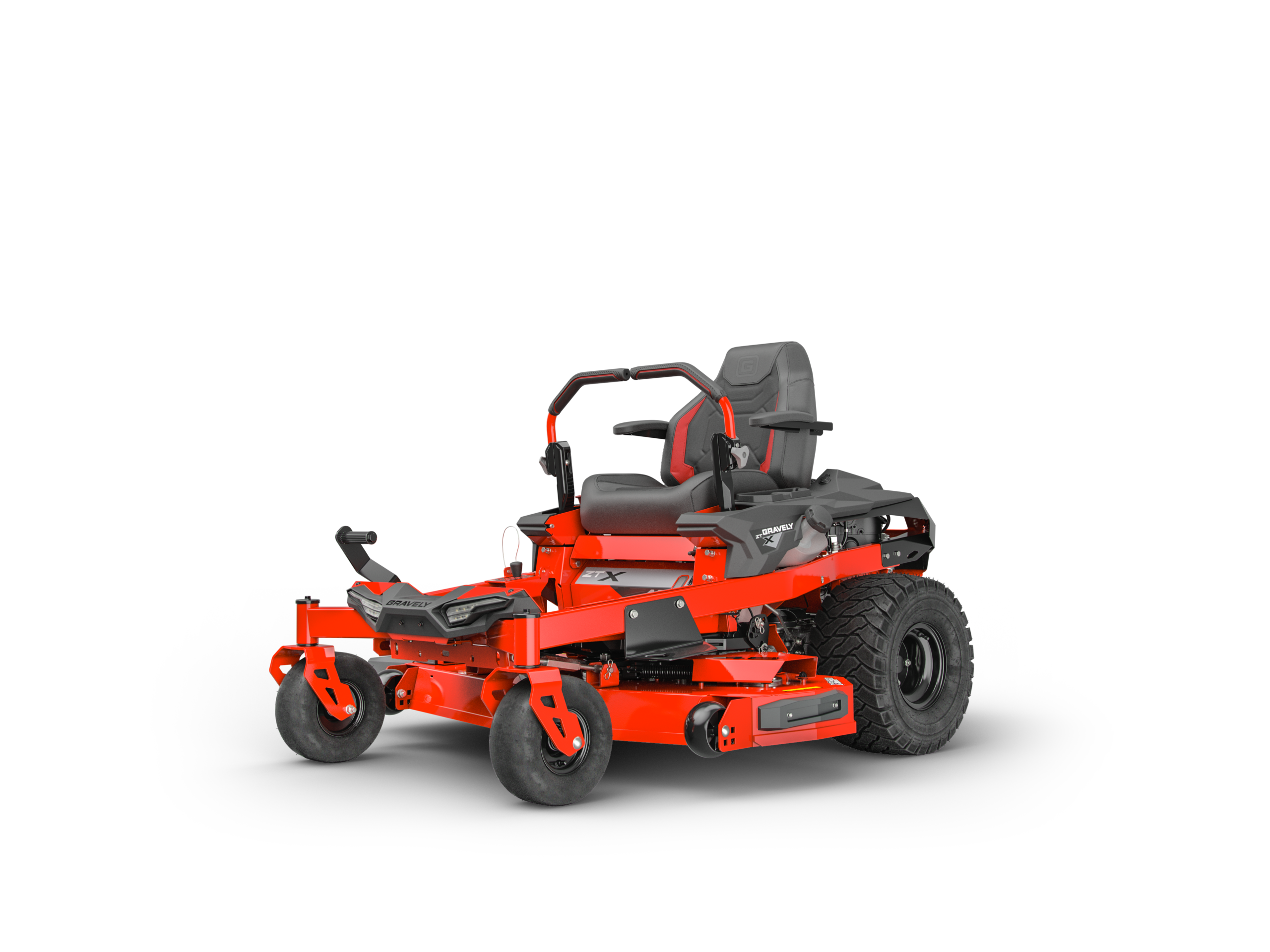

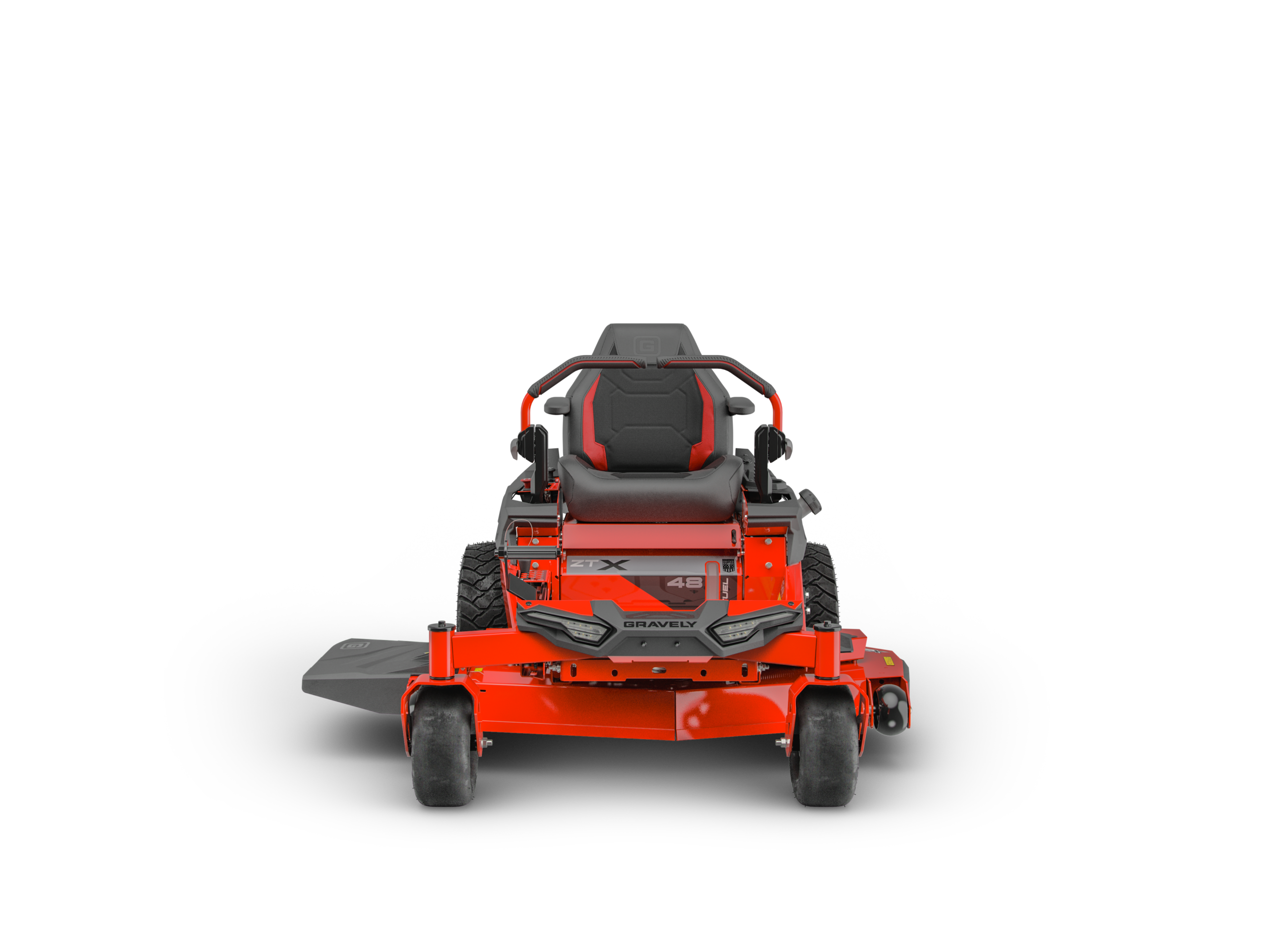

This is the residential lawnmower that’s often mistaken for a commercial mowing machine. It’s no surprise with its heavy-duty construction, professional features, and legendary Gravely performance. When you have a ZT X on your lawn, your neighborhood will know you’re upping your lawn game to the next level.
Power Train
| Model Number | 918009 |
| Engine | Kawasaki FR651V |
| Horsepower | 21.5 |
| Engine Displacement | 44.3 in / 726 cc |
| Fuel System | Gas |
| Fuel Capacity | 3.5 gal / 13.2 ltr |
| Drive System | Hydro-Gear Serviceable EZT Transaxles |
| Transmission Type | Hydrostatic |
| Brake Type | Integrated Parking Brake |
| Driver Position | Sit |
| Ground Speed Forward | 7 mph / 11.3 kph |
| Ground Speed Reverse | 3 mph / 4.8 kph |
| Wheels Front | 11.0 x 6.0 in – 5.0 in (27.9 x 15.2 cm – 27.9 cm) |
| Wheels Rear | 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) |
Electric
| Battery Capacity | 190 CCA |
| Number of Batteries | 1 |
| Battery Voltage | 12 |
| Battery Type | AGM |
| Battery Size | U1 Compatible |
Deck
| Deck Size | 48 in / 121.9 cm |
| Coverage Hour | 3.4 acres / 1.4 hectares |
| Spindle Type | Mechanical |
| Deck Material | 11 ga |
| Deck Construction | Fabricated X-Factor |
| Discharge Configuration | Side |
| Cutting Height Min | 1.5 in / 3.8 cm |
| Cutting Height Max | 4.5 in / 11.4 cm |
| Cutting Width | 48 in / 121.9 cm |
Dimensions
| Weight (assembled) | 679 lb |
| Length | 74.5 in / 189.2 cm |
| Width (Chute Up) | 51.1 in / 129.8 cm |
| Width (Chute Down) | 62.3 in / 158.2 cm |
