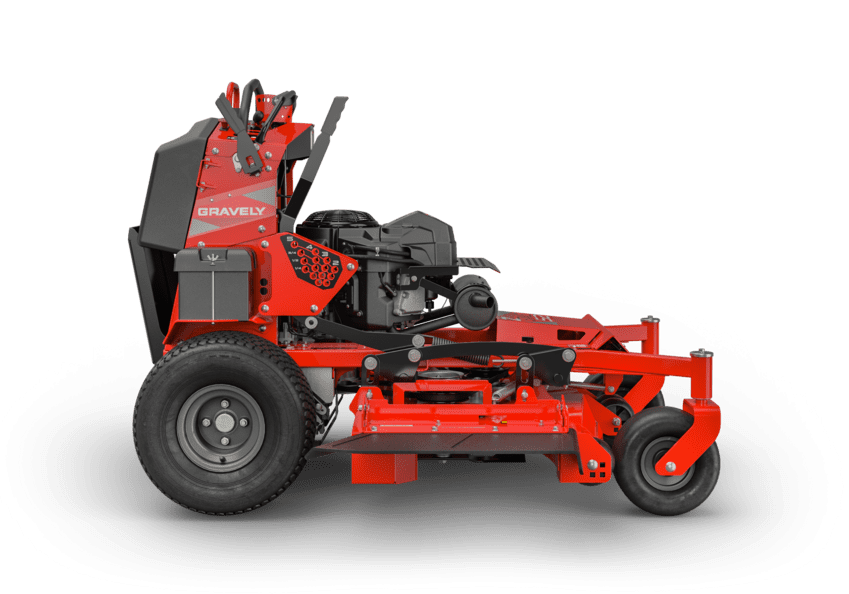

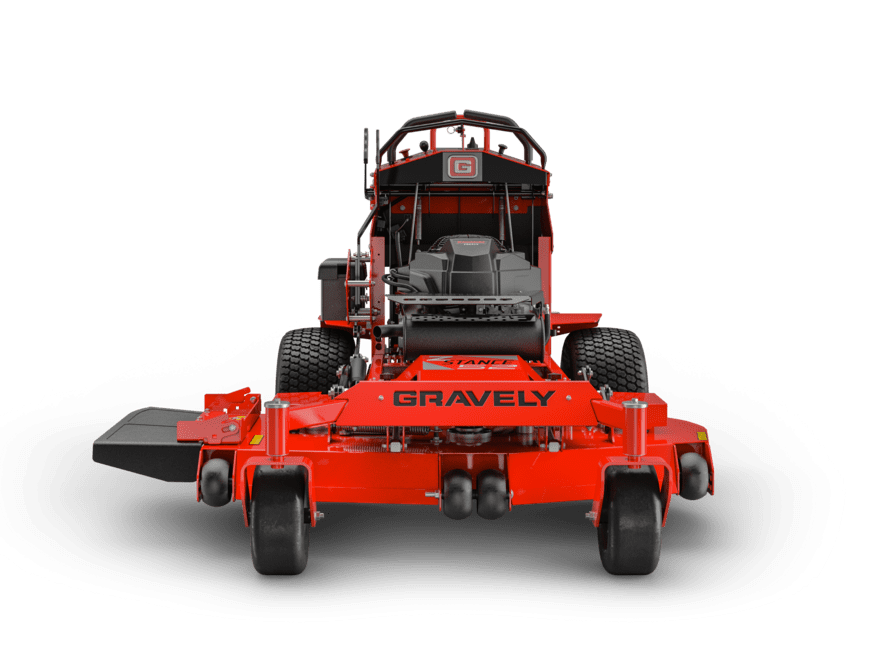

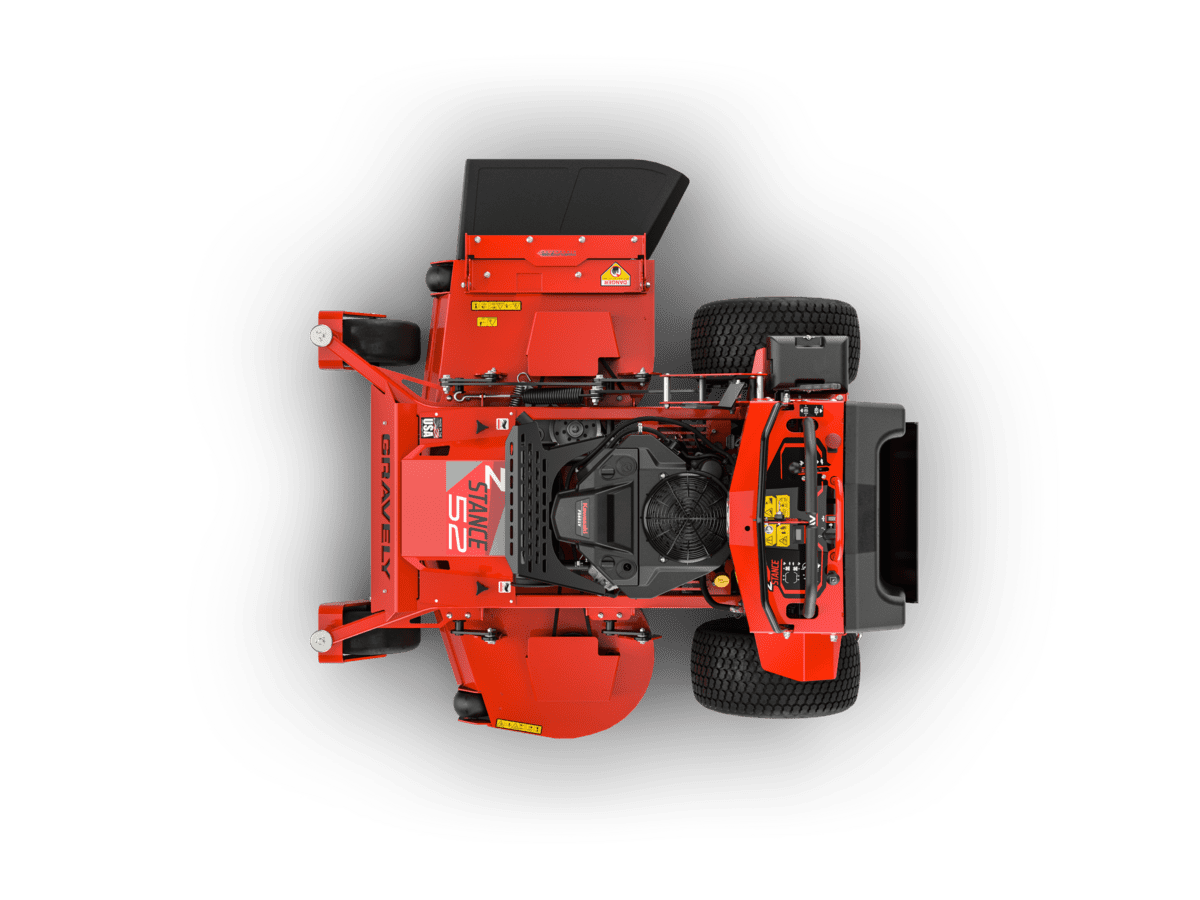

You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It’s three deck sizes make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.
Power Train
| Model Number | 994159 |
| Engine | Kawasaki FS651V |
| Horsepower | 22 |
| Engine Displacement | 44.3 in / 725.9 cc |
| Fuel System | Gas |
| Fuel Capacity | 4.5 gal / 17 ltr |
| Drive System | Hydro-Gear ZT-3100 Transaxles |
| Transmission Type | Hydrostatic |
| Brake Type | Lever Activated Parking |
| Driver Position | Stand |
| Ground Speed Forward | 7 mph / 11.3 kph |
| Ground Speed Reverse | 3 mph / 4.8 kph |
| Wheels Front | 11.0 x 6.0 in – 5.0 in (27.9 x 15.2 cm – 27.9 cm) |
| Wheels Rear | 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) |
| Front Wheel Track | 38.5 in |
| Rear Wheel Track | 46.2 in / 117.3 cm |
Electric
| Charger Type | Standard |
| Battery Capacity | 300 CCA |
| Number of Batteries | 1 |
| Battery Voltage | 12 |
| Battery Type | Lead Acid – Maintenance Free |
| Battery Size | U1 |
Deck
| Deck Size | 48 in / 121.9 cm |
| Coverage Hour | 3.4 acres / 1.4 hectares |
| Spindle Type | Mechanical |
| Deck Material | 10 ga |
| Deck Construction | Fabricated X-Factor 3 |
| Discharge Configuration | Side |
| Cutting Height Min | 1.5 in / 3.8 cm |
| Cutting Height Max | 5 in / 12.7 cm |
| Cutting Width | 48 in / 121.9 cm |
Dimensions
| Weight (assembled) | 744 lb |
| Length | 65.5 in / 166.4 cm |
| Width | 48 in / 121.9 cm |
| Width (Chute Up) | 49.5 in / 125.7 cm |
| Width (Chute Down) | 61 in / 154.9 cm |
