Resources: Official Product Page | Literature | Manual

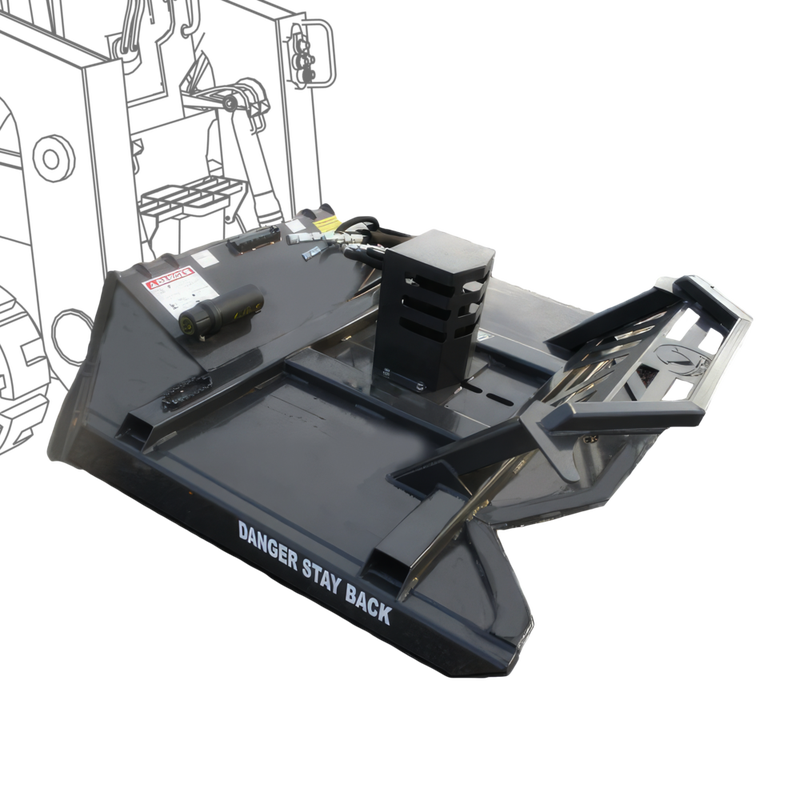

The CID X-treme Tree Reaper combines strength and efficiency. The Tree Reaper has a sleek tapered deck for a slim angled cut and sturdy push bar design. The Tree Reaper can use a 16-26 GPM Gerotor Motor (no case drain required) providing a 5″ cutting capacity, a 17-30 GPM Bent Axis Piston Motor (case drain required) providing a 7″ cutting capacity, and a 30-48 GPM Bent Axis Piston Motor (case drain required) providing a 10″ cutting capacity. This cutter features replaceable skid shoes, three AR400 non-welded blades, and optional mulching teeth for 16-26 GPM and 17-30 GPM models. Mulching teeth come standard on the 30-48 GPM models. This machine is by far one of our favorite attachments and for good reason!
The CID X-treme T ree Reaper combines strength and efficiency. The Direct Drive motors provide all the power, without the restrictions of a gear box. The T ree Reaper uses a 16-26 GPM Gear motor (no case drain required) providing a 5" cutting capacity, or a 17-30 GPM Piston motor (case drain required) providing a 7" cutting capacity. This cutter features replaceable skid shoes, 3x AR400 non-welded blades, optional mulching teeth, and an optional grill. Now offering a NEW 30-48 GPM model with mulching teeth. X-treme Tree Reaper
is 72MT , and 78MT . X-treme Tree Reaper Specs Triple Bolt Single Bolt Weld must be cut to remove bolt. No welding or grinding required. Bolt must be welded after blade change. vs. X-TREME TREE REAPER BLADE ATTACHMENT X-TREME BRUSH CUTTER BLADE ATTACHMENT
- 7" Cutting Capacity
- Replaceable Skid Shoes
- Three 5/8" AR400 Blades
- Blades secured using non-
- Optional Mulching Teeth
- Three Motor Options:
- Sizes available: 60" , 72" , 78"
- Current 30-48 sizing offered
Resources and Diagrams XBC173084MT X-TREME 17-30 GPM BRUSH CUTTER, 84" MULCHING TEETH 17-30 7" 3 Yes XBC273560 X-TREME 27-35 GPM BRUSH CUTTER, 60" 27-35 7" 3 Yes XBC273560MT X-TREME 27-35 GPM BRUSH CUTTER, 60" MULCHING TEETH 27-35 7" 3 Yes MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? XBC273572 X-TREME 27-35 GPM BRUSH CUTTER, 72" 27-35 7" 3 Yes XBC273572MT X-TREME 27-35 GPM BRUSH CUTTER, 72" MULCHING TEETH 27-35 7" 3 Yes XBC273578 X-TREME 27-35 GPM BRUSH CUTTER, 78" 27-35 7" 3 Yes XBC273578MT X-TREME 27-35 GPM BRUSH CUTTER, 78" MULCHING TEETH 27-35 7" 3 Yes XBC273584 X-TREME 27-35 GPM BRUSH CUTTER, 84" 27-35 7" 3 Yes XBC273584MT X-TREME 27-35 GPM BRUSH CUTTER, 84" MULCHING TEETH 27-35 7" 3 Yes XBC304860 X-TREME 30-48 GPM BRUSH CUTTER, 60" 30-48 7" 3 Yes XBC304860MT X-TREME 30-48 GPM BRUSH CUTTER, 60" MULCHING TEETH 30-48 7" 3 Yes XBC304872 X-TREME 30-48 GPM BRUSH CUTTER, 72" 30-48 7" 3 Yes XBC304872MT X-TREME 30-48 GPM BRUSH CUTTER, 72" MULCHING TEETH 30-48 7" 3 Yes XBC304878 X-TREME 30-48 GPM BRUSH CUTTER, 78" 30-48 7" 3 Yes XBC304878MT X-TREME 30-48 GPM BRUSH CUTTER, 78" MULCHING TEETH 30-48 7" 3 Yes XBC304884 X-TREME 30-48 GPM BRUSH CUTTER, 84" 30-48 7" 3 Yes XBC304884MT X-TREME 30-48 GPM BRUSH CUTTER, 84" MULCHING TEETH 30-48 7" 3 Yes MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? TRBC162660 X-TREME TREE REAPER, 60", 16-26 GPM 16-26 5" 3 No TRBC162660MT X-TREME TREE REAPER, 60", 16-26 GPM MULCHING TEETH 16-26 5" 3 No TRBC162672 X-TREME TREE REAPER, 72", 16-26 GPM 16-26 5" 3 No TRBC162672MT X-TREME TREE REAPER, 72", 16-26 GPM MULCHING TEETH 16-26 5" 3 No TRBC162678 X-TREME TREE REAPER, 78", 16-26 GPM 16-26 5" 3 No TRBC162678MT X-TREME TREE REAPER, 78", 16-26 GPM MULCHING TEETH 16-26 7" 3 No TRBC173060 X-TREME TREE REAPER, 60", 17-30 GPM 17-30 7" 3 Yes TRBC173060MT X-TREME TREE REAPER, 60", 17-30 GPM MULCHING TEETH 17-30 7" 3 Yes TRBC173072 X-TREME TREE REAPER, 72", 17-30 GPM 17-30 7" 3 Yes TRBC173072MT X-TREME TREE REAPER, 72", 17-30 GPM MULCHING TEETH 17-30 7" 3 Yes TRBC173078 X-TREME TREE REAPER, 78", 17-30 GPM 17-30 7" 3 Yes TRBC173078MT X-TREME TREE REAPER, 78", 17-30 GPM MULCHING TEETH 17-30 7" 3 Yes TRBC304872MT X-TREME TREE REAPER, 72" HF, 30-48 GPM MULCHING TEETH 30-48 7" 3 Yes TRBC304878MT X-TREME TREE REAPER, 78" HF, 30-48 GPM MULCHING TEETH 30-48 7" 3 Yes MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? SDBAPC72L SEVERE DUTY BENT AXIS PISTON CUTTER, 72", 20-30 GPM 20-30 10" 4 Yes SDBAPC78L SEVERE DUTY BENT AXIS PISTON CUTTER, 78", 20-30 GPM 20-30 10" 4 Yes SDBAPC72H SEVERE DUTY BENT AXIS PISTON CUTTER, 72", 30-50 GPM 20-30 10" 4 Yes SDBAPC78H SEVERE DUTY BENT AXIS PISTON CUTTER, 78", 30-50 GPM 20-30 10" 4 Yes MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? SBCNS SWING BOOM BRUSH CUTTER PISTON MOTOR, 17-30 GPM 17-30 4" 2 Yes SBC SWING BOOM BRUSH CUTTER, 14-20 GPM 14-20 3" 2 No SBC SWING BOOM BRUSH CUTTER, 16-26 GPM 16-26 3" 2 No Severe Duty Brush Cutters Swing Boom Cutters X-Treme Duty Brush Cutters (con't) X-Treme Tree Reaper
