WORKMASTER tractors meet the needs of a wide range of customers. Designed for those with a keen eye for value, the new WORKMASTER 95, 105 and 120 provide unmatched comfort, simplicity and visibility with a low cost of ownership.
| Model | WORKMASTER 105 TIER4 |
| Family | Workmaster 95/105/120 |
| Main Category | 100 HP & Above Tractor |
| Fuel Type | Diesel |
| Gross HP | 112 hp |
| PTO HP | 92 hp |
| Transmission | 12×12 power shuttle |
| Platform | 4WD standard |
| Emissions | Tier 4B |
POWERFULLY EFFICIENT
WORKMASTER 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These free breathing engines use 4 values per cylinder and a high pressure common rail, direct injected, electronically controlled, fuel system to deliver clean, fuel-efficient power.
HIGH-PRODUCTIVITY POWER SHUTTLE
The 12×12 hydraulic power shuttle transmission provides four synchronized gears in three non-synchronized ranges, and a 19-mph (30-kph) travel speed. It is the perfect solution for customers looking for maximum productivity in a utility tractor, or for those who make direction changes often in applications such as loader work.
TRACTION ENHANCING FOUR-WHEEL DRIVE (4WD)
Every WORKMASTER comes standard with traction enhancing four-wheel drive (4WD) as standard equipment to help power you through tough spots.
INDEPENDENT POWER TAKE OFF (PTO)
WORKMASTER 95, 105 and 120 tractors feature a robustly designed, fully independent, multi-plate wet clutch PTO (power take off) for years of reliable service. Choose from 540-rpm, 540-rpm with fuel saving 540E (economy) or reversible 540/1000 rpm to best suit your implements and attachments.

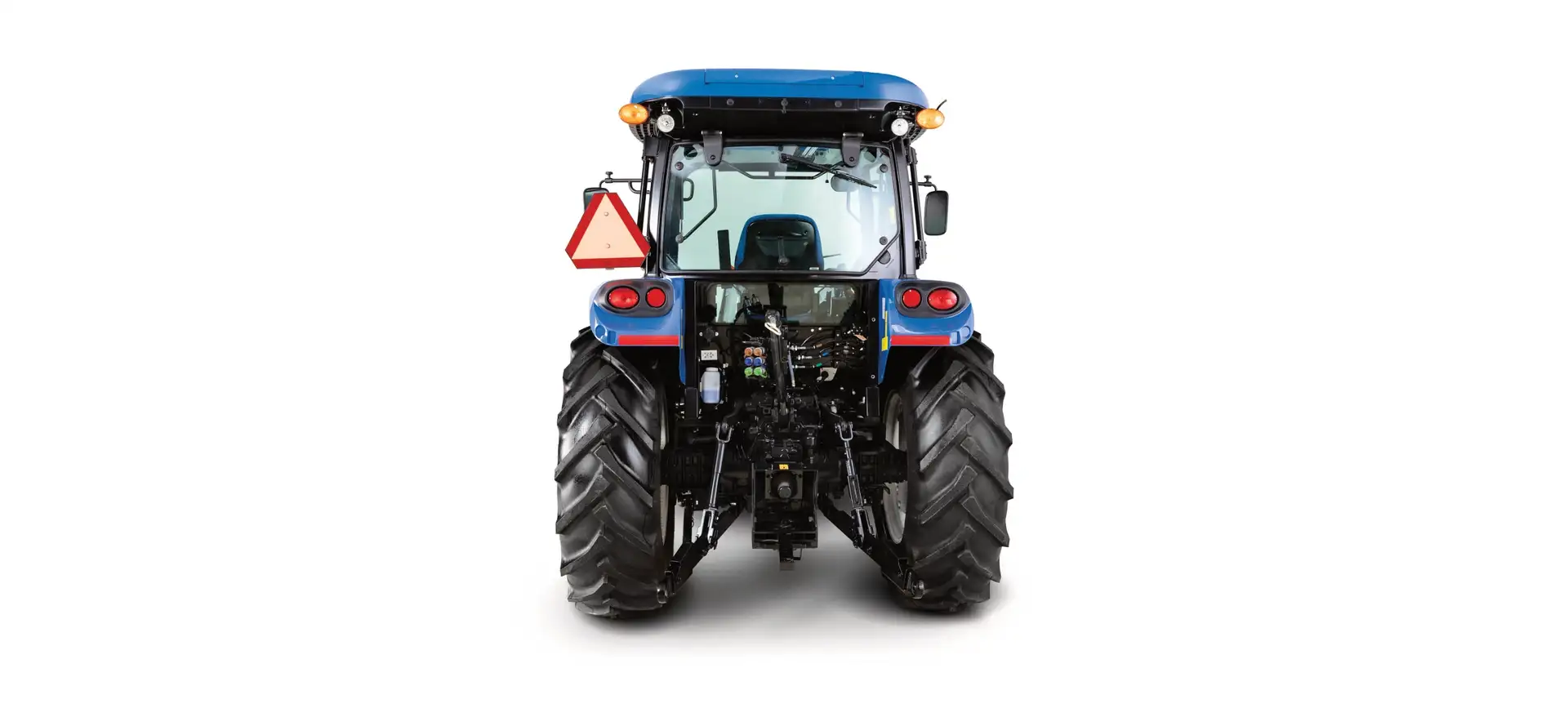

HEAVY-DUTY DESIGN, EASY HOOK-UP
A 3,200-pound rear hitch lift capacity allows your WORKMASTER tractor to handle large implements while standard draft control allows more efficient use of ground engaging tools. Add the optional auxiliary lift ram to increase capacity to 6,200 pounds. Standard draft control, flexible link ends and telescopic stabilizers make implement hookup a breeze.
BEST-IN-CLASS VALUE CAB
Value and comfort are not mutually exclusive. The all-weather WORKMASTER four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs. The wide-entry and flat deck allows for easy entry and exit and provides added foot room. There’s comfortable seating for two with a cloth high-back, air suspension seat and instructor seat that folds back for additional storage when not in use.

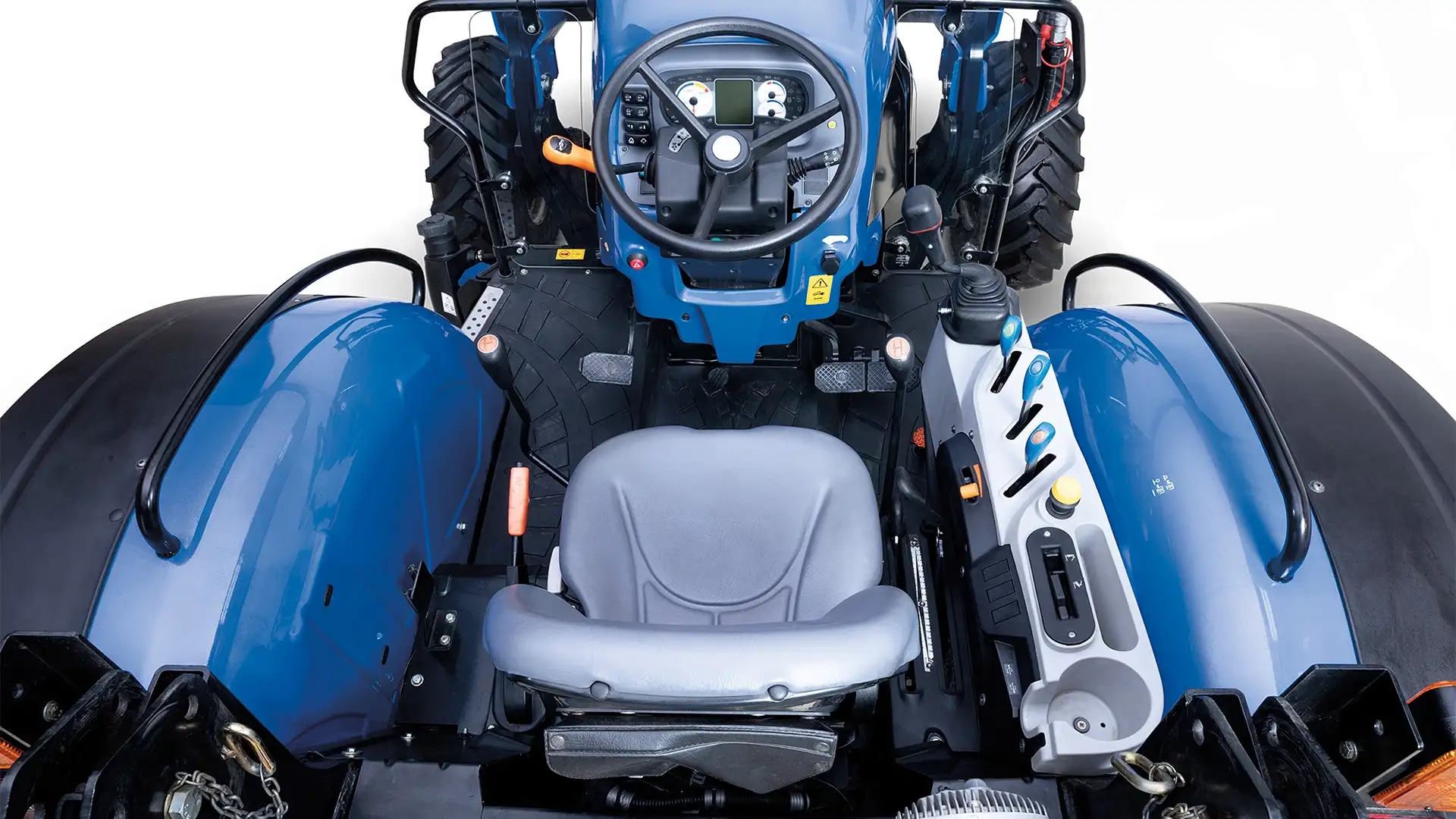

COMFORTABLE OPEN STATION PLATFORM
For added economy, a flat-deck all purpose ROPS platform configuration is available. The semi-straddle platform is ergonomically designed to ensure all-day comfort. The right-hand console contains most controls close to the operator, with more commonly used controls right up front where needed. This console also contains a cup holder, cell phone slot and two USB ports, so you can stay hydrated and connected throughout the day.

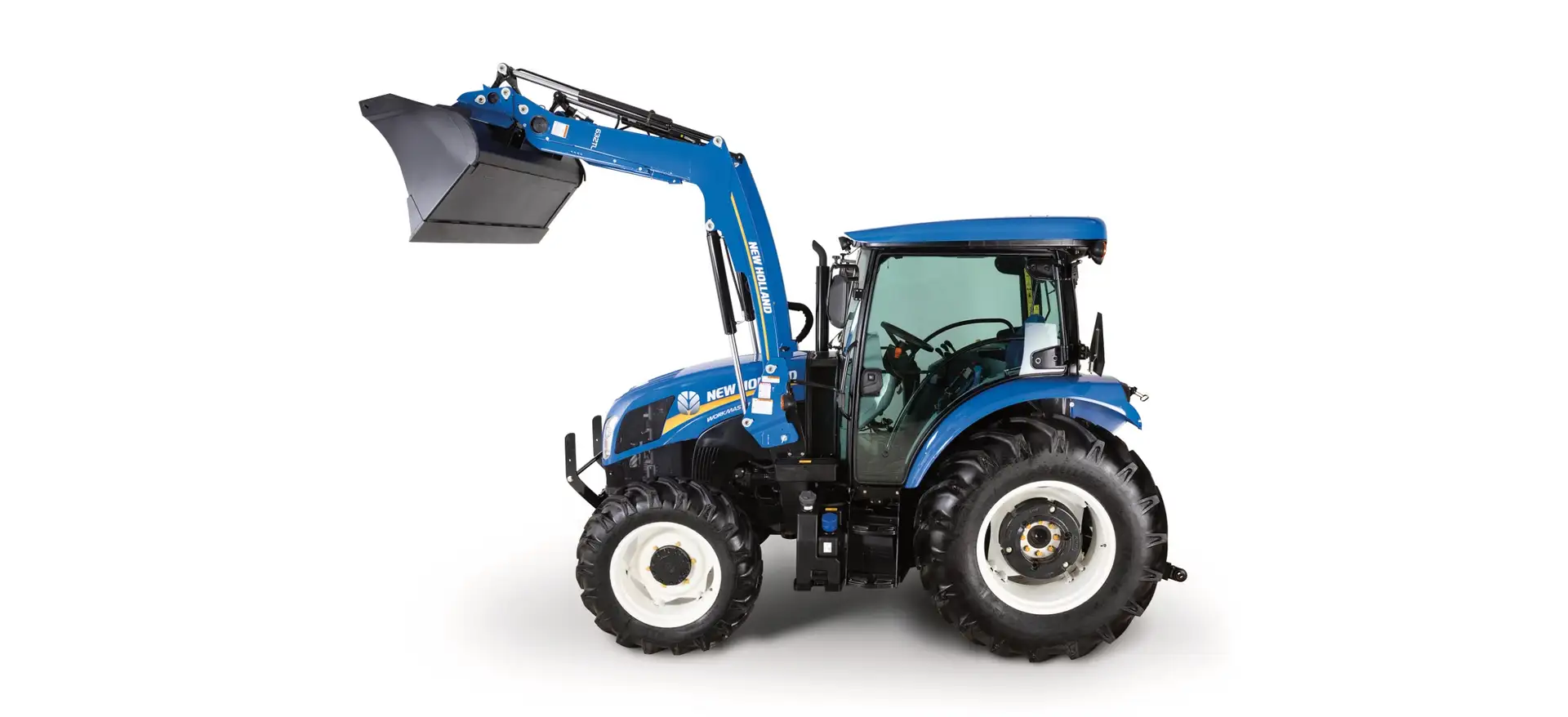

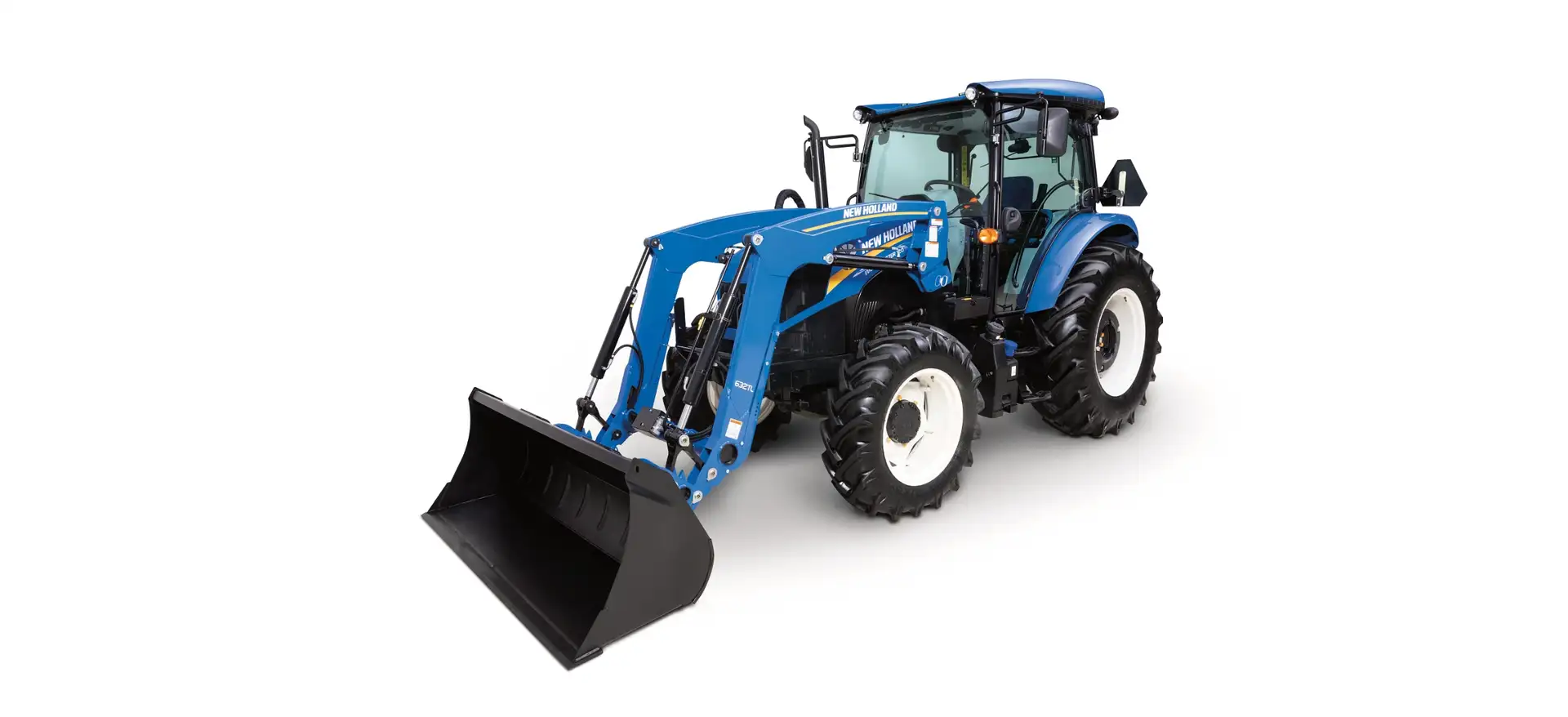

PERFORMANCE MATCHED LOADER
WORKMASTER utility tractors are ideal loader tractors. Installed at the New Holland factory, the non self-leveling 632TL front loader integrates perfectly with the WORKMASTER 95, 105 and 120. A mechanical self-leveling 637TL is also available for those who want to enhance their productivity.
EASY SERVICING
A WORKMASTER is the best tractor for saving you time and money when it comes to maintenance. Convenient access to service points makes fueling up and performing routine maintenance quick and easy. Even when a loader is attached, it’s easy to get under the hood of your WORKMASTER. Just open the hood to access the engine, radiator, air cleaner and more.
TOP MAINTAIN: PLANNED MAINTENANCE AGREEMENT
Top Maintain is designed to provide a simple and flexible solution to guarantee equipment’s maintenance needs are taken care of to keep operations flowing and performing at its maximum efficiency. A Top Maintenance plan provides the ability to gain a dealership’s best in class support for the longevity of an equipment’s lifecycle while being able to lock in maintenance costs at the current market rate during the time of purchase. Why is a Top Maintain plan an important investment? Guarantees equipment gets the recommended maintenance components at the recommended service intervals Provides additional touchpoints with your dealership while technicians can perform a quick machine inspection during each service interval Enables equipment uptime which ensures longevity of performance and efficiency Provides peace of mind that equipment is getting the proper maintenance at the proper timeframe Save on inflationary maintenance costs by locking in costs at time of purchase
| BEST-IN-CLASS VALUE CAB | Value and comfort are not mutually exclusive. The all-weather WORKMASTER four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs. |

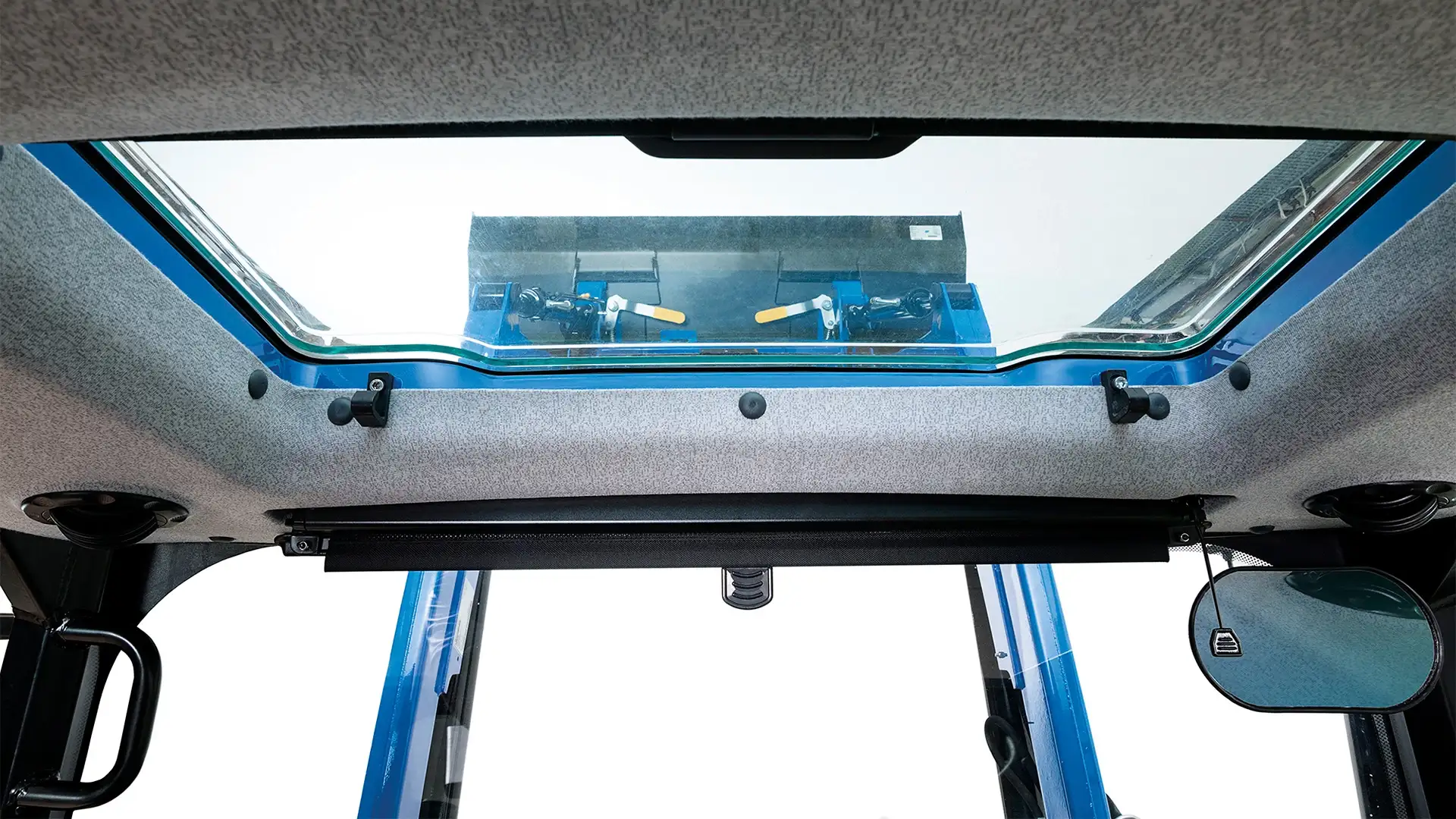

| EXCEPTIONAL VIEW | Enjoy the added ease and confidence that come with an exceptional view to your work. The WORKMASTER cab boasts 316-degree visibility and an optional high-visibility roof panel, so you can look overhead to a raised loader when stacking or dumping. |
| POWERFULLY EFFICIENT | WORKMASTER 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These engines are Tier 4B emission compliant, and deliver clean, fuel-efficient power. |
| HIGH-PRODUCTIVITY POWER SHUTTLE | The 12×12 transmission with steering column mounted hydraulic power shuttle provides fingertip access during jobs that require frequent forward-reverse shifting, like loading, grading and mowing. |
