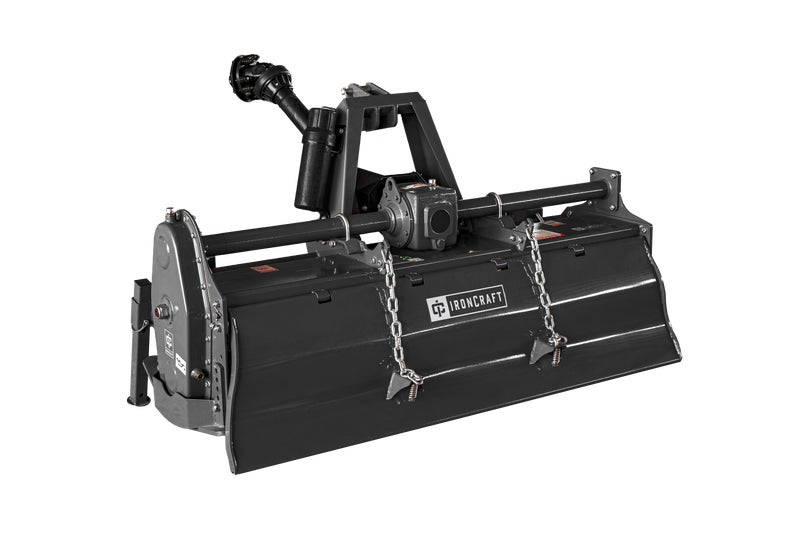

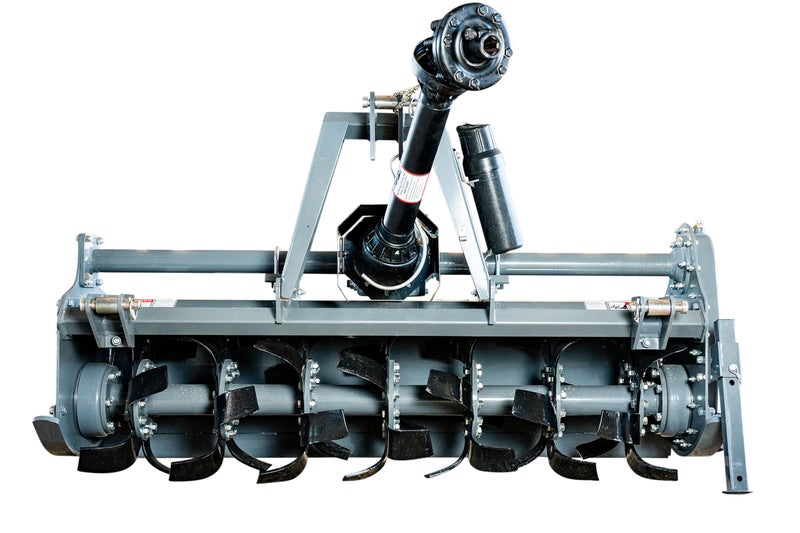

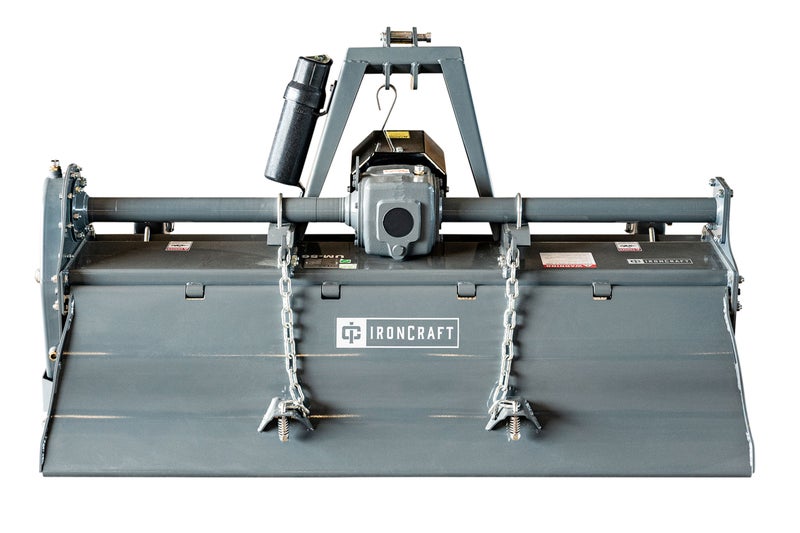

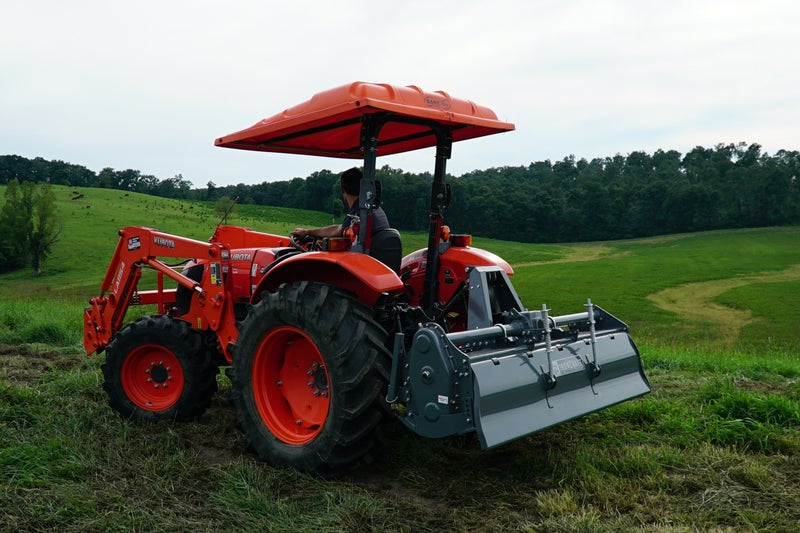

The UM Rotary Tiller is medium-duty and dependable, able to work demanding soils like vineyards or orchards. The UM series is suitable for tractors from 25 to 50 horsepower with a category 1 hitch.
Model Specs
UM-56
| Product Family | UM Series |
| Product | UM-56 |
| Description | 60" Medium Duty Gear Drive Tiller |
| Rotation | Forward |
| RPM | 540 |
| HP Required | 25 – 50 |
| Working Width | 60" |
| Max Working Depth | 7" |
| # of Flanges on Rotor | 7 |
| # of Tines per Flange | 6 |
| Total # of Tines | 42 |
| Rotor Thickness or Diameter | 3" |
| Rotor Swing Diameter | 17" |
| Overall Width | 65" |
| Weight (lbs) | 578 lbs |
| Hitch | Cat 1 |
UM-72
| Product Family | UM Series |
| Product | UM-72 |
| Description | 72" Medium Duty Gear Drive Tiller |
| Rotation | Forward |
| RPM | 540 |
| HP Required | 25 – 50 |
| Working Width | 73" |
| Max Working Depth | 7" |
| # of Flanges on Rotor | 9 |
| # of Tines per Flange | 6 |
| Total # of Tines | 54 |
| Rotor Thickness or Diameter | 3" |
| Rotor Swing Diameter | 17" |
| Overall Width | 78" |
| Weight (lbs) | 684 lbs |
| Hitch | Cat 1 |
