Resources: Official Product Page | Literature | Manual

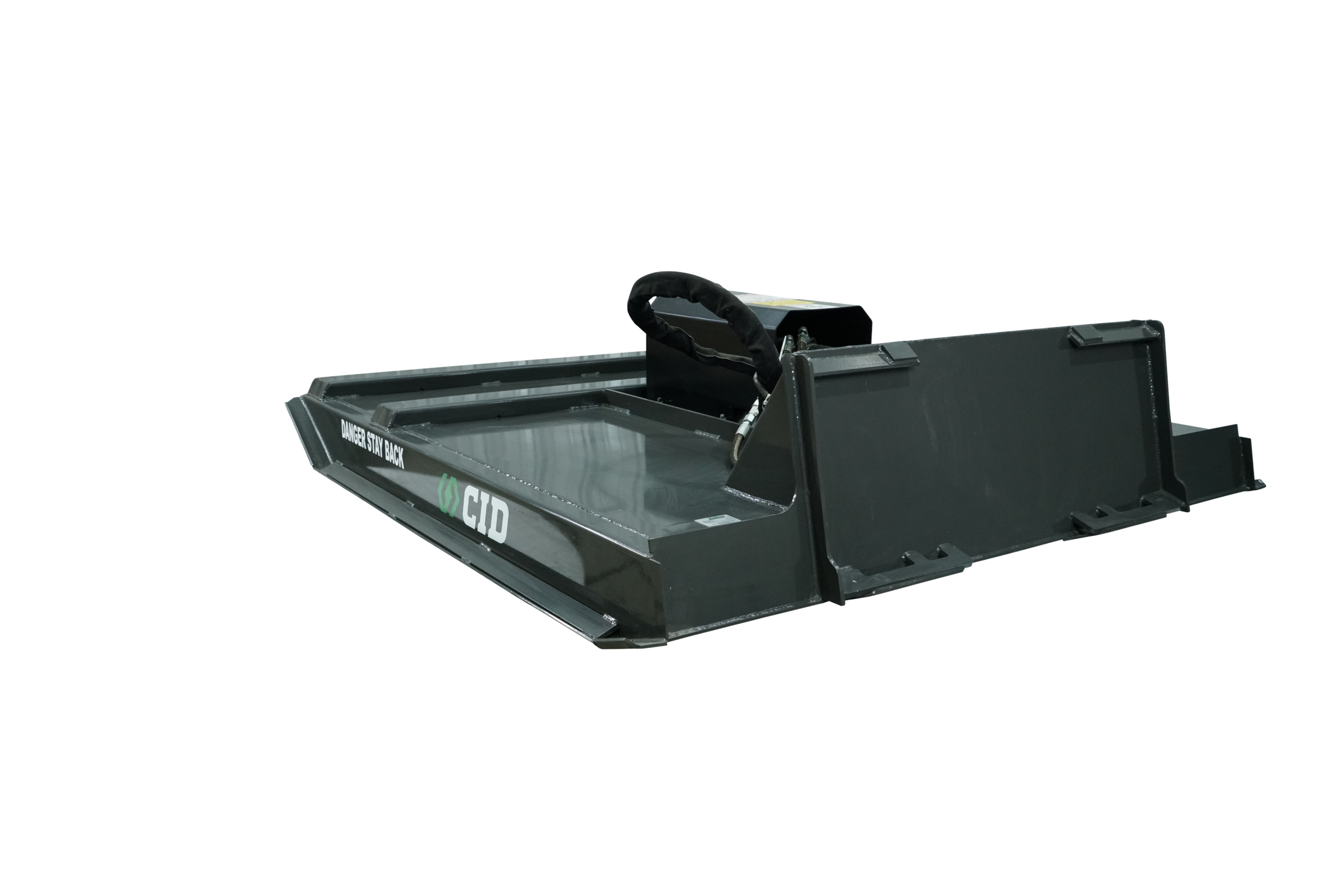

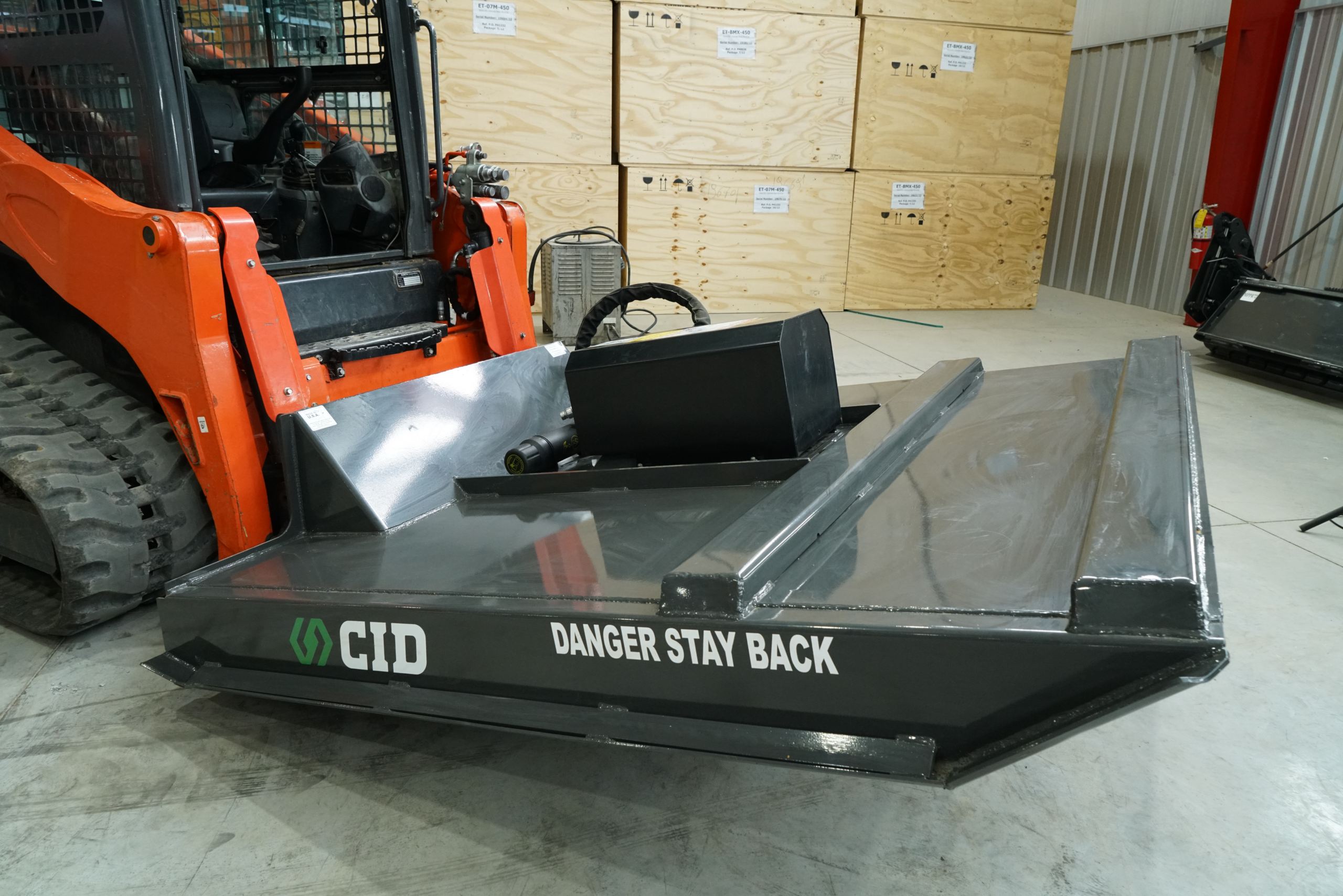

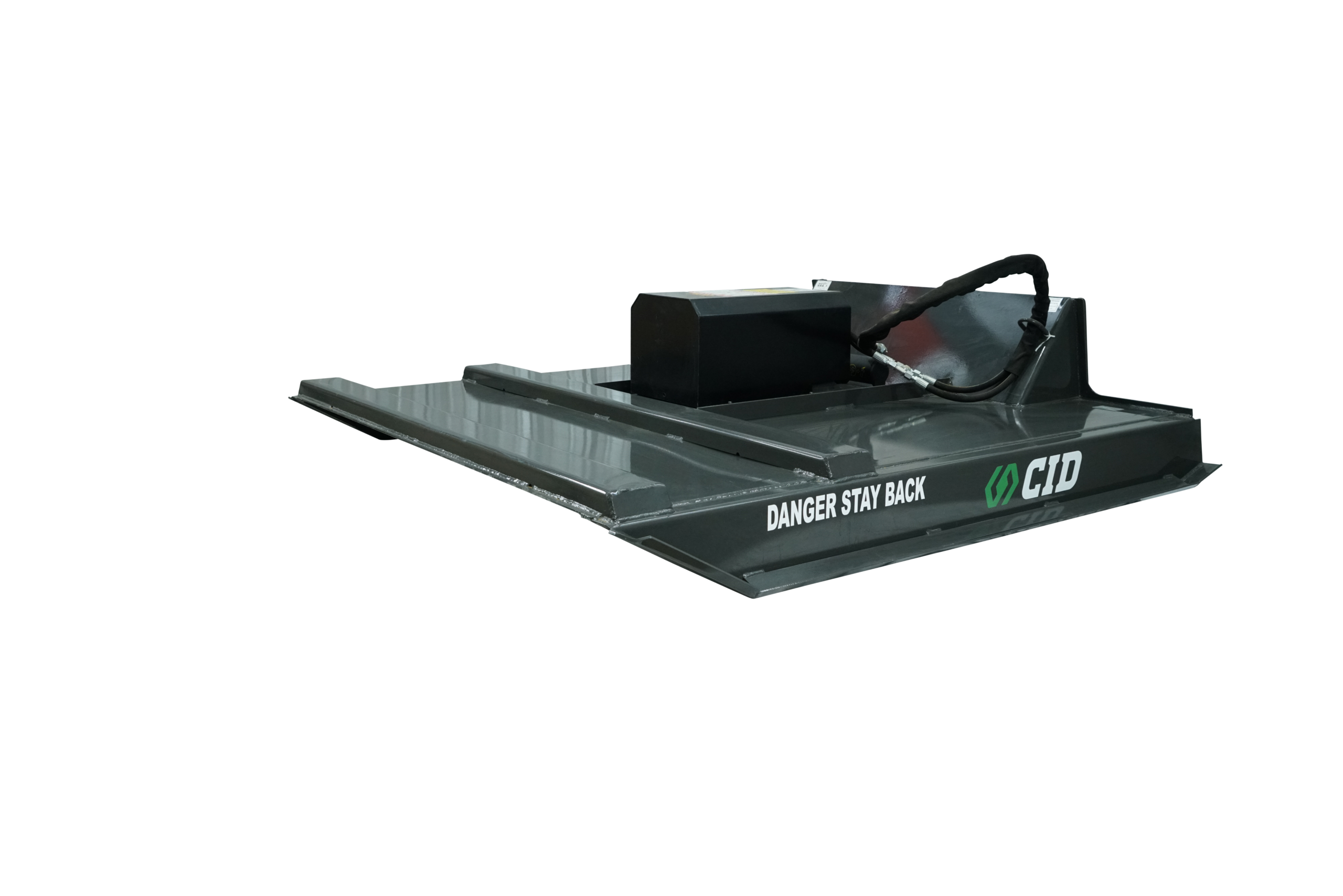

Our Standard Duty Brush Cutter comes with a 60″ or 72″ mowing deck and features two blades, a 40 HP gearbox, and a stump jumper. It requires a flow of 11–20 GPM. An optional mesh grill is available for the open front. Please note, the one-year warranty does not cover the blades or hoses.
Standard Low Flow Brush Cutter 11 – 20 GPM
Standard Duty Brush Cutters Our Standard Duty Brush Cutter cvomes with a 60", 72", or 78" mowing deck. It features 2 blades, a 40HP gear box and stump jumper. A flow of 11-20 gpm is required. Mesh grill is now standard on all with an open front. The one year warranty does not cover the blades or hoses. Standard Low Flow Brush Cutter Specs motor gearbox coupler cover / guard STUMPJUMPER 21.26" motorgearbox couplercover / guard STUMPJUMPER 21.26"QA SIDE FORMED QA PLATE Open Front Standard With Open Front *78" is a fabricated bar style blade.
- 3" cutting capacity
- 3/16" deck with 3/8" A36 reinforced sides
- 40HP right angle gear box
- 2 blades with stump jumper
- High torque motor with built in relief valve
- Does not require a case drain
Resources and Diagrams MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? SBC60 STANDARD BRUSH CUTTER 60" 14-20 3" 2 No SBC72 STANDARD BRUSH CUTTER 72" 14-20 3" 2 No SOFBC60 STANDARD OPEN FRONT BRUSH CUTTER 60" 14-20 3" 2 No SOFBC72 STANDARD OPEN FRONT BRUSH CUTTER 72" 14-20 3" 2 No MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? HDBCNS60-2 HEAVY DUTY BRUSH CUTTER, 60", 2 BLADE 14-20 4" 2 No HDBCNS60-3 HEAVY DUTY BRUSH CUTTER, 60", 3 BLADE 14-20 4" 3 No HDBCNS72-2 HEAVY DUTY BRUSH CUTTER, 72", 2 BLADE 14-20 4" 2 No HDBCNS72-3 HEAVY DUTY BRUSH CUTTER, 72", 3 BLADE 14-20 4" 3 No HDBCNS78-2 HEAVY DUTY BRUSH CUTTER, 78", 2 BLADE 14-20 4" 2 No HDBCNS78-3 HEAVY DUTY BRUSH CUTTER, 78", 3 BLADE 14-20 4" 3 No MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? XBC60LF X-TREME 14-20 GPM BRUSH CUTTER, 60" 14-20 6" 3 No XBC60LFMT X-TREME 14-20 GPM BRUSH CUTTER, 60", MULCHING TEETH 14-20 6" 3 No XBC72LF X-TREME 14-20 GPM BRUSH CUTTER, 72" 14-20 6" 3 No XBC72LFMT X-TREME 14-20 GPM BRUSH CUTTER, 72", MULCHING TEETH 14-20 6" 3 No XBC78LF X-TREME 14-20 GPM BRUSH CUTTER, 78" 14-20 6" 3 No XBC78LFMT X-TREME 14-20 GPM BRUSH CUTTER, 78" MULCHING TEETH 14-20 6" 3 No XBC84LF X-TREME 14-20 GPM BRUSH CUTTER, 84" 14-20 6" 3 No XBC84LFMT X-TREME 14-20 GPM BRUSH CUTTER, 84" MULCHING TEETH 14-20 6" 3 No XBC60MF X-TREME 20-30 GPM BRUSH CUTTER, 60" 20-30 6" 3 No XBC60MFMT X-TREME 20-30 GPM BRUSH CUTTER, 60" MULCHING TEETH 20-30 6" 3 No XBC72MF X-TREME 20-30 GPM BRUSH CUTTER, 72" 20-30 6" 3 No XBC72MFMT X-TREME 20-30 GPM BRUSH CUTTER, 72" MULCHING TEETH 20-30 6" 3 No XBC78MF X-TREME 20-30 GPM BRUSH CUTTER, 78" 20-30 6" 3 No XBC78MFMT X-TREME 20-30 GPM BRUSH CUTTER, 78" MULCHING TEETH 20-30 6" 3 No XBC84MF X-TREME 20-30 GPM BRUSH CUTTER, 84" 20-30 6" 3 No XBC84MFMT X-TREME 20-30 GPM BRUSH CUTTER, 84" MULCHING TEETH 20-30 6" 3 No XBC162660 X-TREME 16-26 GPM BRUSH CUTTER,60" 16-26 6" 3 No XBC162660 X-TREME 16-26 GPM BRUSH CUTTER,60" MULCHING TEETH 16-26 6" 3 No XBC162672 X-TREME 16-26 GPM BRUSH CUTTER,72" 16-26 6" 3 No XBC162672 X-TREME 16-26 GPM BRUSH CUTTER,72" MULCHING TEETH 16-26 6" 3 No XBC162678 X-TREME 16-26 GPM BRUSH CUTTER,78" 16-26 6" 3 No XBC162678 X-TREME 16-26 GPM BRUSH CUTTER,78" MULCHING TEETH 16-26 6" 3 No XBC162684 X-TREME 16-26 GPM BRUSH CUTTER,84" 16-26 6" 3 No XBC162684 X-TREME 16-26 GPM BRUSH CUTTER,84" MULCHING TEETH 16-26 6" 3 No MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? XBC173060 X-TREME 17-30 GPM BRUSH CUTTER, 60" 17-30 6" 3 Yes XBC173060MT X-TREME 17-30 GPM BRUSH CUTTER, 60" MULCHING TEETH 17-30 7" 3 Yes XBC173072 X-TREME 17-30 GPM BRUSH CUTTER, 72" 17-30 7" 3 Yes XBC173072MT X-TREME 17-30 GPM BRUSH CUTTER, 72" MULCHING TEETH 17-30 7" 3 Yes XBC173078 X-TREME 17-30 GPM BRUSH CUTTER, 78" 17-30 7" 3 Yes XBC173078MT X-TREME 17-30 GPM BRUSH CUTTER, 78" MULCHING TEETH 17-30 7" 3 Yes XBC173084 X-TREME 17-30 GPM BRUSH CUTTER, 84" 17-30 7" 3 Yes Standard Duty Brush Cutters Heavy Duty Brush Cutters X-Treme Duty Brush Cutters X-Treme Duty Piston Cutters
