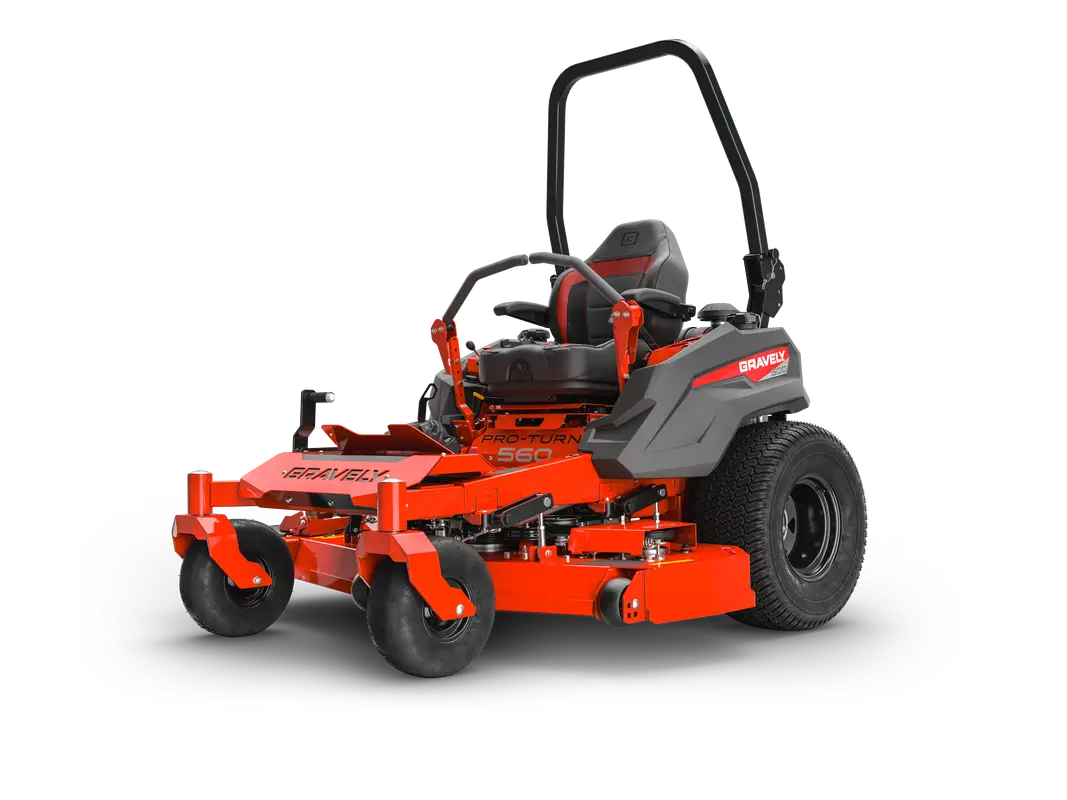

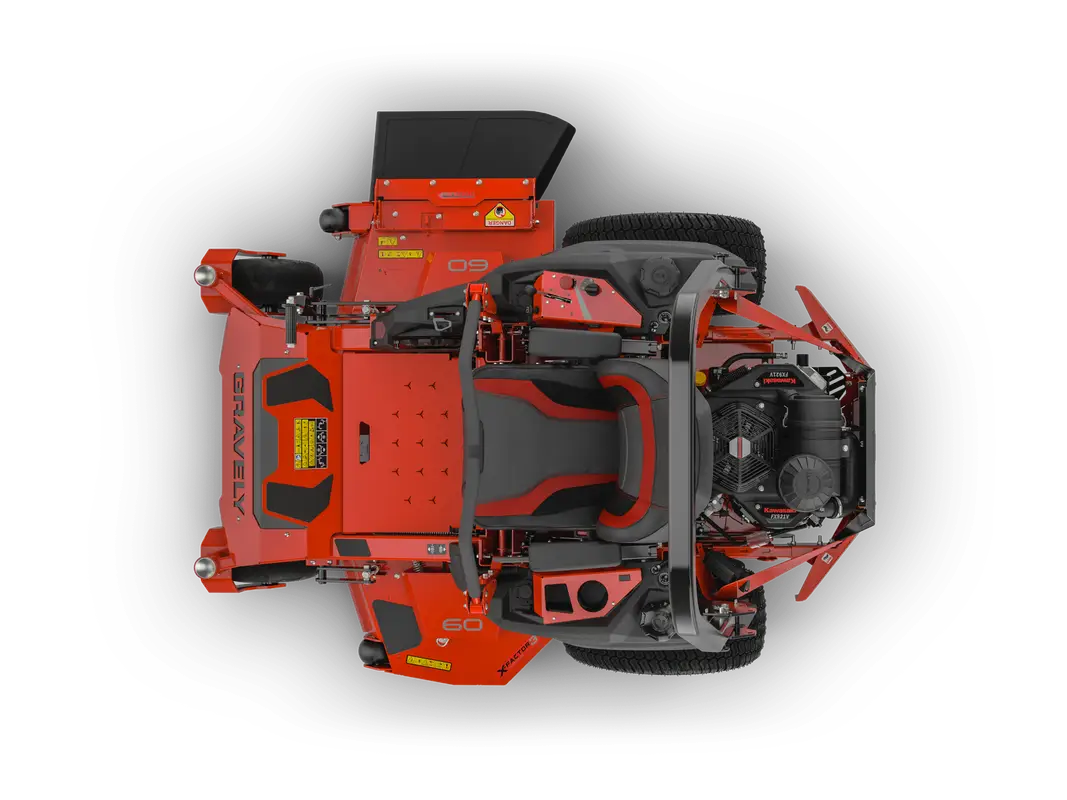

This is the Pro-Turn 500. A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the Pro-Turn 500 the better choice.
Power Train
| Model Number | 992534 |
| Engine | Kawasaki FX1000V |
| Horsepower | 31 |
| Engine Displacement | 999 cc |
| Power Brand | Kawasaki |
| Fuel System | Gas |
| Fuel Capacity | 13.4 gal / 50.7 ltr |
| Drive System | Parker HTJ |
| Transmission Type | Hydrostatic |
| Brake Type | Lever Activated Parking |
| Driver Position | Sit |
| Ground Speed Forward | 15 mph / 24.1 kph |
| Ground Speed Reverse | 6 mph / 9.7 kph |
| Wheels Front | 15.0 x 6.0 in – 6.0 in (38.1 x 15.2 cm – 38.1 cm) |
| Wheels Rear | 12.0 x 12.0 in – 30.5 in (30.5 x 30.5 cm – 77.5 cm) |
| Rear Wheel Track | 55 in / 139.7 cm |
Electric
| Battery Capacity | 300 CCA |
| Battery Type | Lead Acid – Maintenance Free |
| Battery Size | U1 |
Deck
| Deck Size | 60 in / 152.4 cm |
| Coverage Hour | 9 acres / 3.6 hectares |
| Spindle Type | Mechanical |
| Deck Material | 7 ga |
| Deck Construction | Fabricated X-Factor 3 |
| Discharge Configuration | Side |
| Cutting Height Min | 1 in / 2.5 cm |
| Cutting Height Max | 5.5 in / 14 cm |
| Cutting Width | 60 in / 152.4 cm |
Dimensions
| Weight (assembled) | 1495 lb |
| Length | 84 in / 213.4 cm |
| Width | 60 in / 152.4 cm |
| Width (Chute Up) | 63 in / 160 cm |
| Width (Chute Down) | 75 in / 190.5 cm |
