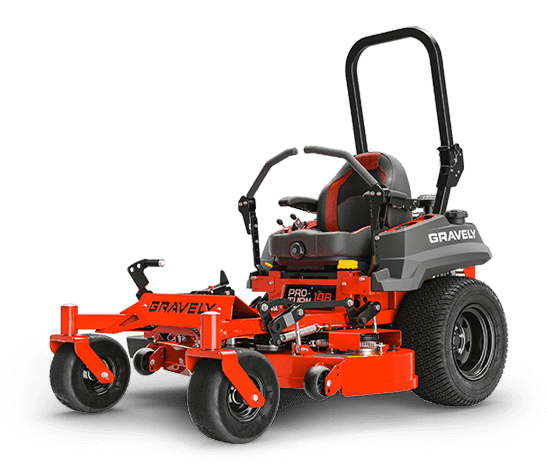

Put your best foot forward with the power and performance of the PRO-TURN 100. Every inch is of value on the PRO-TURN 100. Packed with Gravely brand’s time-tested features, this hard-working mower stands up to your toughest jobs.
Power Train
| Model Number | 991128 |
| Engine | Kawasaki FX691V |
| Horsepower | 22 |
| Engine Displacement | 44.3 in / 726 cc |
| Fuel System | Gas |
| Fuel Capacity | 10 gal / 37.9 ltr |
| Drive System | Hydro-Gear ZT-3400 Transaxles |
| Transmission Type | Hydrostatic |
| Brake Type | Lever Activated Parking |
| Driver Position | Sit |
| Ground Speed Forward | 10 mph / 16.1 kph |
| Ground Speed Reverse | 5 mph / 8 kph |
| Wheels Front | 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) |
| Wheels Rear | 23.0 x 10.5 in – 12.0 in (58.4 x 26.7 cm – 30.5 cm) |
Electric
| Battery Capacity | 300 CCA |
| Battery Type | Lead Acid – Maintenance Free |
| Battery Size | U1 |
Deck
| Deck Size | 48 in / 121.9 cm |
| Coverage Hour | 4.8 acres / 1.9 hectares |
| Deck Material | 7 ga |
| Deck Construction | Fabricated X-Factor 2 |
| Discharge Configuration | Side |
| Cutting Height Min | 1 in / 2.5 cm |
| Cutting Height Max | 5 in / 12.7 cm |
| Cutting Width | 48 in / 121.9 cm |
Dimensions
| Weight (assembled) | 1062 lb |
| Length | 78.5 in / 199.4 cm |
| Width | 48 in / 121.9 cm |
| Width (Chute Up) | 50 in / 127 cm |
| Width (Chute Down) | 62 in / 157.5 cm |
