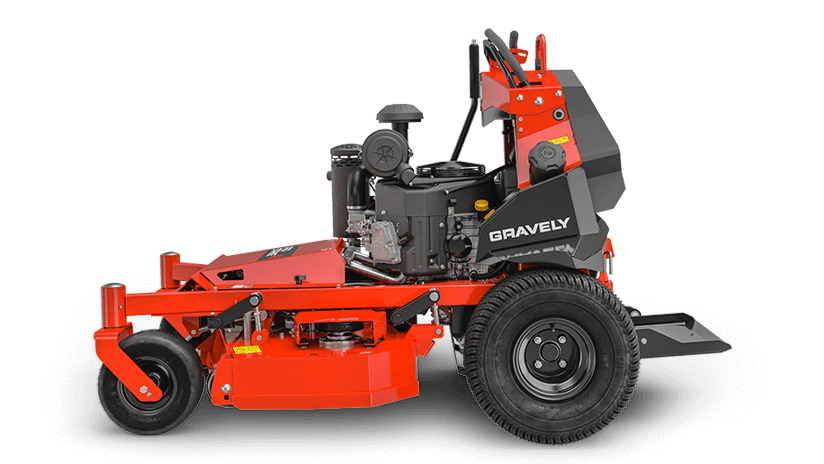

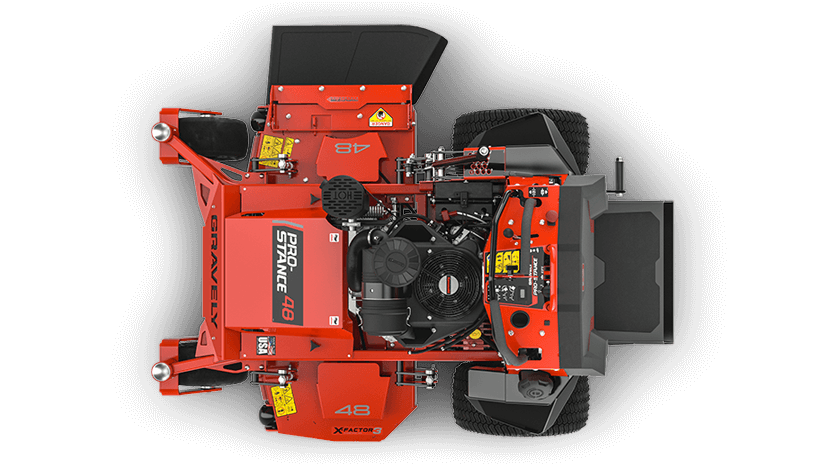

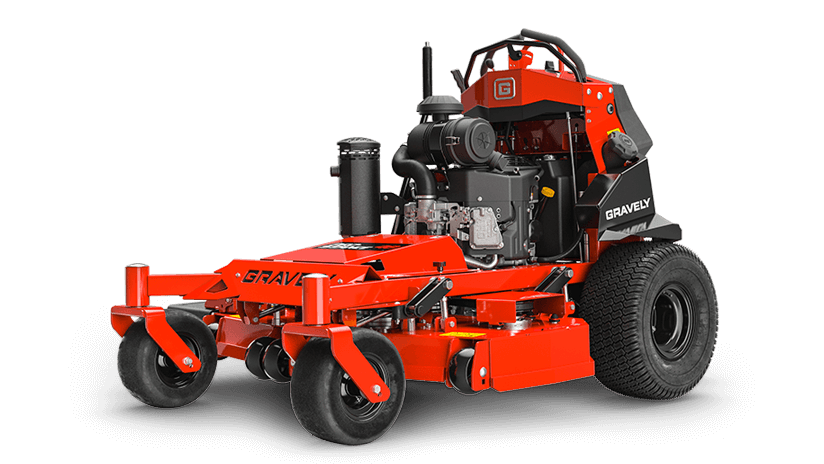

Take on hills with confidence on the redesigned PRO-STANCE. With redistributed weight and lowered center of gravity, the PRO-STANCE offers versatility with a range of deck sizes. The redesigned PRO-STANCE will ensure you maximize your investment.
Power Train
| Model Number | 994161 |
| Engine | Kawasaki FX730V |
| Horsepower | 23.5 |
| Engine Displacement | 44.3 in / 725.9 cc |
| Fuel System | Gas |
| Fuel Capacity | 9 gal / 34.1 ltr |
| Drive System | Hydro-Gear ZT-3400 Transaxles |
| Transmission Type | Hydrostatic |
| Brake Type | Lever Activated Parking |
| Driver Position | Stand |
| Ground Speed Forward | 9 mph / 14.5 kph |
| Ground Speed Reverse | 3 mph / 4.8 kph |
| Wheels Front | 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) |
| Wheels Rear | 20.0 x 10.5 in – 8.0 in (50.8 x 26.7 cm – 20.3 cm) |
Electric
| Battery Capacity | 300 CCA |
| Number of Batteries | 1 |
| Battery Voltage | 12 |
| Battery Type | Lead Acid – Maintenance Free |
| Battery Size | U1 |
Deck
| Deck Size | 48 in / 121.9 cm |
| Coverage Hour | 4.3 acres / 1.7 hectares |
| Spindle Type | Mechanical |
| Deck Material | 7 ga |
| Deck Construction | Fabricated X-Factor 3 |
| Discharge Configuration | Side |
| Cutting Height Min | 1.5 in / 3.8 cm |
| Cutting Height Max | 5 in / 12.7 cm |
| Cutting Width | 48 in / 121.9 cm |
Dimensions
| Weight (assembled) | 875 lb |
| Length | 60.6 in / 154 cm |
| Width | 48 in / 121.9 cm |
| Height | 48 in / 121.9 cm |
| Width (Chute Up) | 50 in / 127 cm |
| Width (Chute Down) | 63.2 in / 160.5 cm |
