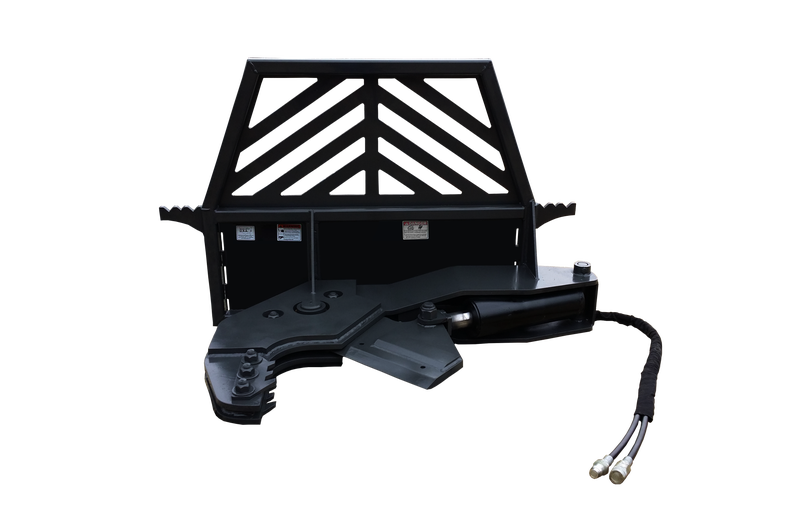

Our X-treme (Non-Rotating) Tree Shear has a 5″ bore cylinder that can generate up to 40 tons of shearing force. It is constructed with a 1″ thick AR400 blade, which gives you the ability to cut up to 12″ diameter trees and logs. It’s design forces trees to fall consistently to the right, allowing the operator to accurately position where the tree will land.
Available with universal, 7 pin, 8 pin, or 14 pin wiring harness X-treme Rotating Tree Shear Our X-treme Rotating T ree Shear has a 5" cylinder that can generate up to 40 tons of shearing force. It is constructed with a 1" thick AR400 blade, which gives you the ability to cut up to 12" diameter trees and logs. It features a 90 degree rotation that is offered in manual or hydraulic. (Note: manual is a two man operation.) It’s design forces trees to fall consistently to the right, allowing the operator to accurately position where the tree will land. X-treme Rotating Tree Shear Specs ø 12" ø 12" Hydraulic Rotating Tree ShearManual Rotating Tree Shear Pull pin to rotate.
- Cuts 12" diameter trees
- 1" thick AR400 blade
- 40 tons of shearing force
- Hydraulic tree shear powered by a 5" x 12" cylinder
- 90 degree rotation offered in manual or hydraulic
X-treme Tree Shear
Our X-treme T ree Shear has a 5" cylinder that can generate up to 40 tons of shearing force. It is constructed with a 1" thick AR400 blade, which gives you the ability to cut up to 12" diameter trees and logs. It’s design forces trees to fall consistently to the right, allowing the operator to accurately position where the tree will land. X-treme Tree Shear Specs ø 12.00" Top View Side View
- Cuts 12" Diameter Trees
- 1" thick AR400 blade
- 40 tons of shearing force
A B C D P en Mfca gl kh b j d P NE F AG H J K LB C D m cDE HGF AB E A B dc FGH f ec d a b Quick Reference Guide PIN END SWING BOOM / POWER RAKE / SNOW BLOWER ATTACHMENT END 7 PIN 8 PIN 14 PIN 7 PINS ARE PRE-ASSEMBLED 6 WD / SWING ARM BACKHOE / TREE SHEAR / ANGLE BROOM / MUL TI-PURPOSE POWER RAKE PIN END ATTACHMENT END BACK BACK FRONT FRONT Quality Attachments PINS Resources and Diagrams (For Wire Harness)
