Meet your challenges head-on with 300 Series skid steer loaders from New Holland. The L320 is designed to make your workday more productive and comfortable with noteworthy dump height and reach, swift cycle times, and time-saving travel speeds.
| Model | L320 |
| Family | 300 Series Skid Steer Loaders |
| Main Category | Skid Steers |
| Gross HP | 67 HP (50 kW) |
| Operating Weight | 6470 lbs (2930 kg) |
| ROC @ 50% Tip | 2000 lbs (905 kg) |
| Lift Type | Vertical Lift |
New Holland Tier 4 Final engines use less fuel while still delivering a powerful 67 HP (50 kW) performance to the L320. The reliable hydraulic system delivers fast cycle times, raising in just 3.5 seconds and lowering in only 2.3 seconds. In-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional Ride Control and Self Level to make those long work days easier and more productive.
SAVE TIME BETWEEN JOBSITES The dual-range transmission on the L320 provides standard low-range travel speeds of up to 7.8 mph (12.5 kph) and 153 lbs/ft (208 Nm) @1800 RPM of peak torque power to save time on and between job sites. New Holland’s long 44.4 in (1128 mm) wheelbase gives you stability and smooth riding comfort. The newly available creep mode on EH models provides greater control for slow-speed operations…

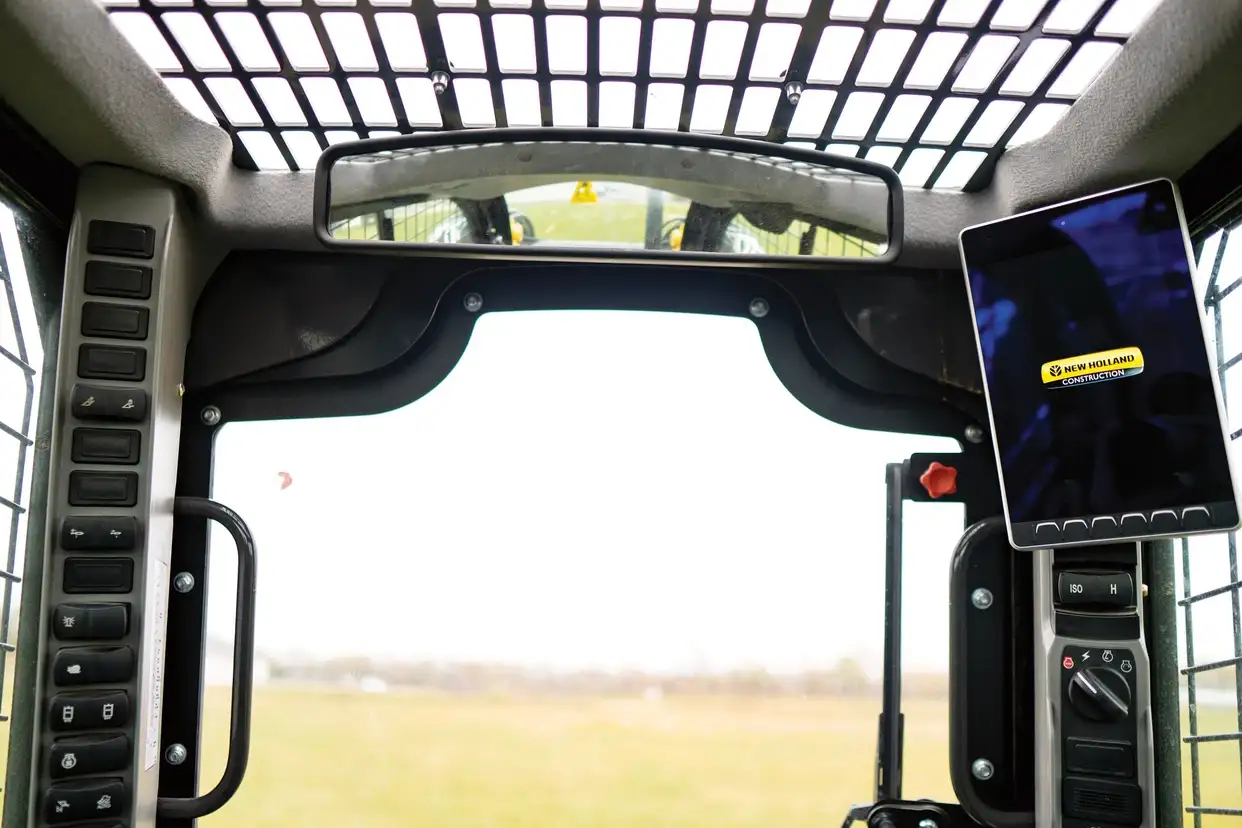

8” LCD MULTIFUNCTION DISPLAY MAKES OPERATION EASIER The LCD display with an integrated back-up camera helps you operate a 300 Series loader with greater ease and confidence. At 8 inches in size and mounted conveniently on the right forward post, the LCD display puts all the information and tools for greater productivity right where you need it. The display provides key operation data, including engine and performance…
OPERATOR COMFORT AND VISIBILITY THAT’S SECOND TO NONE The 300 Series cab is one of the widest in the industry, with more headroom and shoulder room to accommodate any operator. Visibility remains best in the business, with an unobstructed view to the back and a clear sightline to the loader bucket through the huge glass door. A see-through area on the cab roof provides the operator a clear view of the bucket at full…
