Our Heavy Duty Rock Grapple is great for sifting through dirt in order to remove rocks. With the tines set at 2–3/8″ apart, you pick up most everything but the dirt. You can also pick up large rocks, logs, brush or just about anything else with these grapples. We use twin 2″ bore by 10″ stroke cylinders rated at 4,000 psi on all of our grapples. The rock grapple comes standard with 3/4 x 6 cutting edge and is upgraded to 1 x 8 edge when optional teeth are added. Up to 65 HP. Cylinder Covers Standard.

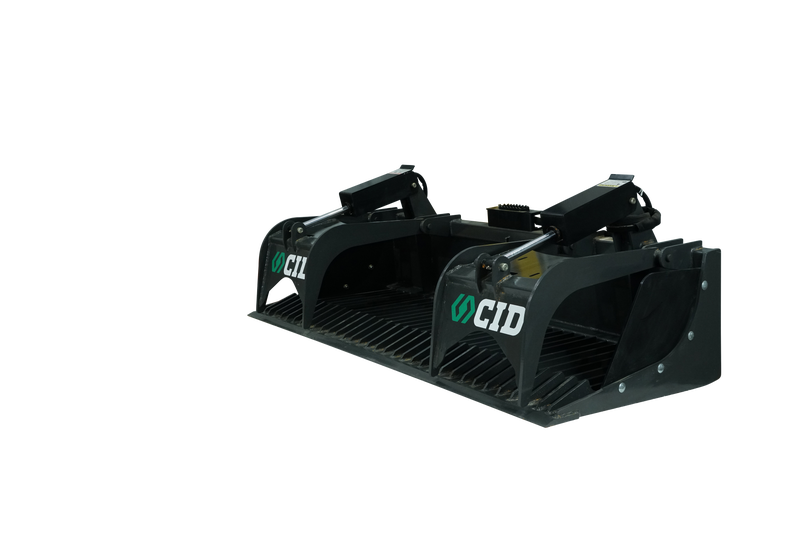

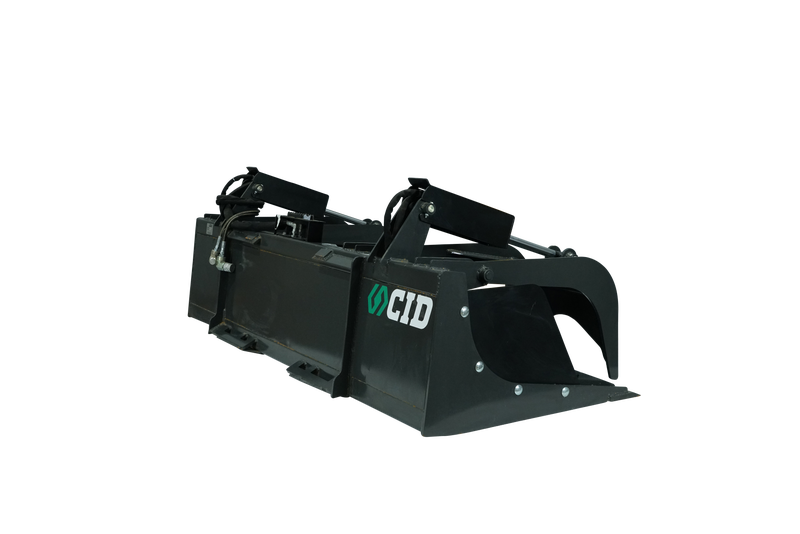

Rock Grapple Heavy Duty and X-treme
The CID Heavy Duty and X-treme Rock Grapples are great for sifting through dirt in order to remove rocks. The X-treme Grapple has fully welded front teeth, while the HD version uses a 3/4'' x 6'' cutting edge. This edge will be upgraded to a 1'' x 8'' when adding the optional teeth. The HD version has tine spacing set at 2 3/8'', while the X-treme has 3'' spacing. Our top quality 1/2" steel and 5/8" grapple tines provide all the strength you may need for removal of rocks, logs, and brush. Has twin cylinders rated at 4000 PSI. Heavy Duty Rock Grapple Specs X-treme Rock Grapple Specs Heavy Duty X-treme Duty
- HD tines set at 2 3/8” apart
- X-treme tines set at 3” apart
- Bolt on sides included on both models
- Optional Weld on Teeth for the HD model
- 2 x 10 cylinders
