Resources: Official Product Page | Literature | Manual

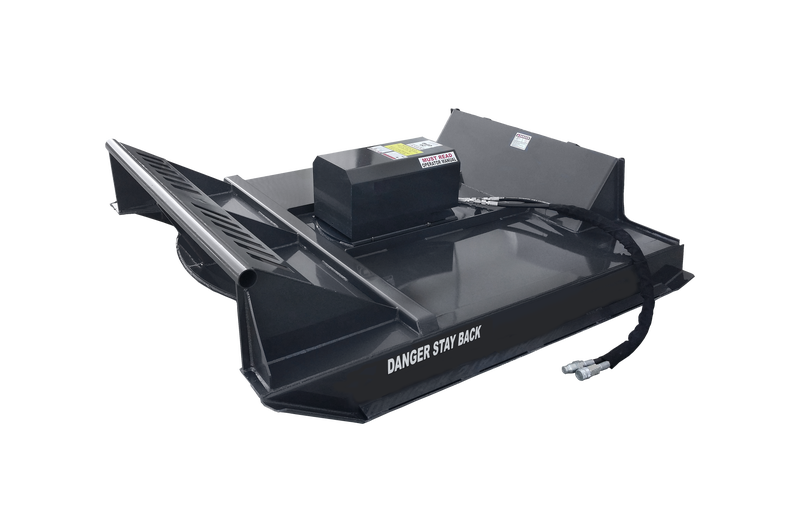

Our Heavy Duty Brush Cutter is designed for those who need to clear large areas of undergrowth and small trees. Available with a 60″ or 72″ mowing deck, it features an RC100 gearbox and a Parker motor. It also comes with a fabricated blade holder and bidirectional blades. A hydraulic flow of 14-20 GPM is required. Please note, the one-year warranty does not cover the blades or hoses.
Open Front Heavy Duty Brush Cutter 14-20 GPM
Heavy Duty Brush Cutter Our Heavy Duty Brush Cutter comes with a 60", 72", or 78" mowing deck. It features a RC100 gear box, Parker motor and fabricated blade holder with bidirectional blades. A flow of 14–20 gpm is required. The one year warranty does not cover the blades or hoses. Heavy Duty Open Front Brush Cutter Specs *2-Blade Holder
- 4" cutting capacity
- 3/16" deck with 3/8" A36 reinforced sides
- RC30 gear box
- Parker motor
- 2 blades made with 5/8” AR400
- Does not require a case drain
- Motor Upgrade available to 16-26 GPM on this
Resources and Diagrams MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? SBC60 STANDARD BRUSH CUTTER 60" 14-20 3" 2 No SBC72 STANDARD BRUSH CUTTER 72" 14-20 3" 2 No SOFBC60 STANDARD OPEN FRONT BRUSH CUTTER 60" 14-20 3" 2 No SOFBC72 STANDARD OPEN FRONT BRUSH CUTTER 72" 14-20 3" 2 No MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? HDBCNS60-2 HEAVY DUTY BRUSH CUTTER, 60", 2 BLADE 14-20 4" 2 No HDBCNS60-3 HEAVY DUTY BRUSH CUTTER, 60", 3 BLADE 14-20 4" 3 No HDBCNS72-2 HEAVY DUTY BRUSH CUTTER, 72", 2 BLADE 14-20 4" 2 No HDBCNS72-3 HEAVY DUTY BRUSH CUTTER, 72", 3 BLADE 14-20 4" 3 No HDBCNS78-2 HEAVY DUTY BRUSH CUTTER, 78", 2 BLADE 14-20 4" 2 No HDBCNS78-3 HEAVY DUTY BRUSH CUTTER, 78", 3 BLADE 14-20 4" 3 No MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? XBC60LF X-TREME 14-20 GPM BRUSH CUTTER, 60" 14-20 6" 3 No XBC60LFMT X-TREME 14-20 GPM BRUSH CUTTER, 60", MULCHING TEETH 14-20 6" 3 No XBC72LF X-TREME 14-20 GPM BRUSH CUTTER, 72" 14-20 6" 3 No XBC72LFMT X-TREME 14-20 GPM BRUSH CUTTER, 72", MULCHING TEETH 14-20 6" 3 No XBC78LF X-TREME 14-20 GPM BRUSH CUTTER, 78" 14-20 6" 3 No XBC78LFMT X-TREME 14-20 GPM BRUSH CUTTER, 78" MULCHING TEETH 14-20 6" 3 No XBC84LF X-TREME 14-20 GPM BRUSH CUTTER, 84" 14-20 6" 3 No XBC84LFMT X-TREME 14-20 GPM BRUSH CUTTER, 84" MULCHING TEETH 14-20 6" 3 No XBC60MF X-TREME 20-30 GPM BRUSH CUTTER, 60" 20-30 6" 3 No XBC60MFMT X-TREME 20-30 GPM BRUSH CUTTER, 60" MULCHING TEETH 20-30 6" 3 No XBC72MF X-TREME 20-30 GPM BRUSH CUTTER, 72" 20-30 6" 3 No XBC72MFMT X-TREME 20-30 GPM BRUSH CUTTER, 72" MULCHING TEETH 20-30 6" 3 No XBC78MF X-TREME 20-30 GPM BRUSH CUTTER, 78" 20-30 6" 3 No XBC78MFMT X-TREME 20-30 GPM BRUSH CUTTER, 78" MULCHING TEETH 20-30 6" 3 No XBC84MF X-TREME 20-30 GPM BRUSH CUTTER, 84" 20-30 6" 3 No XBC84MFMT X-TREME 20-30 GPM BRUSH CUTTER, 84" MULCHING TEETH 20-30 6" 3 No XBC162660 X-TREME 16-26 GPM BRUSH CUTTER,60" 16-26 6" 3 No XBC162660 X-TREME 16-26 GPM BRUSH CUTTER,60" MULCHING TEETH 16-26 6" 3 No XBC162672 X-TREME 16-26 GPM BRUSH CUTTER,72" 16-26 6" 3 No XBC162672 X-TREME 16-26 GPM BRUSH CUTTER,72" MULCHING TEETH 16-26 6" 3 No XBC162678 X-TREME 16-26 GPM BRUSH CUTTER,78" 16-26 6" 3 No XBC162678 X-TREME 16-26 GPM BRUSH CUTTER,78" MULCHING TEETH 16-26 6" 3 No XBC162684 X-TREME 16-26 GPM BRUSH CUTTER,84" 16-26 6" 3 No XBC162684 X-TREME 16-26 GPM BRUSH CUTTER,84" MULCHING TEETH 16-26 6" 3 No MODEL DESCRIPTION HYD FLOW (GPM) CUT CAPACITY (dia) # BLADES CASE DRAIN REQUIRED? XBC173060 X-TREME 17-30 GPM BRUSH CUTTER, 60" 17-30 6" 3 Yes XBC173060MT X-TREME 17-30 GPM BRUSH CUTTER, 60" MULCHING TEETH 17-30 7" 3 Yes XBC173072 X-TREME 17-30 GPM BRUSH CUTTER, 72" 17-30 7" 3 Yes XBC173072MT X-TREME 17-30 GPM BRUSH CUTTER, 72" MULCHING TEETH 17-30 7" 3 Yes XBC173078 X-TREME 17-30 GPM BRUSH CUTTER, 78" 17-30 7" 3 Yes XBC173078MT X-TREME 17-30 GPM BRUSH CUTTER, 78" MULCHING TEETH 17-30 7" 3 Yes XBC173084 X-TREME 17-30 GPM BRUSH CUTTER, 84" 17-30 7" 3 Yes Standard Duty Brush Cutters Heavy Duty Brush Cutters X-Treme Duty Brush Cutters X-Treme Duty Piston Cutters
