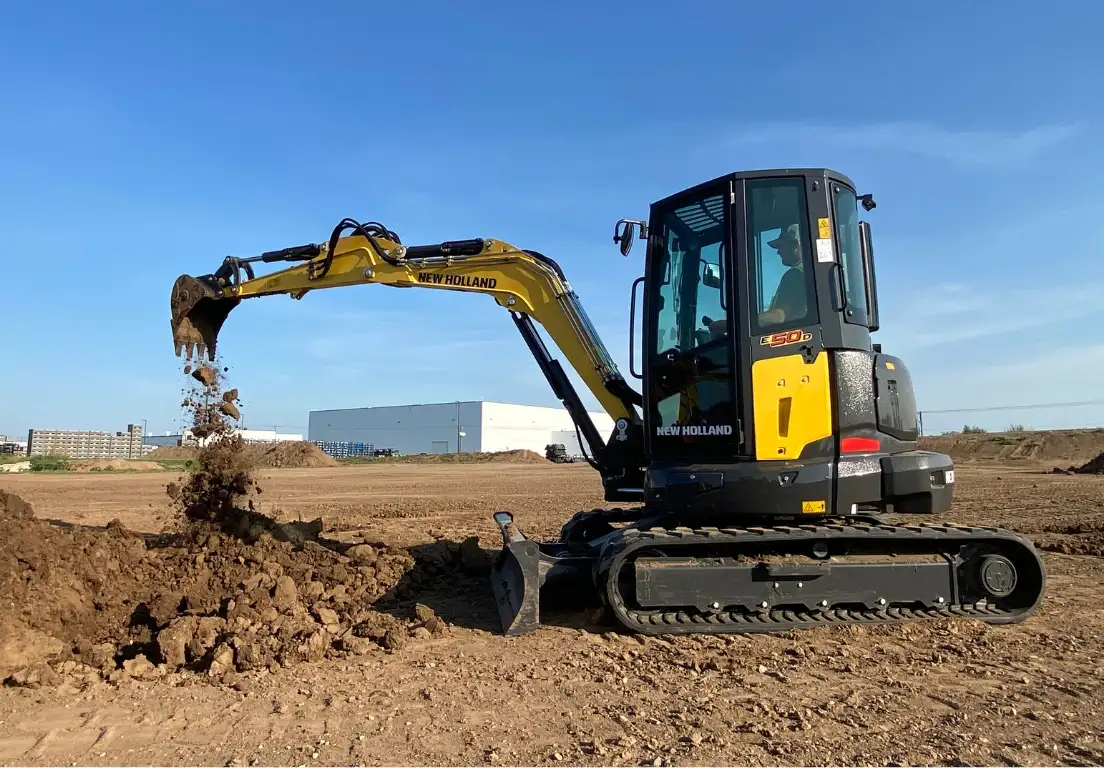

D Series mini excavators from New Holland Construction are built in-house and are designed for an improved operator experience, performance and jobsite efficiency. The E50D is a more capable, versatile machine tailored for construction crews, landscapers, utility contractors and municipalities looking to do more with a compact framework.
| Model | E50D |
| Family | D Series Mini Excavators |
| Main Category | Mini Excavators |
| Gross HP | 58.7 HP (43.8 kW) |
| Operating Weight – Cab/Canopy | 10,912 lbs (4950 kg) |
| Max Digging Depth – Std/Long Arm | 10 ft 11 in (3330 mm) / 11 ft 9 in (3580 mm) |
| Max Dump Height- Std/Long Arm | 12 ft 10 in (3920 mm) / 13 ft 5 in (4080 mm) |
MINI EXCAVATOR, BIG POWER The E50D is powered by a 58.7 hp (43.8 kW) Stage V-certified Kubota engine, known for durability, low emissions and fuel-saving features like Eco Mode, auto idle and a reversible cooling fan to keep radiators clear and engines running at optimal temperatures. This power is housed in a compact and easily transportable package, measuring 8 ft 5 in (2570 mm) in height and 18 ft 4 in (5580 mm) i…

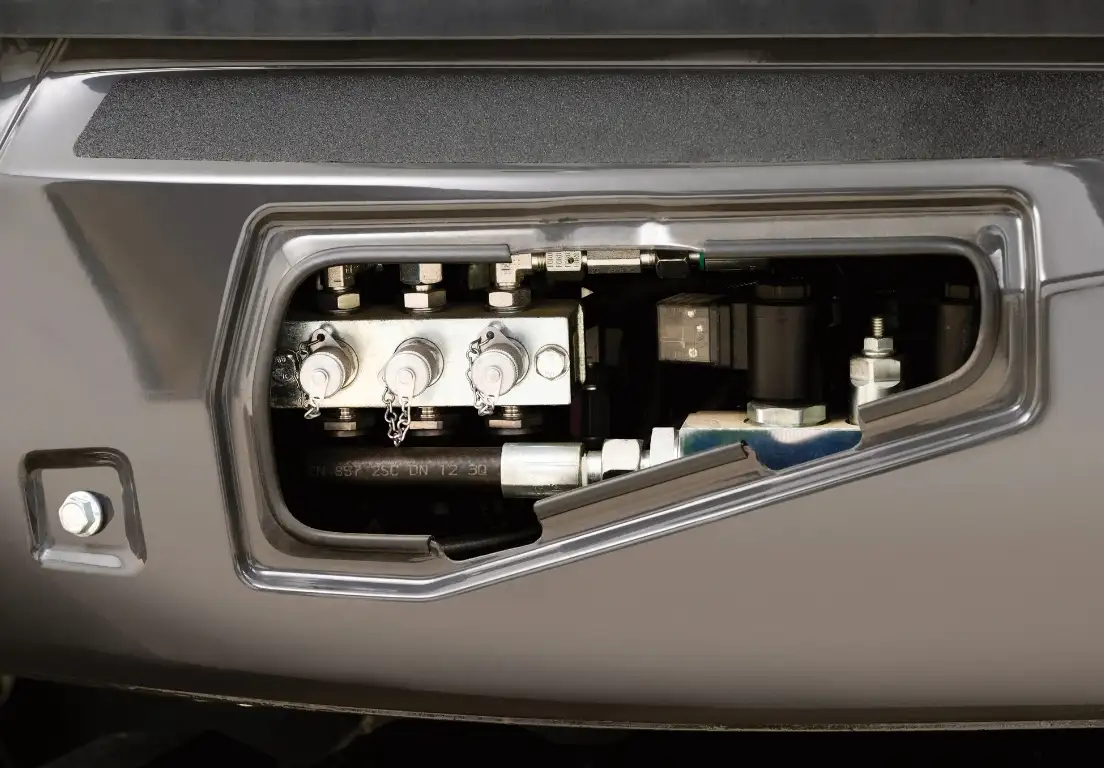

SIMPLE SERVICEABILITY For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E50D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.
