D Series mini excavators from New Holland Construction are built in-house and are designed for an improved operator experience, performance and jobsite efficiency. The E30D is a more capable, versatile machine tailored for construction crews, landscapers, utility contractors and municipalities looking to do more with a compact framework.
| Model | E30D |
| Family | D Series Mini Excavators |
| Main Category | Mini Excavators |
| Gross HP | 24.4 HP (18.2 kW) |
| Operating Weight – Cab/Canopy | 7143 lbs (3240 kg) / 6658 lbs (3020 kg) |
| Max Digging Depth – Std/Long Arm | 8 ft 8 in (2640 mm) / 9 ft 3 in (2830 mm) |
| Max Dump Height- Std/Long Arm | 10 ft 2 in (3110 mm) / 10 ft 8 in (3240 mm) |
MINI EXCAVATOR, BIG POWER The E30D is powered by a 24.4 hp (18.2 kW) Stage V-certified Kubota D1703-M engine, known for durability and low emissions. This power is housed in a compact and easily transportable package, measuring 8 ft 3 in (2520 mm) in height and 15 ft 8 in (4780 mm) in overall transport length. ARMED TO DIG ARMED TO DIG Specify your D Series compact excavator with the arm length to best suit your requ…

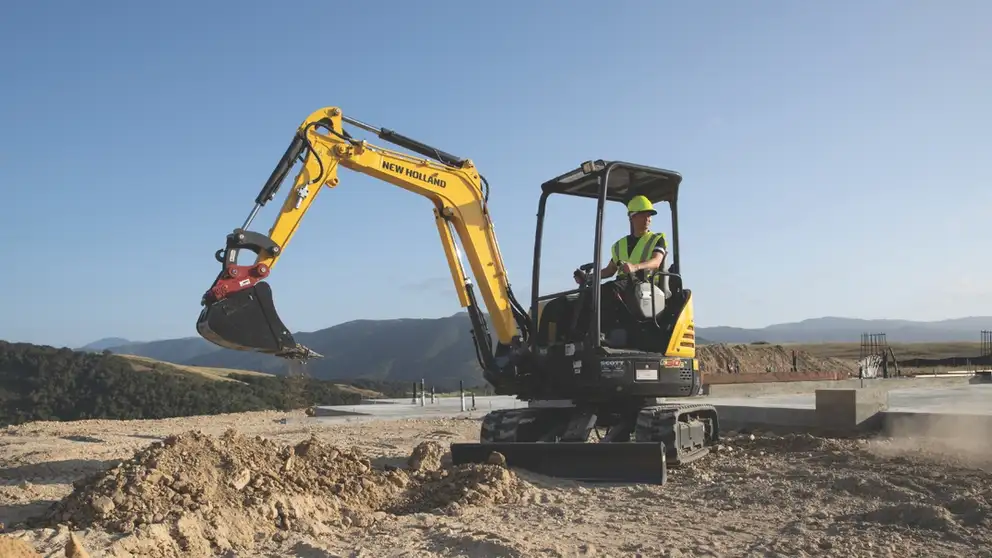

SIMPLE SERVICEABILITY For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E30D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.
