300 Series compact track loaders are reliable workhorses that deliver high performance in all conditions. Model C345 builds on the strength, visibility, power and smooth ride you’ve come to expect from New Holland CTLs with the addition of key enhancements that improve durability, operating ease and overall productivity.
| Model | C345 |
| Family | 300 Series Compact Track Loaders |
| Main Category | Compact Track Loaders |
| Gross HP | 90 HP (67 kW) |
| Operating Weight | 10,610 lbs (4813 kg) |
| ROC @ 50% Tip | 4500 lbs (2041 kg) |
| Lift Type | Vertical Lift |
POWER THROUGH TOUGH JOBS The reliable hydraulic system of the C345 delivers fast cycle times, raising in just 5.1 seconds and lowering in only 3.5 seconds, in addition to producing less noise and providing extra-smooth operation due to in-line hydraulic pumps. New Holland Tier 4 Final engines deliver powerful performance, use less fuel, are easy to maintain – decreasing operating costs – and still deliver powerful 90…

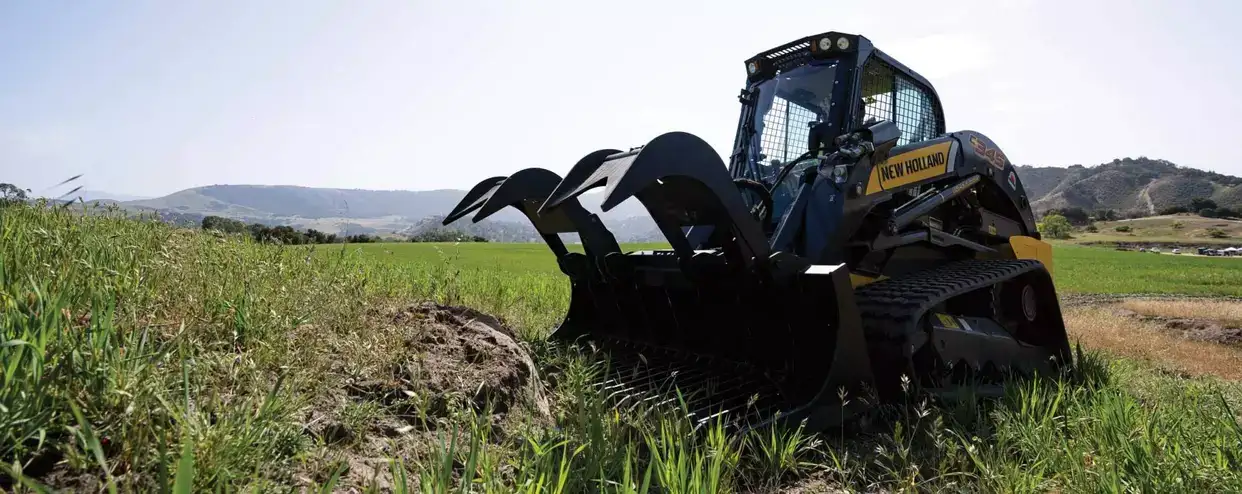

SMOOTH RIDE, EXTENDED LIFE The low-profile track undercarriage of the C345 that provides 9.6 inches (244 mm) of ground clearance makes cleanout a breeze, reduces noise and increases durability. The loader also yields a smoother ride with 64.5 inches (1639 mm) of track on ground, thanks to steel-embedded tracks rolling on the rubber instead of steel. Fewer moving parts than competitive designs mean less complexity and…

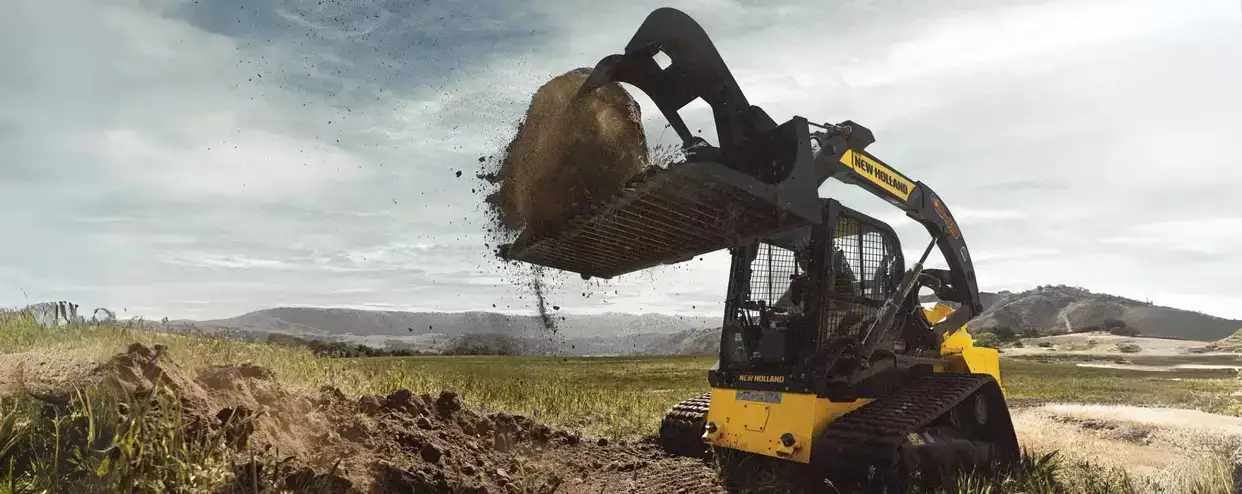

LIFT AND CARRY OPERATIONS The vertical lift linkage delivers up to 31.6 inches (802 mm) of dump height reach and a maximum dump height of over 100 inches (2568 mm) to precisely place loads in the center of high-sided truck boxes or hoppers. With a full rated operating load of 9,000 lbs (4091 kg), 4,500 lbs (2045 kg) at 50% tip and 3,150 lbs (1432 kg) at 35% tip, the C345 is optimized for lift-and-carry operations, al…
8” LCD MULTIFUNCTION DISPLAY MAKES OPERATION EASIER The LCD display with an integrated back-up camera helps you operate a 300 Series loader with greater ease and confidence. At 8 inches in size and mounted conveniently on the right forward post, the LCD display puts all the information and tools for greater productivity right where you need it. The display provides key operation data, including engine and performance…
