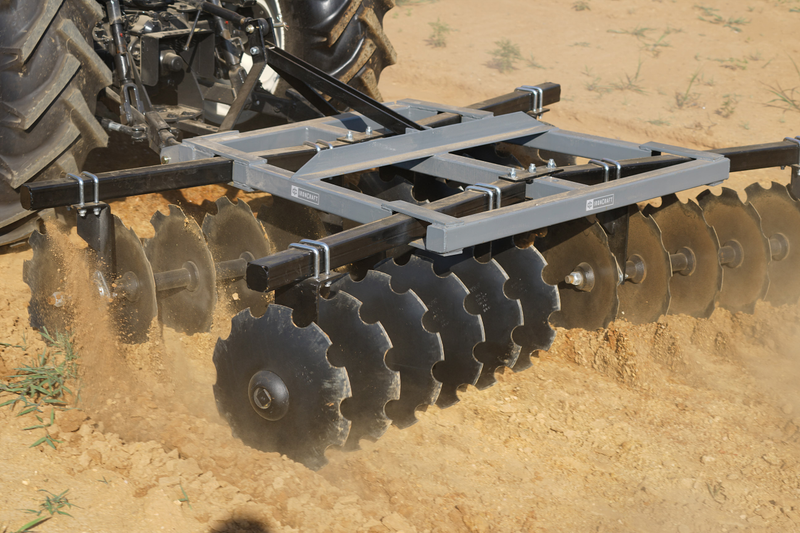

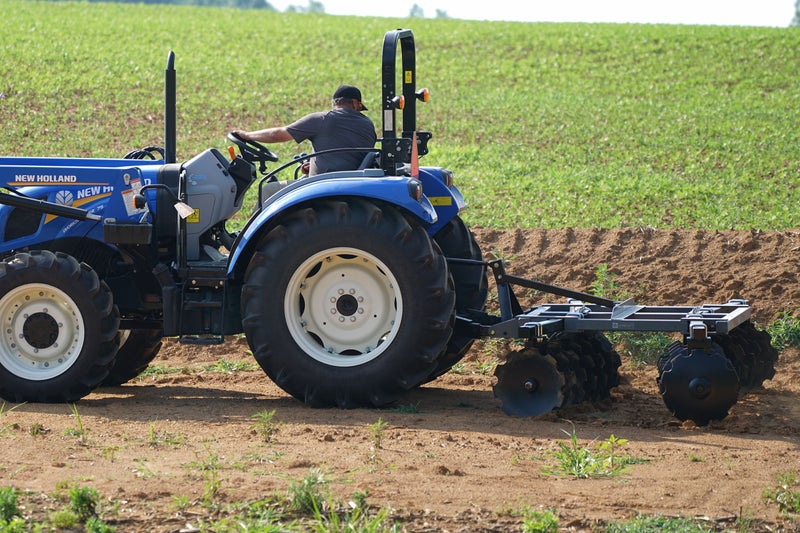

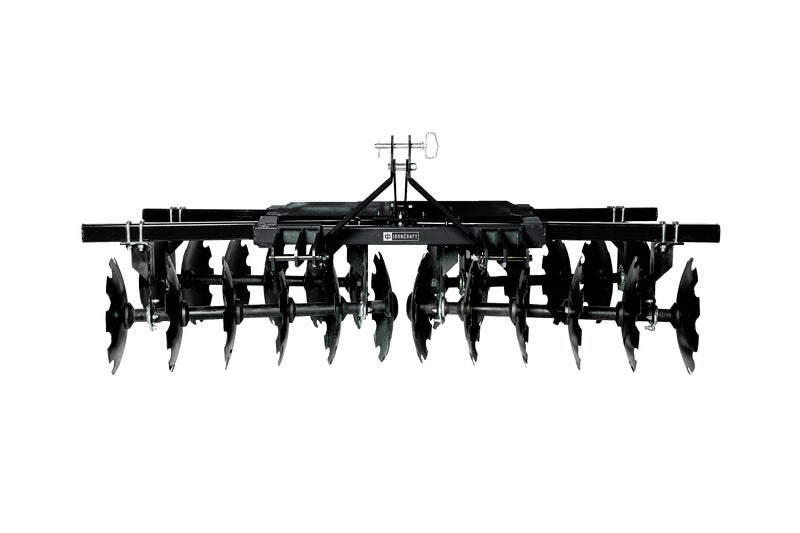

These Heavy-Duty Tubing Disc Harrows are designed with notched discs which easily break up and redistribute cultivated topsoil or prepare seed beds and fields for planting. They will easily meet the needs of commercial landscapers, farms, ranches, and construction applications. They are available in 72”, 92”, and 108” cutting widths, and are designed for a Category I or Category II quick hitch. Three different models are offered for tractors ranging from 35 to 80 hp.
Model Specs
7416
| Product Family | 7400 Series |
| Product | 7416 |
| Description | 6' Heavy Duty Tube Frame Disc Harrow |
| Notes | Unit has sealed bearings |
| HP Required | 35 – 60 |
| Working Width | 72" |
| # of Disc Blades | 16 |
| Disc Blade Size | 20" |
| Disc Blade Spacing | 9" |
| Weight (lbs) | 872 lbs |
| Hitch | Cat 1 |
7420
| Product Family | 7400 Series |
| Product | 7420 |
| Description | 7-1/2' Heavy Duty Tube Frame Disc Harrow |
| Notes | Unit has sealed bearings |
| HP Required | 50 – 70 |
| Working Width | 92" |
| # of Disc Blades | 20 |
| Disc Blade Size | 20" |
| Disc Blade Spacing | 9" |
| Weight (lbs) | 1019 lbs |
| Hitch | Cat 1 |
7424
| Product Family | 7400 Series |
| Product | 7424 |
| Description | 9' Heavy Duty Tube Frame Disc Harrow |
| Notes | Unit has sealed bearings |
| HP Required | 60 – 80 |
| Working Width | 108" |
| # of Disc Blades | 24 |
| Disc Blade Size | 20" |
| Disc Blade Spacing | 9" |
| Weight (lbs) | 1250 lbs |
| Hitch | Cat 1 & 2 |
