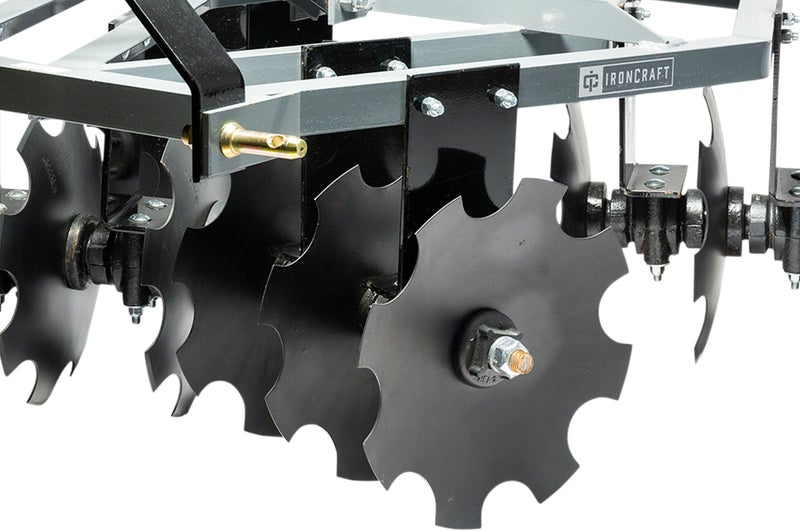

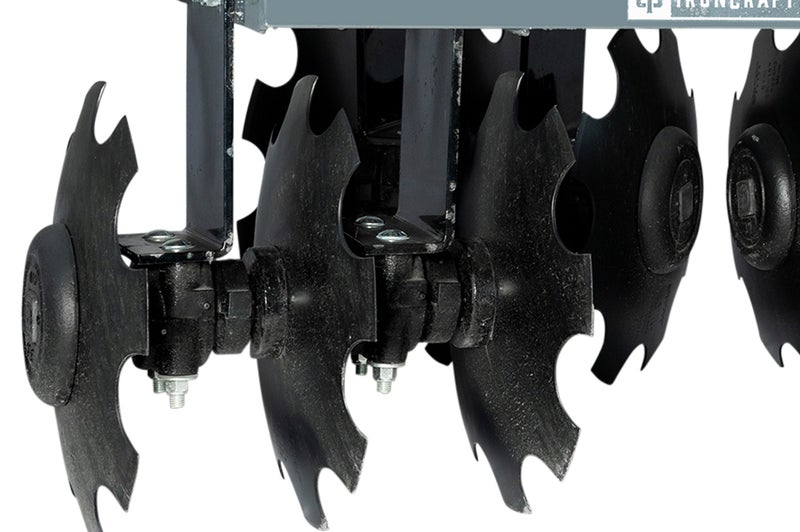

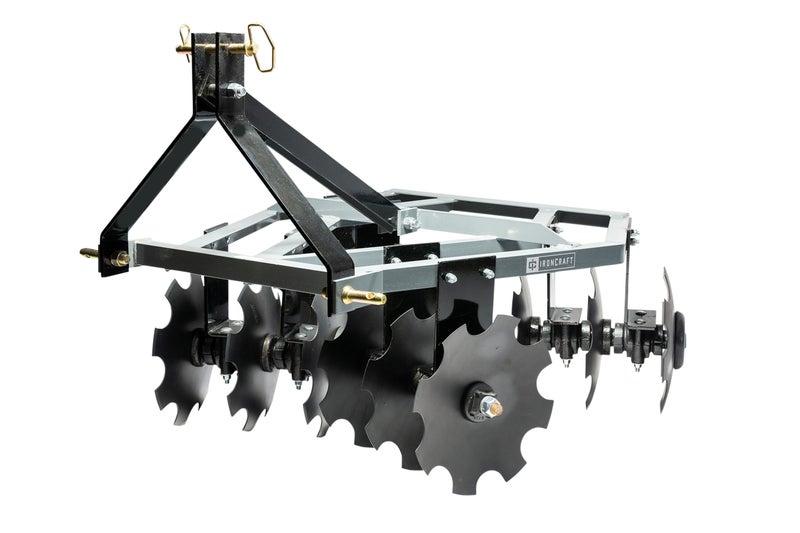

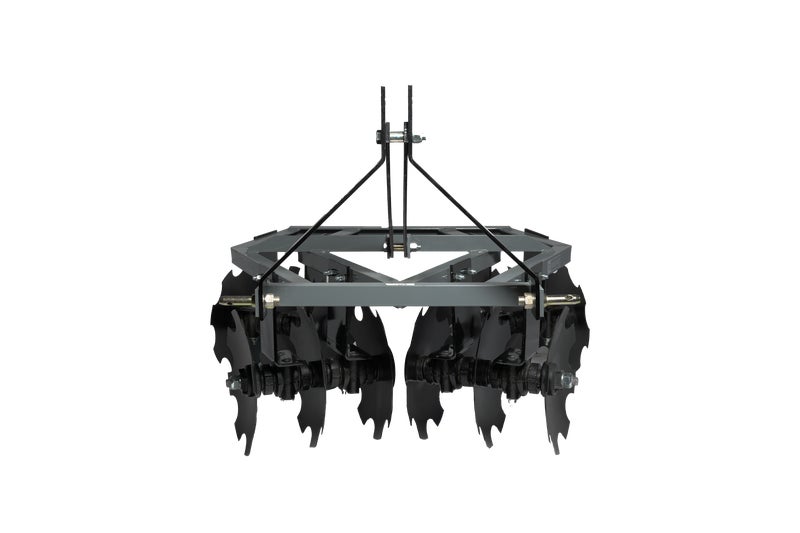

These Angle Frame Disc Harrows are our basic disc harrow, best suited for residential landscaping, small gardens, nurseries, hobby farms, and wild game food plots. They are designed to open and break up the soil surface for prepping seedbeds for planting. They are available in 48” and 60” cutting widths. They feature notched discs which easily break up and redistribute cultivated topsoil, and are designed for a Category I quick hitch. We offer two different models designed for tractors ranging from 20 to 40 hp.
Model Specs
7112
| Product Family | 7100 Series |
| Product | 7112 |
| Description | 4' Angle Frame Disc Harrow |
| Notes | Unit has cast bearings |
| HP Required | 20 – 30 |
| Working Width | 48" |
| # of Disc Blades | 12 |
| Disc Blade Size | 16" |
| Disc Blade Spacing | 7-1/2" |
| Weight (lbs) | 391 lbs |
| Hitch | Cat 1 |
7116
| Product Family | 7100 Series |
| Product | 7116 |
| Description | 5' Angle Frame Disc Harrow |
| Notes | Unit has cast bearings |
| HP Required | 25 – 40 |
| Working Width | 60" |
| # of Disc Blades | 16 |
| Disc Blade Size | 16" |
| Disc Blade Spacing | 7-1/2" |
| Weight (lbs) | 502 lbs |
| Hitch | Cat 1 |
