Resources: Official Product Page | View Manual

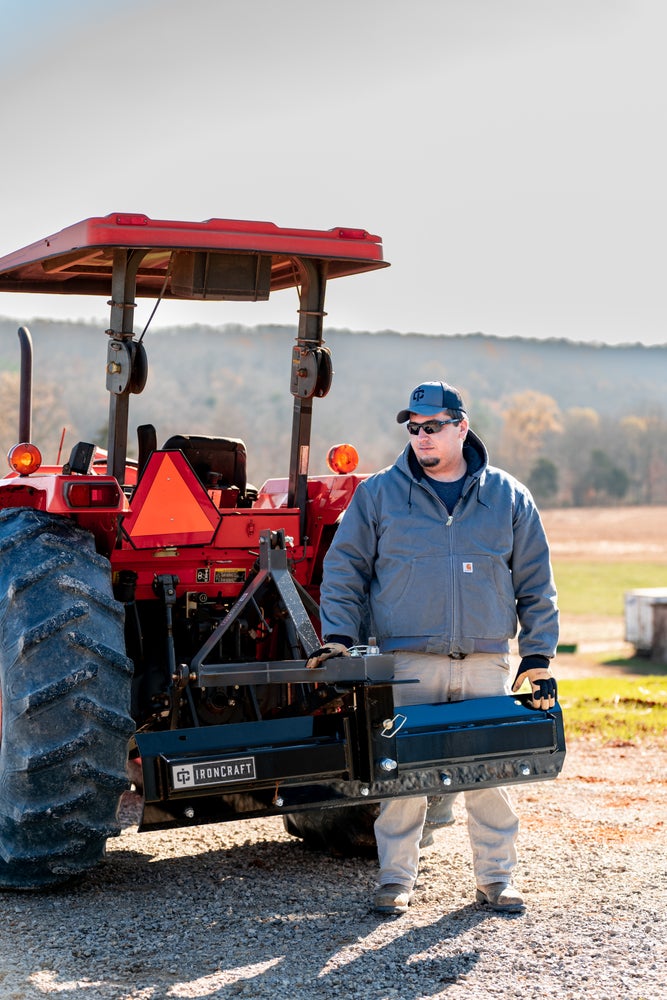

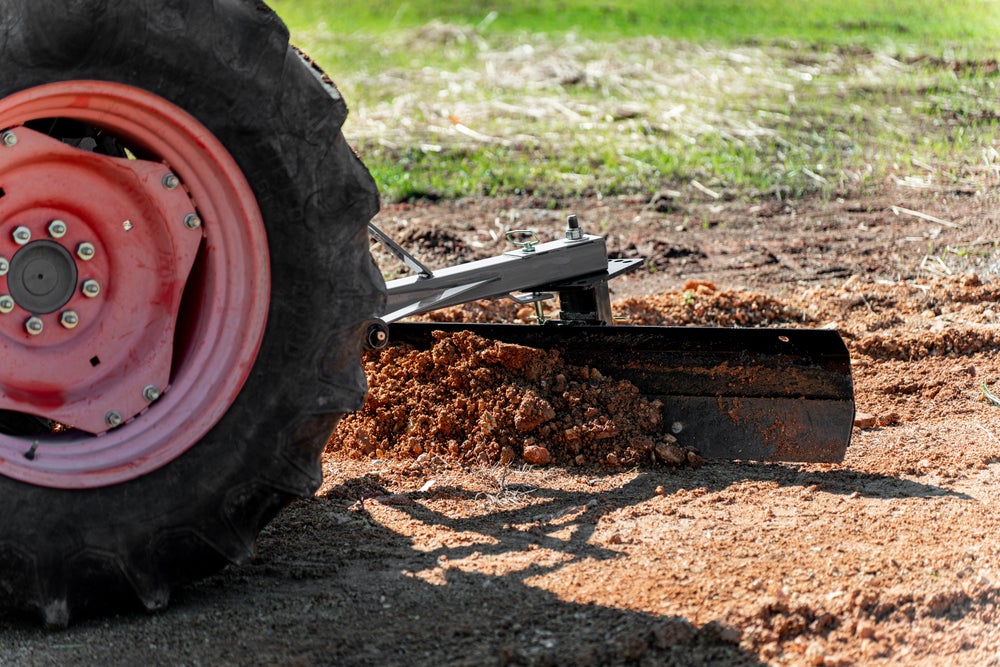

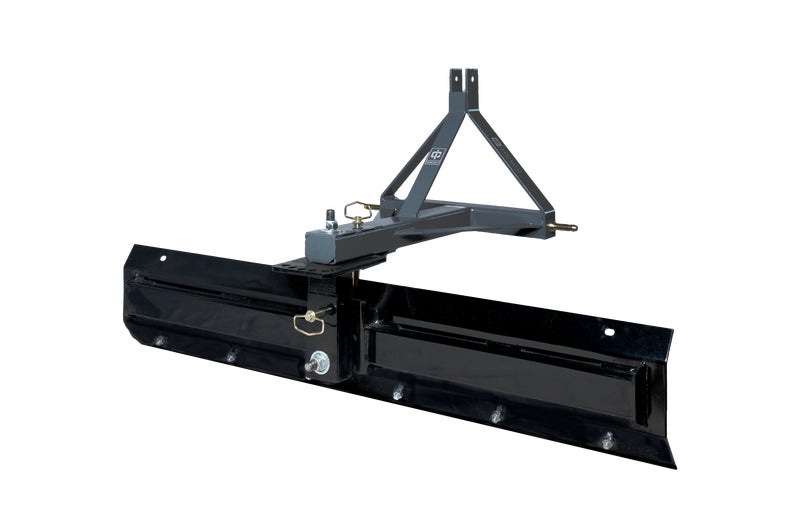

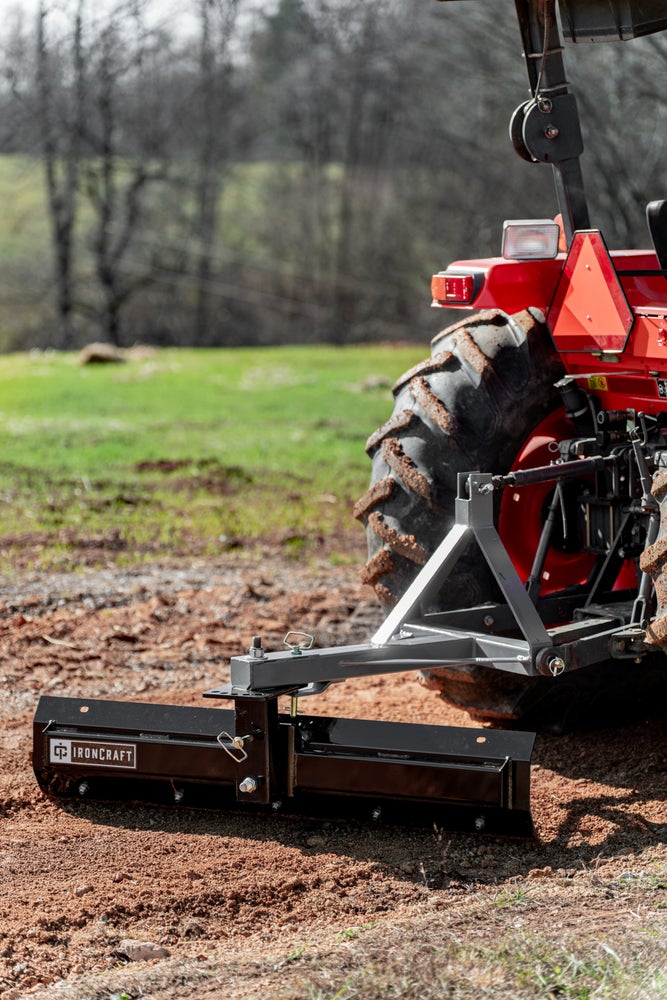

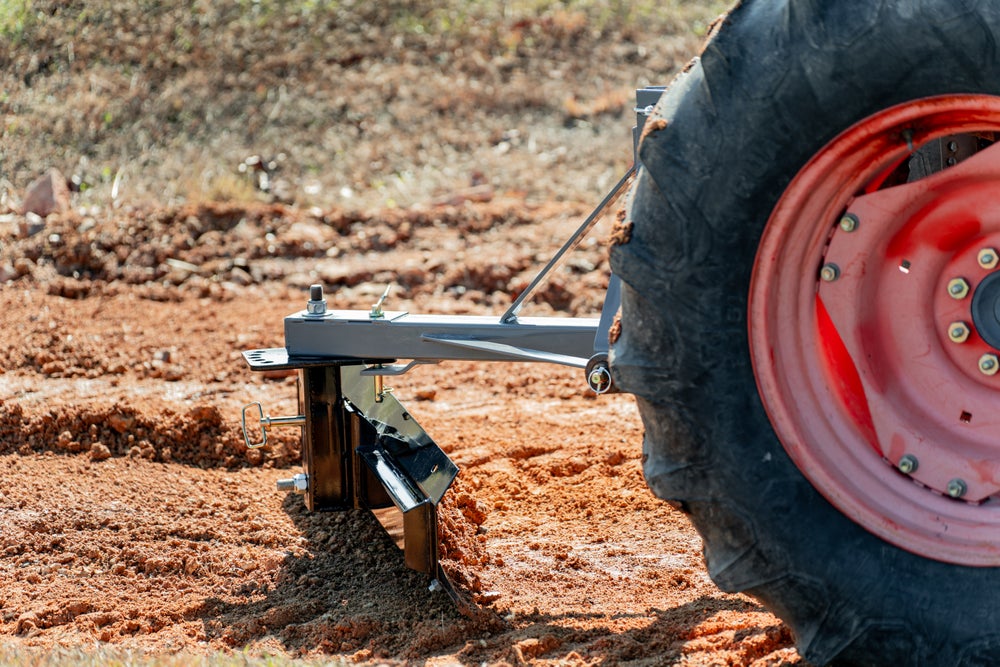

These Standard-Duty Grader Blades offer ease of moving topsoil, gravel, snow, and other similar materials. They are ideal for basic land grading, leveling, or backfilling needs and are designed to work with 15 to 40 hp tractors. They feature a five-position angle adjustment, a three-position tilt adjustment, and are available in four different working widths from 48” to 84”. These models are Category I quick hitch compatible.
Model Specs
4304
| Product Family | 4300 Series |
| Product | 4304 |
| Description | 4' Standard Duty Grader Blade |
| HP Required | 15 – 30 |
| Working Width | 48" |
| Height | 13" |

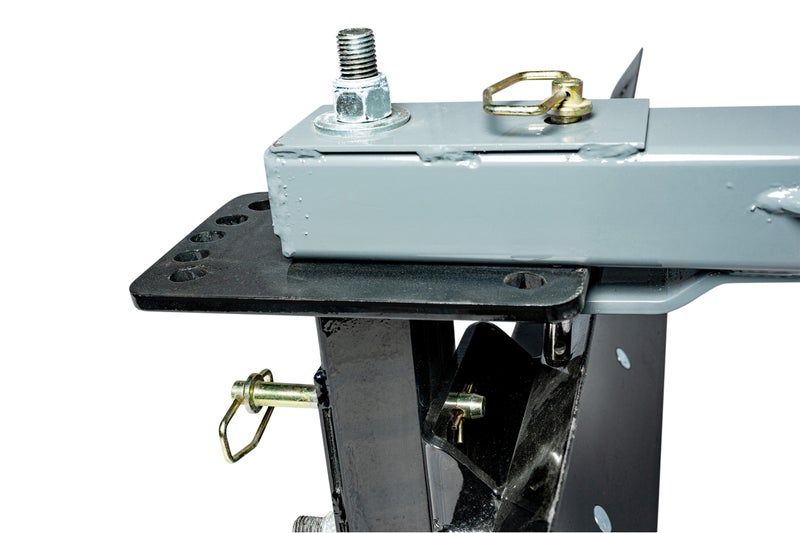

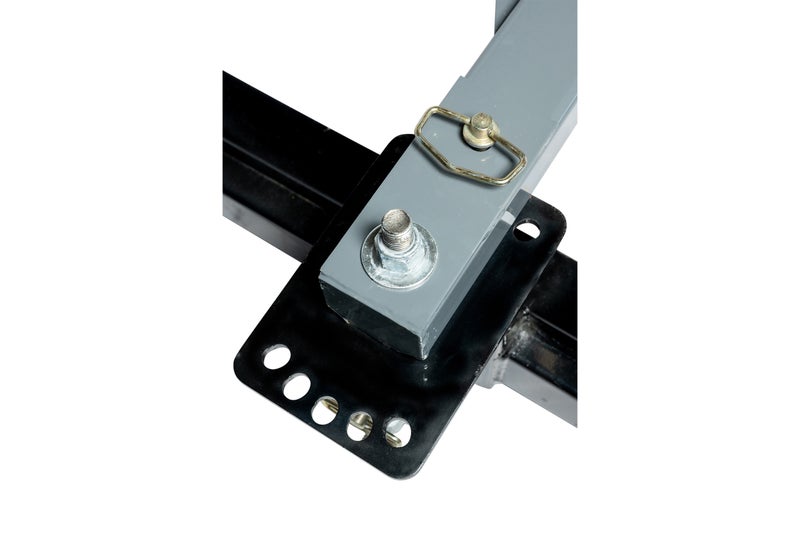

| Angle Adjustment | 5 position, Forward and Reverse |

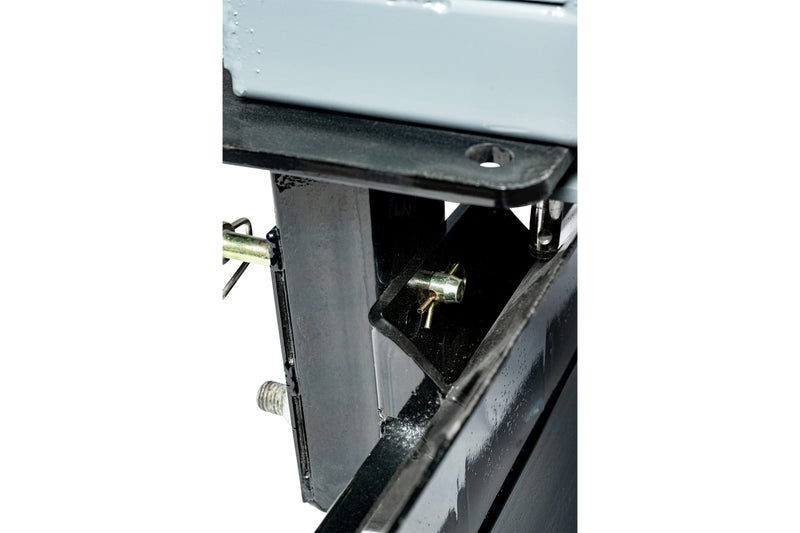

| Tilt Adjustment | 3 Position |
| A-frame Material | 3/8" |
| Cutting Edges | 6" |
| Weight (lbs) | 178 lbs |
| Hitch | Cat 1 |
4305
| Product Family | 4300 Series |
| Product | 4305 |
| Description | 5' Standard Duty Grader Blade |
| HP Required | 15 – 35 |
| Working Width | 60" |
| Height | 13" |
| Angle Adjustment | 5 position, Forward and Reverse |
| Tilt Adjustment | 3 Position |
| A-frame Material | 3/8" |
| Cutting Edges | 6" |
| Weight (lbs) | 199 lbs |
| Hitch | Cat 1 |
4306
| Product Family | 4300 Series |
| Product | 4306 |
| Description | 6' Standard Duty Grader Blade |
| HP Required | 15 – 40 |
| Working Width | 72" |
| Height | 14" |
| Angle Adjustment | 5 position, Forward and Reverse |
| Tilt Adjustment | 3 Position |
| A-frame Material | 3/8" |
| Cutting Edges | 6" |
| Weight (lbs) | 252 lbs |
| Hitch | Cat 1 |
4307
| Product Family | 4300 Series |
| Product | 4307 |
| Description | 7' Standard Duty Grader Blade |
| HP Required | 15 – 40 |
| Working Width | 84" |
| Height | 14" |
| Angle Adjustment | 5 position, Forward and Reverse |
| Tilt Adjustment | 3 Position |
| A-frame Material | 3/8" |
| Cutting Edges | 6" |
| Weight (lbs) | 276 lbs |
| Hitch | Cat 1 |
